INSTALLATION GUIDE
2 IN 1 POWER METER & 10MW VISUAL FAULT LOCATOR
TECHNICAL SPECIFICATION
Wavelength range (nm)
Detector type
Measurement range (dBm)
Accuracy (dB)
Calibrated wavelength (nm)
Resolution (dB)
Output power (VFL) (mW)
Estimated range (Km)
Transmission frequency
Operating temperature (°C)
Storage temperature (°C)
Automatic shutdown (min)
Operating time (h)
Power supply
Weight & Dimensions
850 ~ 1700
InGaAs
-50~ +26
± 0.3
850, 1300, 1310, 1490, 1550, 1625
0,05
10
10
CW/2Hz
-10~+60
-25~+70
10
130 hours
3 batteries AAA 1.5 volts/
Micro-USB
70g (without batteries) -
128 x 52 x 22 mm
TED

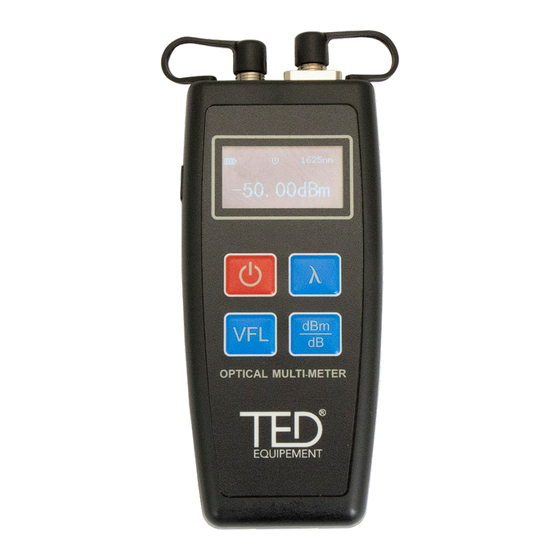

33005 2 in 1 Power meter is a compact & accurate
®
tester with built-in 10mW visual fault locator.
MAIN FEATURES
• High accuracy, wide dynamic range
• Ergonomic pocket-sized design
• High-definition LED screen
• 2.5mm adaptors interface FC/SC/ST
• Wavelenght memory function
• Micro-USB
• Energy saving automatic shutdown
• 6 Wavelenghts
• 3 measurments units : dBm/dB/mW
APPLICATIONS
• Measures of power loss on an optical fiber cable
• Help to identify a potential fault on fiber optic cable
Developing tomorrow's networks, today
www.telenco.com
Advertisement
Summary of Contents for Telenco TED 33005
- Page 1 Micro-USB • Measures of power loss on an optical fiber cable 70g (without batteries) - Weight & Dimensions 128 x 52 x 22 mm • Help to identify a potential fault on fiber optic cable Developing tomorrow’s networks, today www.telenco.com...
- Page 2 INSTALLATION GUIDE - 2 IN 1 POWER METER & 10MW VISUAL FAULT LOCATOR 2 / 3 FEATURES Power meter adaptor VFL adaptor Battery indicator Wavelength indicator HD LED Display ON/OFF power - Wavelength selector Automatic shutdown control Units of measurement selector dB, dBm, mW + reset VFL mode •...
- Page 3 Replace the batteries + switch ON/OFF Data remains unchanged Dirty adaptor Check the adaptor & use the cleaning pen Low laser output Batteries are low Replace the batteries To be recycled in accordance with current regulations. Developing tomorrow’s networks, today www.telenco.com...
