  • Page 1 1256 art. T E C H N I C A L M A N U A L Join us in taking care of our planet...

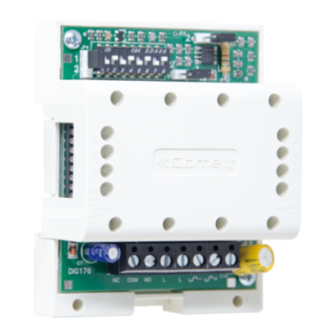

  • Page 2 Simplebus 1 and Simplebus 2 actuator relay Smart device for use in all Simplebus systems, to control a built-in relay (12-24 VAC/VDC / 10A max.) for general use. Power supply: 12 VAC or 20 VDC. Distribution terminal for video signal art. 1214/2C supplied. Think before you Help us to save the planet.

  • Page 3: Table Of Contents

    Connections Wiring diagrams Installing art. 1256 in audio-only systems Installing art. 1256 for “Secondary door lock-release” in Simplebus 2 systems Installing art. 1256 in Kit and Simplebus 2 systems Secondary door lock-release with art. 1256 branched after art. 4888, 4888C Secondary door lock-release with art.

  • Page 4: Technical Specifications

    | Table of contents | Technical specifications 66 mm 35 mm COMPATIBLE SYSTEMS Simplebus 2 audio/video with power supply unit art. 4888C Yes Simplebus 2 audio/video with power supply unit art. 1210/1210A Simplebus 2 audio/video kit with power supply unit art. 1209 Yes Simplebus 2 audio with power supply unit art.

  • Page 5: Functions

    1256 is triggered and closes the C.NO contact, for example to activate independently using a specific command: lights, CCTV alarm contacts, vehicle barriers, entrances without an external entrance panel or other devices. All art. 1256 modules set for use with this function are activated simultaneously when the button on the door-entry phone/door entry monitor is pressed.

  • Page 6: Activation On Actuator Button With Code

    With the jumper set as shown in the figure, art. 1256 is triggered and closes the C.NO contact if the button pressed on the door- entry phone/door entry monitor has been programmed to send the actuator control with the code of the actuator in question.

  • Page 7: Wiring Diagrams

    | Table of contents | Wiring diagrams Installing art. 1256 in audio-only systems 1256 1200 12V~ 230V~ 12V/24V AC/DC - 10A 2708W/A 1256 1200 12V~ 230V~ 2708W/A 12V/24V AC/DC - 10A 1256 1200 12V~ 230V~ 12V/24V AC/DC - 10A 1622...

  • Page 8: Installing Art. 1256 For "Secondary Door Lock-Release" In Simplebus 2 Systems

    | Table of contents | Installing art. 1256 for “Secondary door lock- 1216 release” in Simplebus 2 systems 1214/2C 2719W P4 C4 1214/2C 1214/2C 1 2 3 4 5 6 1214/2C 1195 1256 1214/2C 12 VAC/VDC 18 Ω MAX 4888C...
  • Page 9 | Table of contents | 1216 1214/2C 2738W/A 6750W 1214/2C 1214/2C 1 2 3 4 5 6 1214/2C 1195 1256 NC C NO L 1214/2C 12 VAC/VDC 18 Ω MAX 4888C ~230V 1595 120-230 V 12 VAC/VDC UT1020 18 Ω MAX...

  • Page 10: Installing Art. 1256 In Kit And Simplebus 2 Systems

    | Table of contents | Installing art. 1256 in Kit and Simplebus 2 systems 1216 1214/2C 1214/2C 1200 1256 12V~ 230V~ 12V/24V AC/DC - 10A 1 2 3 4 5 6 1214/2C 1214/2C 1200 1256 12V~ 230V~ 12V/24V AC/DC - 10A...

  • Page 11: Secondary Door Lock-Release With Art. 1256 Branched After Art. 4888, 4888C

    | Table of contents | Secondary door lock-release with art. 1256 branched after art. 4888, 4888C 1214/2C OUT OUT 12V/24V AC-DC - 10A 4888 4888C 1256 ~230V 4680 - 4680C UT1020 - UT1020B - UT1020W Secondary door lock-release with art. 1256 branched before art. 4888, 4888C...

  • Page 12: Art. 1256 Branched On The Simplebus 2 External Entrance Panel

    | Table of contents | Art. 1256 branched on the Simplebus 2 external entrance panel 1214/2C 1210A 1210 230V 1214/2C 0 2 1 4 2 1195 12V/24V AC-DC - 10A 12 VAC/VDC UT2020 18 Ω MAX 1256 UT2020W R GND...

  • Page 13: User Codes

    | Table of contents | User codes Code DIP ON 1,2,3,4,5 1,3,4,5,6 1,2,4,5,7 1,4,5,6,7 1,2,3,5,8 1,3,5,6,8 1,2,5,7,8 2,3,4,5,6 3,4,5,7 2,4,5,6,7 4,5,8 2,3,5,6,8 3,5,7,8 1,2,3,4,5,6 1,3,4,5,7 1,2,4,5,6,7 1,4,5,8 1,2,3,5,6,8 1,3,5,7,8 2,3,4,5,7 3,4,5,6,7 2,4,5,8 4,5,6,8 2,3,5,7,8 1,2,6 1,2,3,4,5,7 1,3,4,5,6,7 1,2,4,5,8 1,4,5,6,8 1,2,3,5,7,8 2,3,4,5,6,7 3,4,5,8 2,4,5,6,8...
  • Page 14 C E R T I F I E D M A N A G E M E N T S Y S T E M S w w w . c o m e l i t g r o u p . c o m 7th edition 05/2024 Via Don Arrigoni, 5 - 24020 Rovetta (BG) - Italy code 2G40002907...
