JEHNERT SOUND DESIGN 65940 Assembly Instructions Manual

Ford Transit YOM 2018
Front system
Front system Ford Transit from 2018
3-way sound system
Ford Transit YOM 2018

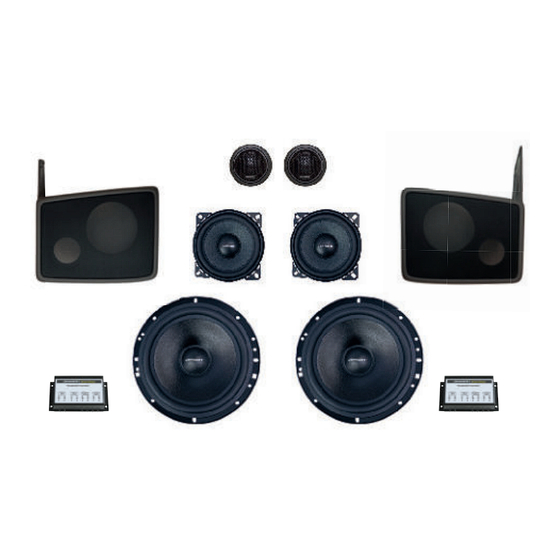

Packing List:
1x mid-high module incl. acoustic fabric cover (left & right), covered
2x „XE26" neodymium softdome tweeter Ø 26mm (pre-mounted in molded part)
2x „XE100" midrange driver Ø 100mm (pre-mounted in molded part)
2x „XM165" low-midrange driver „Power-Woofer" Ø 165mm pre-mounted
2x mounting ring for „XM165" 10165-MR
2x mid-high crossover incl. cable assembly
2x low frequency crossover incl. cable assembly
Mounting kit mid-tweeter:
8x pan-head screw 3.9 x 13
Mounting kit woofer crossovers:
2x: Felt self-adhesive 5x7cm,
2x plastic disc black
Installation note:
To avoid vibration noise, secure all wiring harnesses with insulating tape or similar. Insulation of the vehicle doors is strongly recom-
mended.
Radio Adjustment Notice:
To achieve the best sound, all settings on the radio (bass, treble, loudness, etc.) should be set to
should be set to zero or neutral.
Assembly instructions
Status: 02.11.2023
Art.-No. 65940
Optional accessories:
- Vehicle specifi c radio connection cable
for factory Ford radio
- Remote control to control the subwoofer
and to regulate the sound setup
- Bluetooth function integrated in the amplifi er
- Rocker switch
