BTKit-02 Installation Instructions
Tools Required: Phillips head screwdriver
Parts List:

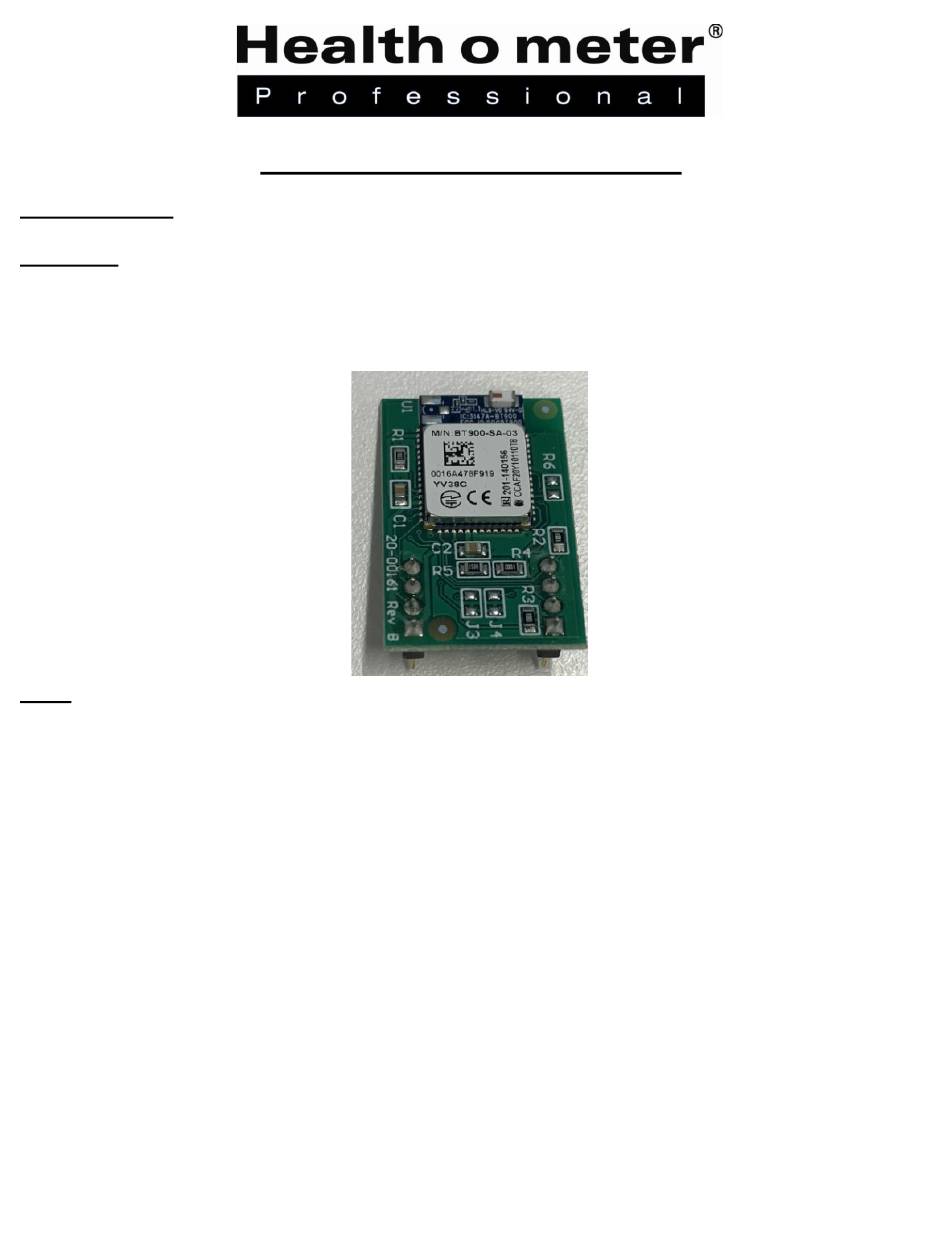

• Green wireless module, for installation into the scale
• USB dongle, 1ft extender cable, for use when connecting to external device
• "Enabled with Pelstar
®
Wireless Technology" Label, to be applied to scale after module install
Note: If multiple kits were purchased, ensure to keep paired components together.
The wireless module from the kit is specifically paired to the dongle from the kit and
not interchangeable with other modules.
82-00041 BTKIT-02 Installation Instructions REV20231017
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the BTKit-02 and is the answer not in the manual?

Questions and answers

Summary of Contents for Health O Meter BTKit-02

  • Page 1 Wireless Technology" Label, to be applied to scale after module install Note: If multiple kits were purchased, ensure to keep paired components together. The wireless module from the kit is specifically paired to the dongle from the kit and not interchangeable with other modules. 82-00041 BTKIT-02 Installation Instructions REV20231017...
  • Page 2 PCB, which is mounted on the back case of the display head. Remove the keypad cable by pushing the black housing away from the connector pins. 82-00041 BTKIT-02 Installation Instructions REV20231017...
  • Page 3 “-BT” to the model number on the product label. **When applying the label, ensure the BT device number matches the serial number on the included USB dongle. The BT device number and serial number must match when connecting to an external device. 82-00041 BTKIT-02 Installation Instructions REV20231017...
  • Page 4 Make sure that each of the options, OPT1 to OPT11, are the same as shown below then press OFF key to turn off the scale head. Note: There is no OPT9 option in the program mode. ® For further assistance, contact Health o meter Professional Scales Technical Support at 1-800-638-3722. 82-00041 BTKIT-02 Installation Instructions REV20231017...
  • Page 5 Data validation must be confirmed by the user from the scale to the receiving device to ensure accurate data collection. ® ® *Bluetooth is a registered trademark of the Bluetooth Special Interest Group. While Health o meter Professional scales use proprietary ® technologies for reliably communicating with other devices, it can also be used with many Bluetooth interfaces.
  • Page 6 The USB dongle from the kit is specifically paired to the wireless module from the same kit and not interchangeable with other dongles. USB wireless dongle SERIAL NUMBER AND BT DEVICE NUMBER MUST MATCH TO ENABLE WIRELESS COMMUNICATION. 82-00041 BTKIT-02 Installation Instructions REV20231017...
  • Page 7 Follow the prompts in the Service Tool to activate the weight scale license. c) Activate the license by entering the authorization code A66FF29A3B2F85E1 ® ® *Note: Weight scale communication is already enabled on Welch Allyn Connex Spot monitors. 82-00041 BTKIT-02 Installation Instructions REV20231017...
  • Page 8 Bluetooth interfaces. To see if your Bluetooth device is compatible with the Health o meter® Professional protocols, follow these steps. 1. From the Start Menu, go to Settings. 2. In the Settings Home, Click on "Bluetooth and Devices".
  • Page 9 4. In the "Devices" window, scroll down to the section titled "Device settings" and set "Bluetooth devices discovery" to advanced. 5. Return to the "Bluetooth and Devices" screen and click on "Add device". 82-00041 BTKIT-02 Installation Instructions REV20231017...
  • Page 10 7. The PC will search for devices. In this win dow, look for the device name starting with "HOM" followed by the model number of the scale or the word "Scales". Click on the HOM name to initiate pairing. 82-00041 BTKIT-02 Installation Instructions REV20231017...
  • Page 11 8. If pairing is successful, it will show as connected. Click on "Done" and the pairing is complete. ® 9. In the "Bluetooth & Devices" window, find and click on "Devices". 82-00041 BTKIT-02 Installation Instructions REV20231017...
  • Page 12 10. In the "Devices" window, scroll down to the section titled "Related settings" and click on "More Bluetooth settings". 11. The Bluetooth settings window will open. In this window, click on the "COM Ports" tab. 82-00041 BTKIT-02 Installation Instructions REV20231017...
  • Page 13 12. In the COM Ports tab, note down the COM Port Number shown next to the HOM Scale "Outgoing". Use this COM Port "COM#" to communicate with the scale wirelessly to transfer data (COM11 in this image). 82-00041 BTKIT-02 Installation Instructions REV20231017...

  • Page 14: Troubleshooting

    Activate the license by entering the authorization code A66FF29A3B2F85E1 ® For assistance with the Welch Allyn Service Tool, please contact a Welch ® Allyn representative or visit www.welchallyn.com/ 82-00041 BTKIT-02 Installation Instructions REV20231017...

  • Page 15: Regulatory Information

    EN 301 489-17 v3.2.0 (2017-03) to electromagnetic compatibility Means of the efficient use of the radio EN 300 328 v2.1.1 (2016-11) frequency spectrum (ERM) SAR COMPLIANCE The USB Wireless Dongle and BT900 Module are SAR compliant. 82-00041 BTKIT-02 Installation Instructions REV20231017...
