Solid Technologies Hybrid Rack Mounting Instructions

Mounting instructions for the Hybrid Rack when the shelves are top mounted
1.
L
If a single section rack is to
be mounted, half of all corner-
pillars shall have the shelf-
bracket(s)mounted to the left
(L) slot and the other half to
the right (R) slot.
If a multiple section rack is to
be mounted a certain amount
of corner-pillars shall have
shelf-brackets mounted to both
the left and right slot
Screws must
be sufficiently
tightened, we
recommend a
tightening torque
of 15Nm.
Micro Grooves
SOLID TECH
R
Bottom
ATTENTION!

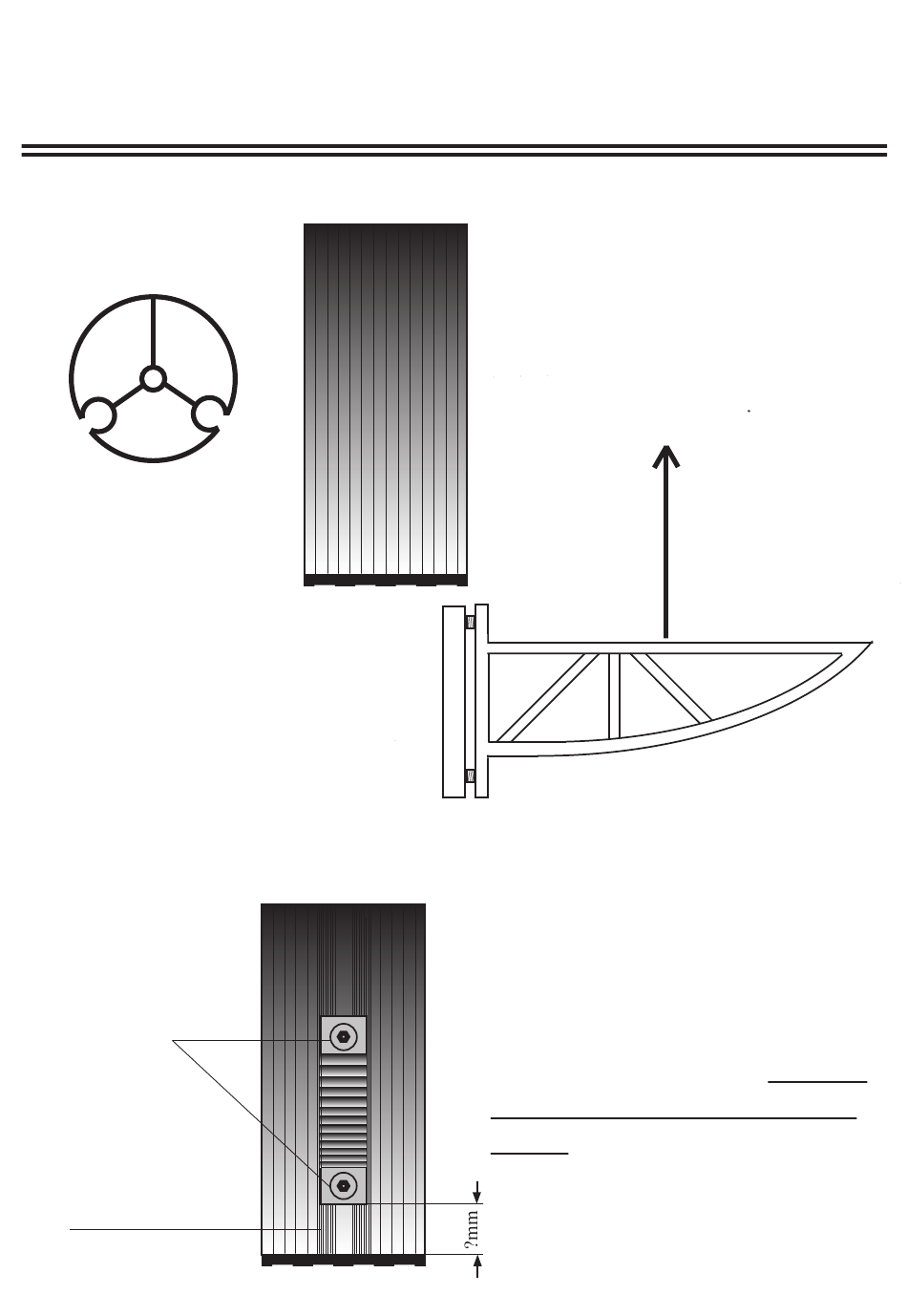

Carefully measure and place the shelf
bracket(s) at its intended height (?mm)
from the bottom and at first apply a very
light tension to the two screws, then care-
fully align the shelf bracket in a
straight line with the corner-
pillars
, using the micro grooves as guide
lines.
When the shelf bracket is properly adjusted
tighten the two screws
then
fully (15Nm).
perfect
