Knoll Telly Screen Installation Instructions

Telly Screen Installation Instructions
™
Reference Number: 6AJ9011
HARDWARE LIST
A B
D
x3
P/N: 6AJ1011
SPACER, PIVOT TUBE
G
x4
P/N: 6AJ101004
SUPPORT ROD, P/N: 6AJ1004
CONNECTOR LINK,
- 4 SEGMENT SEGMENT CONNECTOR

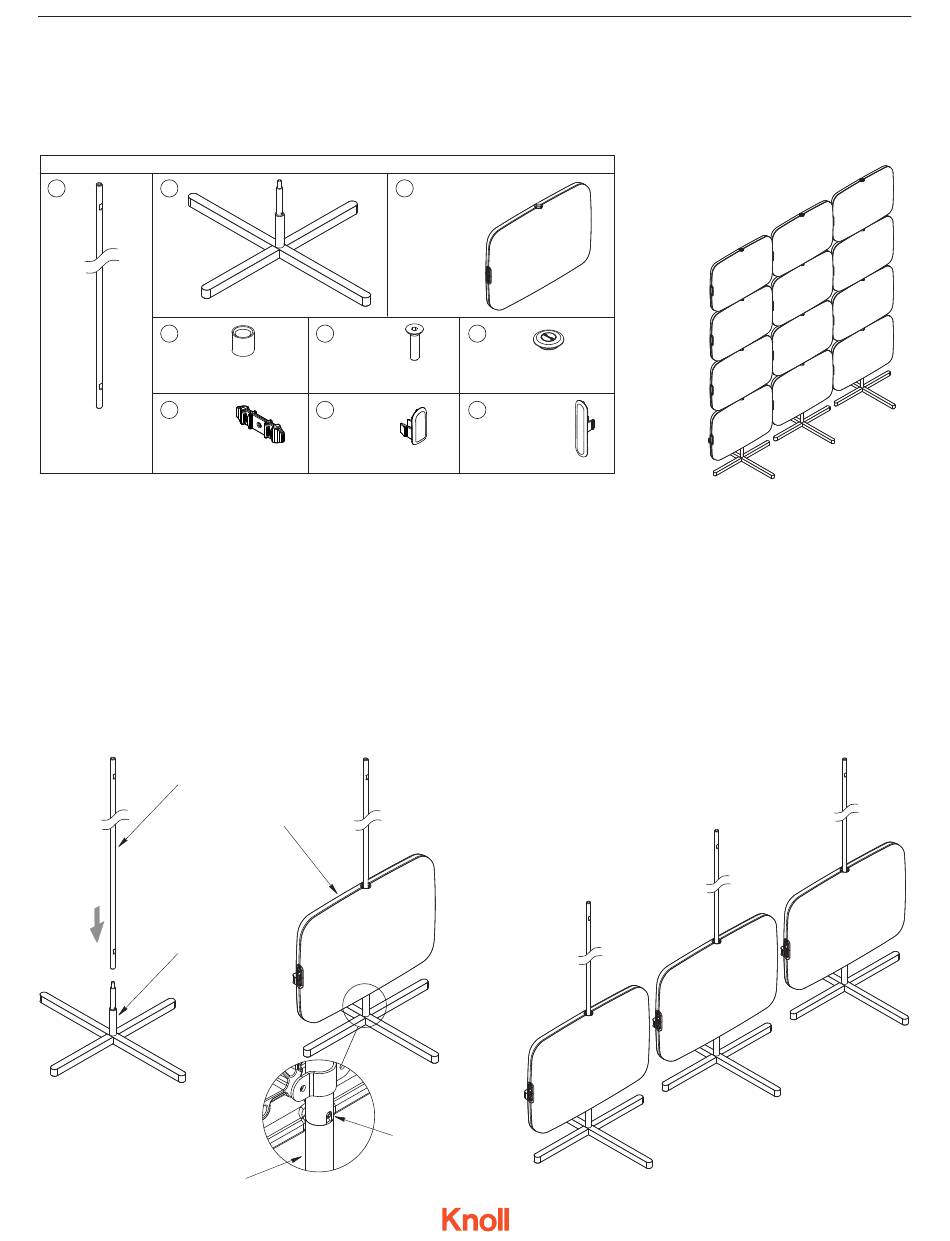

Assemble base and support rod, install first
segment
1. Install threaded support rod (A) to base
assembly (B). Support rod will be full height of
assembled totem, either 2, 3 or 4 segments
high. Use open end wrench to tighten thread
rod (A) to base assembly (B). (Fig. 1)
Fig. 1
A
B
rockwell_ii_telly_1_170407.ai
scale 1" = 2mm the at 80%
Rockwell Unscripted
May 16, 2017
C
P/N: 6AJ1003
P/N: 6AJ1047
SEGMENT
BASE
E
P/N: 6AJ1002
SCR,MACH,FLH,HEXDR,
5/16-18 x 1.25 (BLACK)
H
x4
P/N: 6AJ1020
LOCKING CAP
FILLER CAP - HOUSING
rockwell_ii_telly_hardware_170516.ai
2. Slide first Telly segment (C) onto support rod
(A). Making sure connector key hole slot on
side reads TOP (Fig. 4), right side up.
Make sure to align set pin on base assembly
(B) to notch in passthrough tube of Telly
segment (C). First segment has properly
engaged set pin if it does not spin. (Fig. 2)
Fig. 2
C
Align set pin
to notch
B
rockwell_ii_telly_2_170407.ai
scale 1" = 2mm then at 80%
Rockwell Unscripted Telly Installation Instructions
Tools Needed
Allen wrench
Open end wrench
F
P/N: 6AJ1018
TOP CAP OVERMOLD ASSY.
I
P/N: 6AJ1019
END CAP- HOUSING
Place adjoining bases, support rods and first
segments
3. Place adjoining bases in desired final
rockwell_ii_telly_170403.ai
scale 1" = 2mm then at 70%
rockwell_ii_telly_170403.ai
scale 1" = 2mm then at 70%
rockwell_ii_telly_f_170407.ai
scale 1" = 2mm the at 36%
configuration, either straight line or curvilinear
(up to 160 degrees).
Note: For stability purposes, a minimun of
two configured totems, connected at
adjoining Telly segments are required.
Repeat steps 1 and 2 for each base in
configuration. (Fig. 3)
Fig. 3
rockwell_ii_telly_170403.ai
scale 1" = 2mm then at 70%
Part Number: 6AJ9011
Sheet 1
