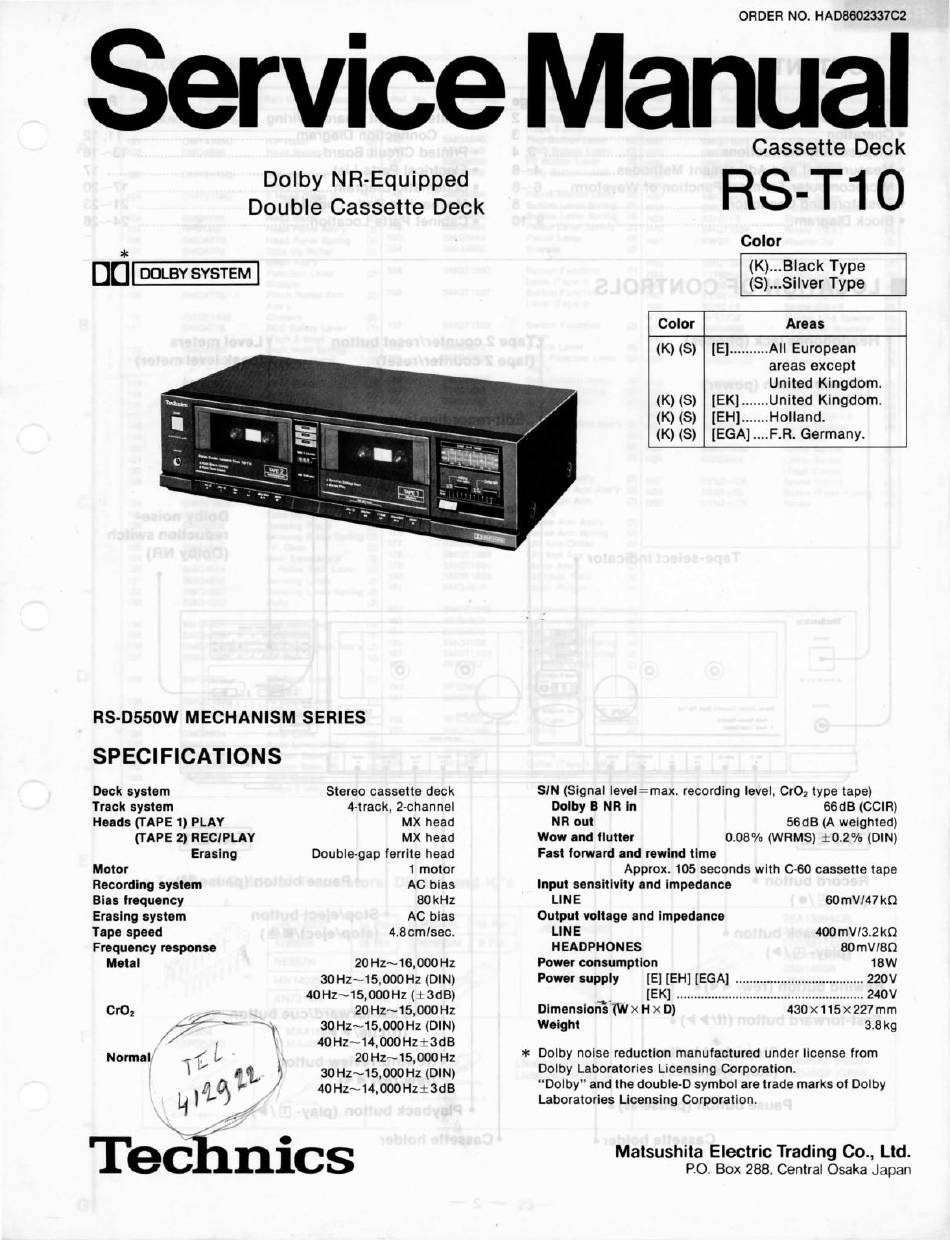

Technics RS-T10 Service Manual

ORDER NO. HAD8602337C2
Service Manual
.j-.iDmO(:
\
Dolby NR-Equipped
Doublé Cassette Deck
Cassette Deck

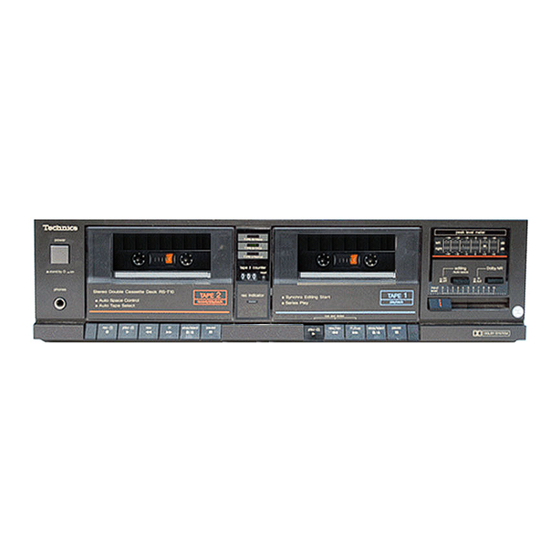

RS-T10
Color
DOLBY SYSTEM
B I
(K)...BIack Type
(S)...Silver Type
Switch
Punctwn
Color Areas
(K) (S) [E]
AH European
areas except
United Kingdom.
(K) (S) tEK].... ...United Kingdom.
(K) (S) [EH].... Holland.
(K) (S) [EGA]. ...F.R. Germany.
li-
RS-D550W M ECHANISM SERIES
SPECIFICATIONS
Deck system
Track system
Heads (TAPE 1) PLAY
(TAPE 2) REC/ PLAY
Erasing
Motor
Recording system
zyxwvutsrqponmlkjihgfedcbaZYXWVUTSRQPONMLKJIHGFEDCBA
. ..H )' ttoitiiu
Bias frequency
Erasing system nc
Tape speed
Frequency response
Metal
CrOj
Stereo cassette deck
4-track, 2-channel
MX head
I MX head
Double-gap ferrlte head
1 motor
AC bias
80 kHz
AC bias
4.8cm/sec.
20Hz~16,000Hz
30Hz~15,OOOHz (DIN)
40Hz~15,000Hz (±3dB)
20 Hz~ 15,000 Hz
30Hz~15,000Hz (DIN)
40Hz~14,000Hz±3dB
20 Hz~ 15,000 Hz
30Hz~15,000Hz (DIN)
40Hz~14,000Hz±3dB
60mV/47kfi
400mV/3.2kO
80mV/8O
18W
' -ik
S/ N
(Signal level = max. recording level, CrOz type tape)
Dolby
B
NR In
66dB (CCIR)
NR out
56dB (A weighted)
Wow and flutter
i
I I
0.08% (WRMS) ± 0 . 2 % (DIN)
Fast forward and rewind time
Approx. 105 seconds with C-60 cassette tape
Input sensitivity and Impedance
LINE
Output voltage and impedance
LINE n o ü u c
HEADPHONES | , ^
Power consumptlon
Power supply
[E] [EH] [EGA] 220 V
[EK] 240V
DIm e nsioiïs (WXH XD)
430x115x227mm
Weight j
> . 3.8kg
* Dolby noise reduction manufactured under license from
Dolby Laboratories Licensing Corporation.
"Dolby" and the double-D symbol are trade marks of Dolby
Laboratories Licensing Corporation.
Matsushita Electric Trading Co., Ltd.
P.O. Box 288, Central Osaka Japan
