Summary of Contents for AIPAS AIPAS-C1
- Page 1 HEYBIKE CITYSCAPE . ELECTRIC BIKE AIPAS-C ELECTRIC BIKE COPYRIGHT 2024 AIPAS.ALL RIGHTS RESERVED. INSTRUCTION MANUAL USER MANUAL The manufacturer reserves the right to make changes to the product and manual at any time Visit www.Aipasbike.com to download the latest user manuals...
-
Page 2: Table Of Contents
You should be familiar with the operation of your eBike, its features, Safety Messages capabilities, and limitations. To ensure a long, trouble-free life for your Aipas eBike, provide it with the proper care and maintenance as described in this Icons and Stickers Guide manual. -
Page 3: Safety Messages
These regulations may change at any time. Intended Use The intended use of your Aipas eBike is to be ridden by one rider at an appropriate time and place for general transportation or recreational use. Any other use is prohibited and may result in SERIOUS INJURY or DEATH. - Page 4 Never modify your frame or bicycle in any way. Do not sand, drill, file, or remove parts from Be aware of eBike regulations in your area. Generally, the regulations for the use of an Aipas your bicycle. Do not install incompatible components or hardware.
-
Page 5: Icons And Stickers Guide
The risk of a crash is dramatically increased in wet conditions. There are warning labels on your Aipas eBike for your protection. If a label is missing or is not Your electric bicycle can withstand light rain and small splashes, but it is not designed to be legible, contact Aipas eBikes for a replacement. -
Page 6: Note Before Assembly
Aipas eBike Charger Manufacturer Manuals Battery Keys If anything is missing or is damaged, contact Aipas eBikes immediately for assistance. For a video about visit our YouTube page: Aipas eBikes Serial Number Serial number is located on the head tube of the bicycle as shown below. Please write it down inside the front cover of this manual.You may be asked for your bicycle's serial number as part of... -
Page 7: Setting Up Your Aipas Ebike
Setting Up Your Aipas eBike Setting Up Your Aipas eBike NOTE: This manual is not intended to be an extensive reference book about service, mainte- Front Fender & Headlight Aipasbike.com nance, and/or repairs.You can find more information on our website:... - Page 8 Setting Up Your Aipas eBike Setting Up Your Aipas eBike Install front wheel Install display Loosen the screws to Take out the stem and Tighten the screws to fix Take out the kickstand and loosen the Make sure the kickstand is align with the...
- Page 9 Setting Up Your Aipas eBike Setting Up Your Aipas eBike For better pedaling, safety and overall riding comfort, positioning the seat at the right height is important. The rider's leg length is used to determine the seat's position. When you pedal, your hips should remain level and your legs should be almost fully extended at the bottom of the pedal stroke, but not over-extended.
- Page 10 Setting Up Your Aipas eBike Setting Up Your Aipas eBike Adjust Seat Post Height WARNING! Install pedal Loosen the lamp. The open and closed positions of the clamp are shown below (open position on left, closed position on right); Raise or lower the seat post in the seat tube;...
- Page 11 Note: When unlocking and removing your battery pack from the frame, take care that it does not slide out.If your battery impacts the ground and is damaged, discontinue use and contact Aipas eBikes immediately.
-
Page 12: Specifications
Specifications LCD Display Controls ITEM SPECIFICATIONS Model AIPAS-C1 Speed Product Dimensions 72*41(Inch) 53*9.5*27.5(Inch) Package Dimensions Light On/Off Indicator Battery Indicator Cruise Indicator Max Load 400 Lbs Brake Indicator Package Weight 78 Lbs eBike Work Mlode E-Bike Weight 63 Lbs PAS Level... - Page 13 If 2: Both PAS and Throttle Active you need the default setting values of settings not listed, contact Aipas eBikes. DO NOT ride your bicycle until the default settings have been restored.
-
Page 14: Functions
7-Speed Gear System Tightening Torque Spec Your Aipas eBike comes with a 7-speed freewheel. The freewheel is the cluster of sprockets on Bottom Bracket 60 Nm the rear wheel of your bicycle. While pedaling in 1st gear (lowest gear using the largest sprocket), it will be easier to pedal up hills. - Page 15 NOTE: When Walk Mode is active,"Walking" will appear on the display. Cruise Control Cruise control on your Aipas works similarly to cruise control on a car. The bike will try to main- tain a speed based on the position of the throttle when cruise control is activated. For example,...
-
Page 16: Warning Messages
Unauthorized opening of the drive unit will render warranty claims null and void. All components fitted to the drive unit and all other components of your Aipas eBike PAS system The range the bicycle can go on a single battery charge can vary significantly between riders, (e.g. -
Page 17: Thinks To Know Before The Ride
Please secure your helmet. Top Speed Your Aipas eBike ships with a maximum speed set at 20 miles per hour (mph). This means it is a Safety Tips Class 2 electric bicycle in states that recognize three classes of eBikes. In most states that only recognize eBikes generally, the 20 mph top speed is legal for use on public roads. -
Page 18: Battery Safety
When the bicycle is at a complete stop, press and hold the button to turn the display OFF. This Your Aipas eBike battery must not be opened, even for repairs. There is a risk your eBike battery ensures the motor will not activate until the display is turned ON again and you are ready to could catch fire, e.g. - Page 19 Only grab the charger by the plug and not the cable when plugging and unplugging from the wall. Use the battery only in conjunction with your Aipas eBike. This is the only way in which you can protect the battery against dangerous overload.
-
Page 20: Charge Safety
To Charge: To reduce the risk of injury, charge only the batteries of your Aipas eBike. Other types of Plug the cable from the charger into the port on the side of the battery pack. batteries may burst, causing personal injury and damage. -
Page 21: Storing The Battery
The battery is away from heat sources. E008 Throttle Fault Check throttle quick plug For an optimum service life, store your Aipas eBike battery at temperatures between 50º F and E009 Controller Fault Check controller connections 68º F. Never store it at temperatures below 14º F or above 140º F. Make sure the maximum storage temperature is not exceeded. -
Page 22: Maintenance
Monthly, Clean brake and shift cables. Check brake and shifter cables for 250-750 mi Do not submerge your Aipas eBike or its components in water use a pressure washer to clean it. Replace brake pads if corrosion or fraying. (402-1207km) True and tension wheels if any necessary. -
Page 23: Legal Warranty
To determine if coverage is provided, you should contact your insurance company or agent. Damage as a result of an accident is not covered under this warranty, and Aipas eBikes is not Parts covered by the warranty: frame, forks, stem, handlebars, headset, seat post, saddle, brakes responsible for the repair or replacement of damaged bikes or parts. -
Page 24: Fcc
Aipas eBikes makes no claims or guarantees that Please note that changes or modifications not expressly approved by the party responsible for the brakes, battery, frame, motor, motor controller, display, electrical cables, electrical cable compliance could void the user's authority to operate the equipment.
Need help?
Do you have a question about the AIPAS-C1 and is the answer not in the manual?
Questions and answers
Where can I watch video on how to use PAS, throttle and all features on my C1 express

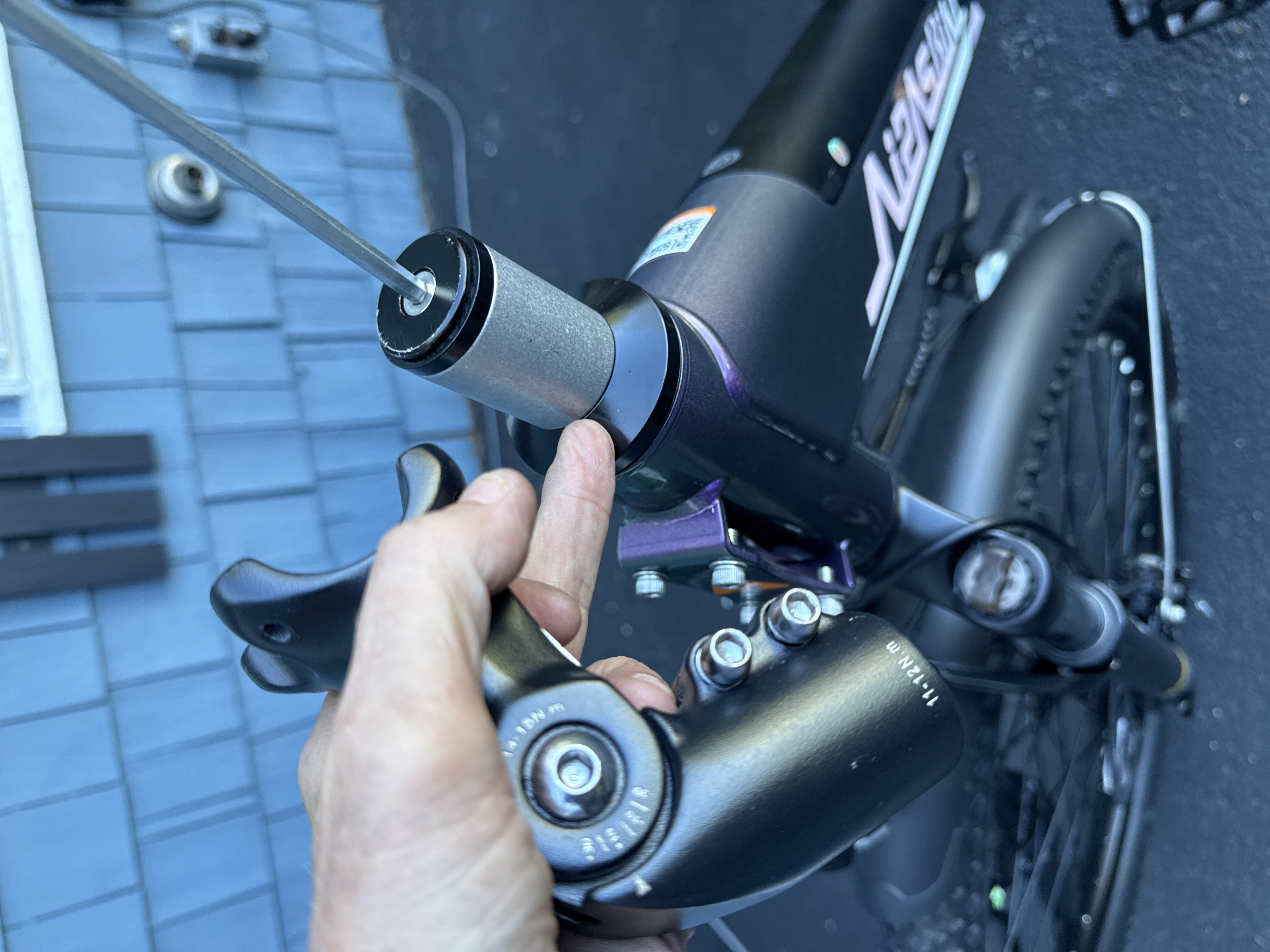

I cannot get the stem to tighten to the forks
