Summary of Contents for KELISS B01

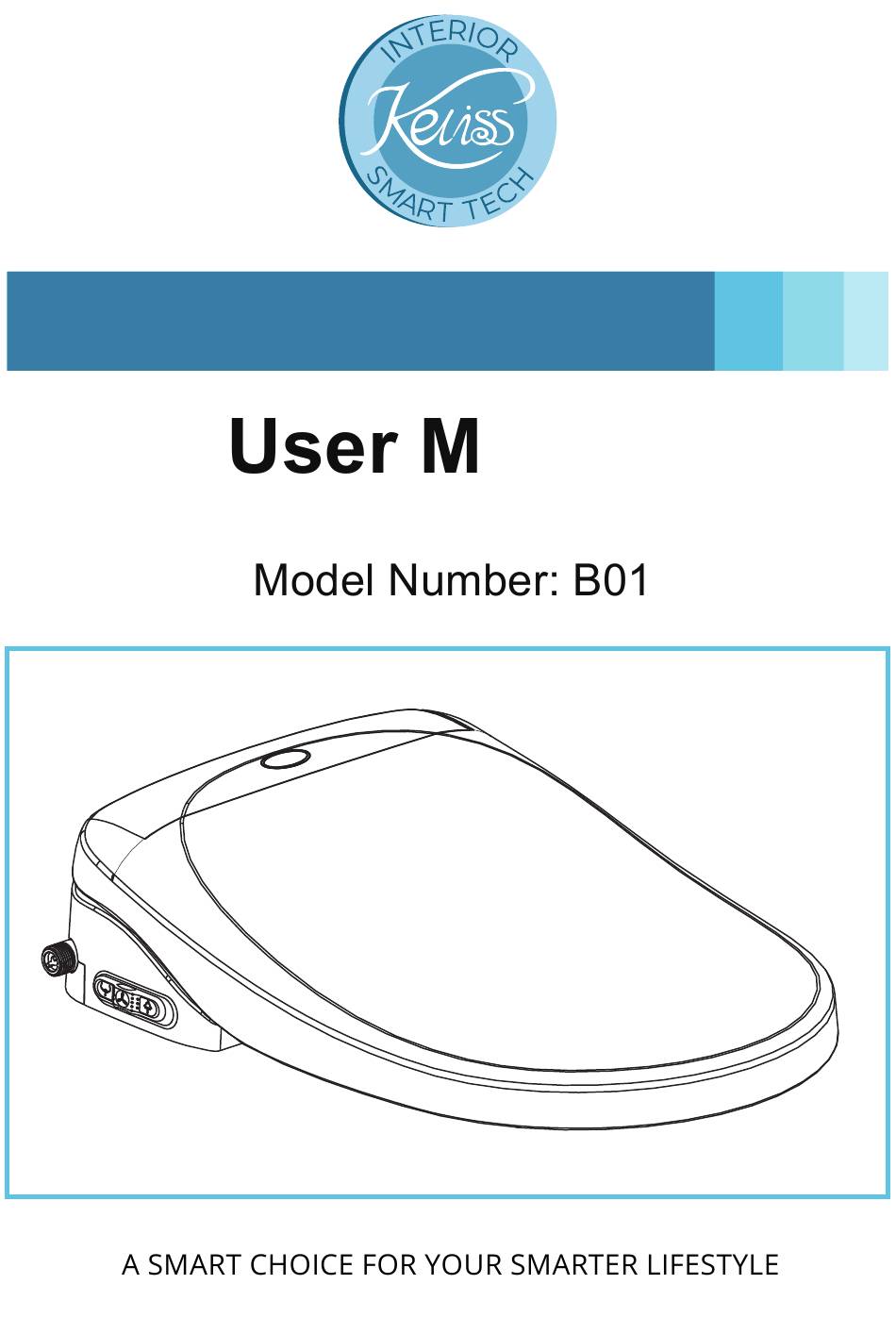

- Page 1 anual Smart Toilet Seat anual...
-
Page 2: Table Of Contents
Contents Safety precautions ................Components ..................Product diagram ................Power and water connections............Product functions................Installation..................Components ................10-11 Remote control functions ............12-13 Side push button instructions............Remote control installation instructions ........Removal and maintenance.............. Cleaning ................... Nozzle cleaning................. Troubleshooting and alarm maintenance......... -
Page 3: Safety Precautions
Safety precautions To prevent damage to the unit and possible injury to users, please follow the safety warnings. Please be sure to carefully read through the user's manual before installation. Keep the user's manual after installation to refer to for troubleshooting advice. Symbols and meanings WARNING Could result in serious injury or death. - Page 4 Stop using the product immediately if you observe: Smoke Unusual sound or odor Leakage, breakage or other damage Blocked toilet pan Continued use under these conditions could cause electrical shock, injury, or water leakage. Do not clean the smart bidet with heavy chemical cleaning agents such as paint thinner, gasoline, putty powder, nylon brush, etc.
- Page 5 Disconnect the power supply before removing this product from the toilet to the product and do not apply water directly to it. Persons with special health conditions should only use this product with the permission of their doctor. In some instances, supervision or assistance may be necessary when using the product.
-
Page 6: Components
Components SMART TOILET SEAT REMOTE CONTROL REMOTE CONTROL HOLDER FAST MOUNTING PLATE ADJUSTMENT SHEET (2pcs) REMOTE EXPANSION DOUBLE-FACED SCREW GROUP (EACH 2pcs) ADHESIVE TAPE USER'S MANUAL INLET HOSE T-JUNCTION COMPONENT... - Page 7 Rated voltage and rated frequency 110V~ 60Hz Length of wire About 1.5m Posterior cleaning Water About 0.4 - 0.7L/min(hydraulic pressure of 0.2Mpa) yield Feminine cleaning Swing cleaning back and forth Swing cleaning Washing Massage cleaning Interval cleaning. Powerful cleaning equipment The adjustment of the water 5 settings gear and nozzle place...
-
Page 8: Product Diagram
Product diagram 392mm(15.43in) 128mm(5.04in) 382mm (15.04in) Size b Size c Model Installation range Size b Size c Size a 452-496mm(17.79-19.53in) 510mm(20.08in) 563mm(22.16in) 518mm(20.39in) ① 424-468mm(16.69-18.42in) 482mm(18.97in) 513mm(20.19in) 490mm(19.29in) ② Connect to grounded outlet Caution electric shock! GFCI outlet... -
Page 9: Product Functions
Product Functions Cleansing functions Posterior cleaning Rear cleaning Feminine cleaning Front cleaning Spray position adjusting Massage cleaning Variable intensity of the water spray for massaging action Swing cleaning Swings back and forth to cleanse most area Comfort functions Seat heated Heats seat and maintains temperature Dries cleaned areas with warm air Temperature adjusting... -
Page 10: Installation
Installation Adjustable sliding vane Fast-install baseboard Install action holes Ceramic body 2. Put fast-install baseboard on installation holes 3. Put adjustable sliding vane on fast-install baseboard Put the cover seat in the direction of the fast-install baseboard, and push the cover seat as the arrow shown. The seat is properly installed after a "click"... - Page 11 Water supply connection instructions GFCI outlet removing valves to prevent water spillage. × This product has been tested with water. It is normal if a small amount of water drips out of the product when it is removed from the packaging.
-
Page 12: Components
Components Pads Power indicator Decoration panel Dryer Seat isensor Seat Nozzles Posterior cleaning Feminine cleaning Posterior cleaning Dryer Feminine cleaning -10-... - Page 13 Components Deodorizer panel Decorative sheets Inlet connector Fast-install button Baseboard Signal indicator Power cord buckle Fast-install baseboard -11-...
-
Page 14: Remote Control Functions
Remote control functions Signal light Stop function Massage function Swing function Posterior cleaning Increase temperature Move the nozzle of water or air forward Feminine cleaning Water/air Spray bar temperature indicator BIDET position indicator Dry function Move the nozzle Decrease temperature backward of water or air Increase water... - Page 15 Remote control functions Stop (Some models do not have this function). Posterior cleaning Press the button; posterior cleaning function will start after a beep. The function turns Function will stop if user leaves. Feminine cleaning or by pressing the stop button. Function will stop if user leaves.
-
Page 16: Side Push Button Instructions
Remote control functions There are 5 settings. When the rear mode or bidet mode is turned on, the intensity. Press the "-" button to decease water intensity. The indicator light corresponds to the setting. Adjust seat temperature There are 3 settings. When the rear mode or bidet mode is turned on, the temperature. -
Page 17: Remote Control Installation Instructions
Remote control installation instructions Method 1 FIGURE 1 below. double-sided tape magnet Method 2 Drill a hole of 46mm~52mm(1.81in~2.05in) length and 22mm(0.86in) depth on the wall with a 6mm(0.24in) diameter drill.Have a user sit on the seat to check the position of the hole in the wall. The user should be able to access the remote control while seated. -
Page 18: Removal And Maintenance
Removal & Maintenance Please check and test before using the product again. -16-... -
Page 19: Cleaning
Cleaning -17-... -
Page 20: Nozzle Cleaning
Nozzle cleaning Remove the nozzle sponge, or smooth cloth with soap or mild detergent. will automatically retract into the product. Do not use hydrogen chloride cleaning agents, diluent, pesticides and other non-organic detergents -18-... -
Page 21: Common Troubleshooting
Common troubleshooting Phenomenon Reasons Measures Check to see if the power supply is plugged The product doesn't work Switch the power supply on in or the leakage protector is disconnected Please press the stop button and wait for the water supply No response when pressing valve if it is closed yield is very small... -
Page 22: Troubleshooting And Alarm Maintenance
Troubleshooting and alarm maintenance Problem Possible causes Actions The inlet water temperature sensor is as it lights for 2 sec. faulty or there is a broken circuit. If the power light 2 times The outlet water temperature sensor is as it lights for 2 sec. faulty or there is a broken circuit. -
Page 23: Maintenance Service Sheet
Maintenance Service Sheet Product Product code The selling store Purchase date Province City Maintenance content Free maintain regulation: warranty. voltages and other natural disasters. repair within two years from the purchase date. Warranty period: within two years from the purchase date NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.
