Fitness and Strength CCO1 Cable Cross Over Machine Owner's Manual

Cable gym
Hide thumbs
1
2
3
4
5

Advertisement

Table of Contents

CABLE GYM
OWNER'S MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CCO1 Cable Cross Over Machine and is the answer not in the manual?

Questions and answers

Summary of Contents for Fitness and Strength CCO1 Cable Cross Over Machine

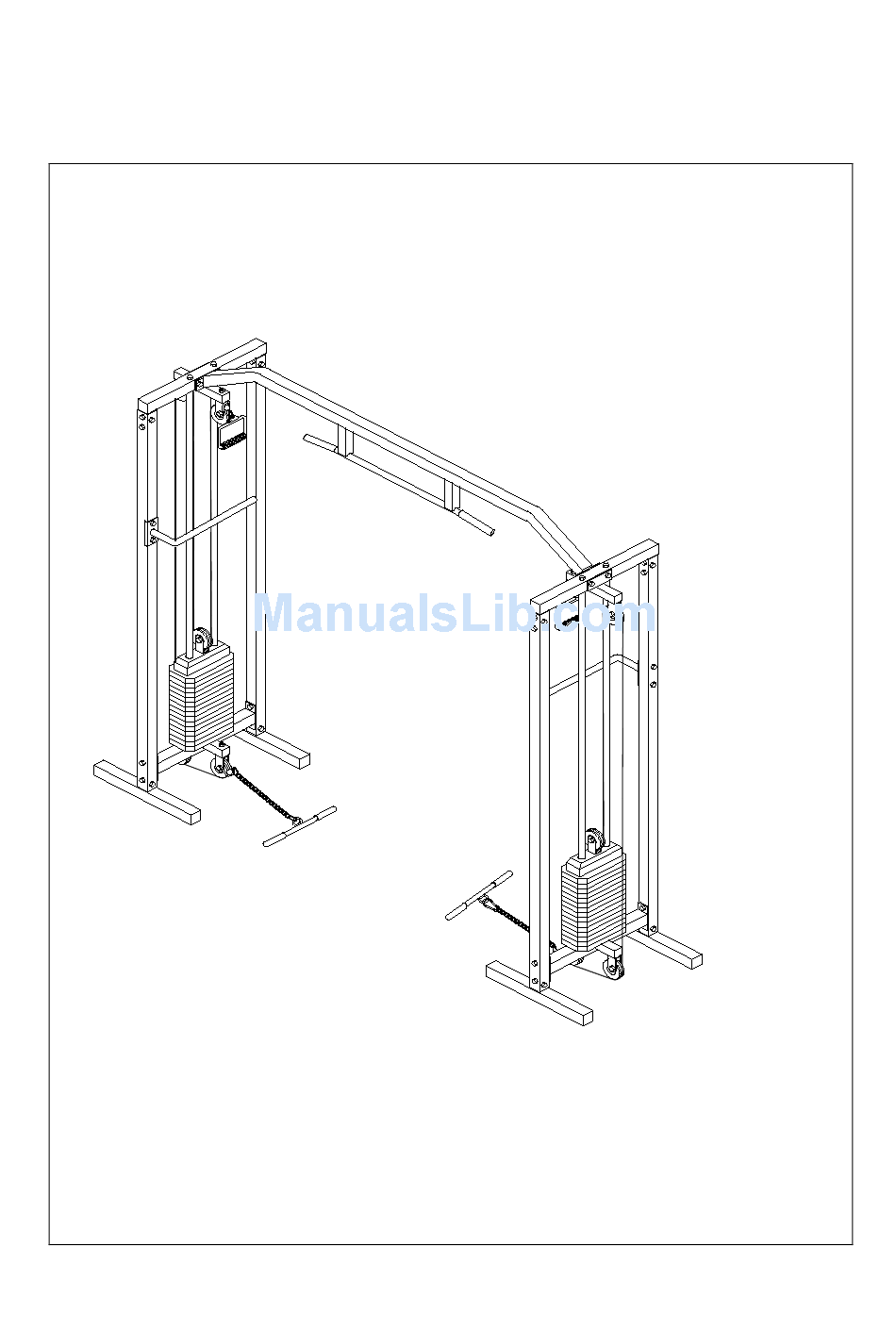

  • Page 1 CABLE GYM OWNER’S MANUAL...

  • Page 2: Part List

    SELECTOR SHAFT TOP SUPPORT TUBE UPPER PULLEY BLOCK TOP BEAM HANDLE BAR CURL BAR HANDLE PULLEY BLOCK CABLE(4.28m) PULLEY CHAIN CHAIN HOOK WASHER PIN FOR WEIGHT STACK QUICK PIN M10*75mm BOLT M10*70mm BOLT M10*65mm BOLT M10*45mm BOLT M10*20mm BOLT WASHER...
  • Page 3 1. ATTACH FRONT AND BACK UPRIGHT FRAME(2,3)TO MAIN BASE(1),SECURE WITH BOLTS(25),WASHERS(29) AND NUTS(28)AS SHOWN. 2. ATTACH BASE SUPPORT (04) TO UPRIGHT FRAME (2,3),SECURE WITH BOLTS (24), WASHERS (29), AND NUTS (28) AS SHOWN. 3. INSERT GUIDE ROD(5) INTO THE HOLE OF BASE SUPPORT (4)SECURE WITH BOLTS(27) AND NUTS(29) AS SHOWN.
  • Page 4 2. ATTACH HANDLE BAR(12) TO UPRIGHT FRAME(2,3)AS SHOWN ,SECURE WITH BOLTS(24),WASHERS(29) AND NUTS(28). 3. ATTACH SINGLE PULLEY BLOCK(A) (32) TO UPPER PULLEY BLOCK (10) SECURE WITH WASHERS (29) AND NUTS (28) AS SHOWN. 4. ATTACH SINGLE PULLEY BLOCK(B) (33) TO BASE SUPPORT (04) SECURE WITH WASHERS (29) AND NUTS (28) AS SHOWN.
  • Page 5 17 28 - 4 -...
