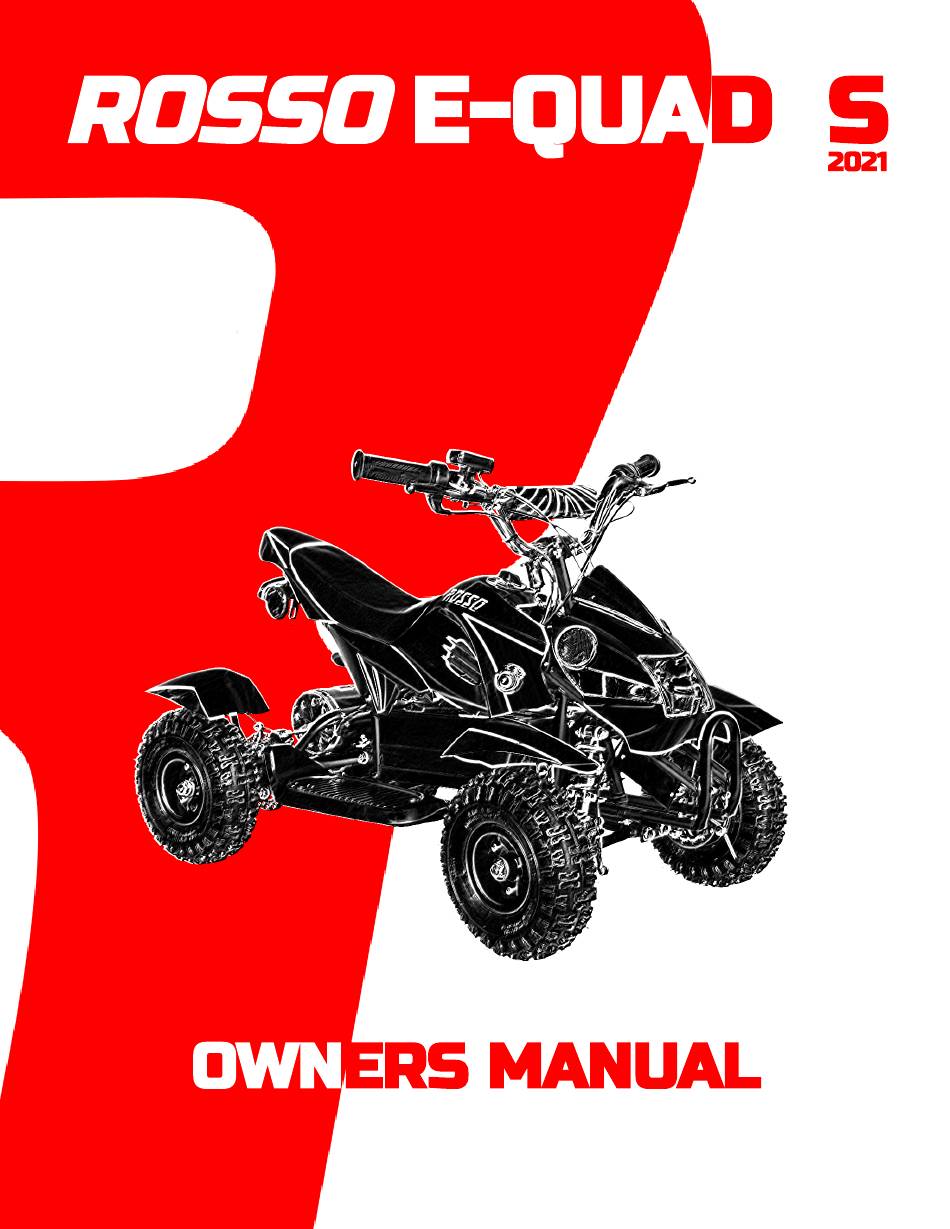

- Page 1 ROSSO E - QUAD S 2021 ELECTRIC ATV OWNERS MANUAL PRIOR TO FIRST USE, READ THIS MANUAL COMPLETELY AND ATTENTIVELY! IMPERATIVELY FOLLOW THE SAFETY INSTRUCTIONS! NONOBSERVANCE CAN LEAD TO PERILOUS INJURIES! CAREFULLY KEEP THIS MANUAL!
- Page 2 Rosso Motors recommends that owners periodically review and reinforce the information in this manual with younger riders, and inspect and maintain this machine to ensure any rider’s safety. An owner's decision to allow a child to ride this product should be based on the child’s maturity, skill and...
-
Page 3: Safety Information
SAFETY INFORMATION ALWAYS follow safety information, product instructions and recommended maintenance and care, to ensure the best possible performance, lifespan and experience with a new eQuad! ALWAYS wear proper protective safety equipment. (See details below) ALWAYS check and obey any local laws or regulations that may affect the locations where the eQuad may be used. - Page 4 NEVER immerse in or saturate the eQuad with water, as the electrical and drive components could be damaged by water or create other possible unsafe conditions. While shallow depths of water, such as shallow puddles or a few cm of mud or snow are most likely ok, avoid levels of water that may be near to or deeper than the unit’s ground clearance.
- Page 5 ASSEMBLY ● The ROSSO eQuad S requires minimum assembly. ● Please follow the instructions below to get this eQuad S assembled properly. ● An assembly video can also be found at https://youtu.be/nx0eo_R491g. 1. Unboxing: Carefully cut open the eQuad box and slide out the metal framed eQuad. Unbolt the lower frame bolts and remove the top portion of the cage.
- Page 6 ASSEMBLY continued… 2. Handlebar installation: Place handlebars into position on the bracket on the top of the steering column, cover with the top handlebar bracket and loosely install 2 of the provided nuts & bolts in the set of holes closest to the rider.
- Page 7 4. Battery connection: Locate the battery connection within the body and ensure the 2 connectors are together. 5. Final adjustments Adjust the position of the brake levers, and secure them in place by tightening the single bolt. (Please note: eQuad X handlebars shown, brake levers and adjustment procedure the same) EQUADS COME ONLY PARTIALLY CHARGED AND MUST BE FULLY CHARGED BEFORE FIRST USE.
-
Page 8: Component Diagram
COMPONENT DIAGRAM (a) Forward/reverse gear switch (f) Throttle/battery gauge & front brake (b) Battery case (g) Rear brake & headlight/horn buttons (c) Controller/ charging port (h) Headlights (d) 500W motor (i) Ignition switch (e) 3-speed switch OPERATION Basic Operation With the eQuad powered on, gently twist the throttle until the desired speed is reached. Release the throttle and squeeze both brake levers to stop. - Page 9 Oppositely if it does not do either that does not indicate it is not working properly. If the charger becomes very hot, please unplug it and contact Rosso Motors technical support. The charger supplied with the eQuad should be regularly examined for damage to the cord, plugs, enclosure and other parts.
-
Page 10: Battery Level Indicator
Remote Buttons POWER 2x press to turn the unit NO ⚡ UNLOCK Press to turn the unit OFF and to turn the alarm off �� LOCK Press to turn the unit’s alarm on. SIREN Press to activate the siren for locating a unit Each fob requires a CR2032 battery. -
Page 11: Pre-Ride Checklist
Headlight/Horn switch Located on the left handlebar the headlight switch can be used to turn the headlights on and off. PRE-RIDE CHECKLIST Ensure to check the following before each ride to ensure maximum safety: Brakes - Check the brakes for proper function. When squeezing each brake lever, the brake caliper should prevent movement. -
Page 12: Brake Adjustments
Brake adjustments Failure to inspect and properly adjust brakes increases the risk of having an accident. Riding with worn brake pads can reduce braking performance and cause an accident. Check and adjust brakes if needed before each ride. To adjust cable play on the left (rear) brake lever – tighten/loosen adjuster To adjust cable play on the right (front) brake lever - tighten/loosen adjuster To adjust the calipers, loosen (do not remove completely) the anchor nut (a) and pull the brake cable (c) until the brake pads are almost touching the rotor(brake disc) (b) . -
Page 13: Wiring Diagram
Chain The eQuad is chain-driven and should be periodically lubricated with lithium spray. The chain may make some clicking noises, this is normal. Always inspect, maintain or adjust the chain, if necessary, before each ride. Riding with a chain in poor condition or one improperly adjusted, can lead to serious injury. -
Page 14: Troubleshooting
TROUBLESHOOTING Problem Possible Cause Solution Power does not turn on Fuse not installed/burnt out Replace fuse Turn main switch on / activate with eQuad is turned off remote fob Battery not connected Connect battery Battery not charged Charge battery Check connections on the battery, Loose connection controller &... -
Page 15: Warranty
WARRANTY ROSSO MOTORS warranties this product to be free of manufacturing defects for a period of 6 months from the date of purchase. This limited warranty does not cover normal wear and tear components, (tires, tubes, brake cables, etc) or any damage, failure or loss caused by improper assembly, maintenance, care, storage or use of the eQuad S. - Page 16 11400 Twigg Place Unit 1 Richmond, BC, V6V3C1 CANADA hello@rossomotors.com www.rossomotors.ca 1-888-897-5909 © Rosso Motors, 2024. All Rights Reserved...
