COLONNA 400
Use and maintenance booklet
SERIAL NUMBER M

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the COLONNA 400 and is the answer not in the manual?

Questions and answers

Related Manuals for Maxima COLONNA 400

Summary of Contents for Maxima COLONNA 400

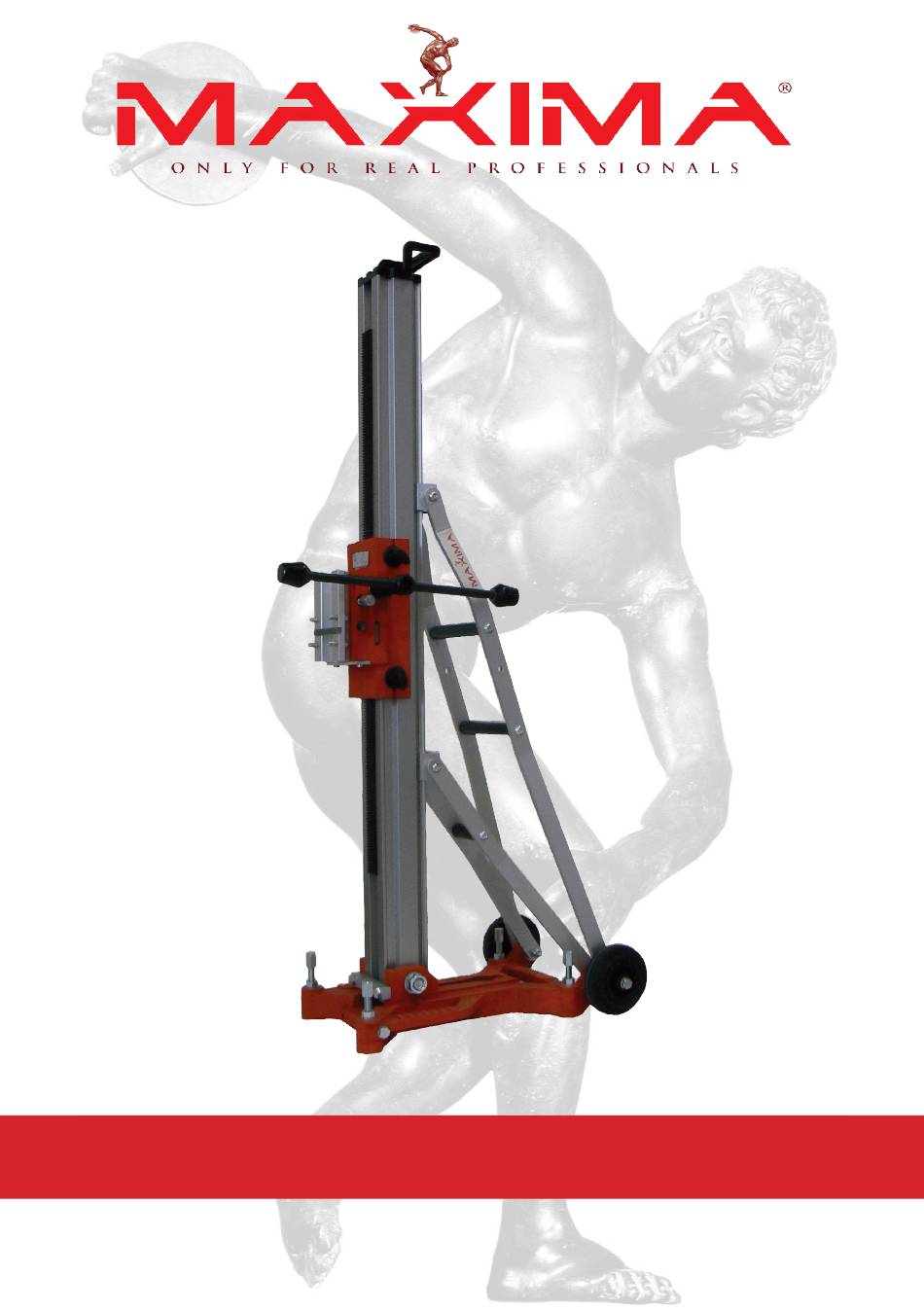

  • Page 1 COLONNA 400 Use and maintenance booklet SERIAL NUMBER M...
  • Page 2 COLONNA 400...

  • Page 3: Table Of Contents

    COLONNA 400 USE AND MAINTENANCE MANUAL “COLONNA 400” CONTENTS Introduction................. 3 Safety instructions ..............4 Machine description ............... 6 Operating Instructions ............8 Maintenance ................ 9 Warranty ................10 Technical data sheet .............11 Spare Parts .................11 Declaration of Conformity ............14...

  • Page 4: Introduction

    This manual should be read carefully by any operator using the column for the first time. This can prevent dangerous situations at the workplace. This booklet is valid only for Colonna 400. The model is indicated on the support plate. This booklet is written in accordance with EC regulations and related technical standards.

  • Page 5: Safety Instructions

    COLONNA 400 SAFETY INSTRUCTIONS INTRODUCTION The following safety instructions should be followed when using the support to reduce the risk of fire, short circuit and physical injury. Before using the machine, please read the following information carefully and pay attention to the warnings given.

  • Page 6: Explanation Of Symbols Used

    COLONNA 400 Safeguard the support from damage Check the alignment and edge of moving parts. Breakages or other such conditions can affect normal use of the machinery. Use of accessories Use of accessories not specified in this manual may pose a risk or cause physical injury.

  • Page 7: Column Description

    General Colonna 400 is designed for the use of diamond core bits. It can be used to drill concrete, asphalt and other similar stones. The maximum diameter of the core bits that can be used with this column is 400...
  • Page 8 350mm plus the distance of the axis of the motor drill from the support: Transport Colonna 400 is easy to move thanks to the handle located on the base and the top of the rack.

  • Page 9: Operating Instructions

    COLONNA 400 OPERATING INSTRUCTIONS POSITIONING OF THE MACHINE Support anchorage • Insert an M12 plug into the wall or floor. • Position the base and fix it with an M12 bush. A telescopic extension can be used for additional anchorages Levelling and inclining the column Level the base by means of the bolts located on the same by checking the levels.

  • Page 10: Maintenance

    COLONNA 400 MAINTENANCE PREVENTIVE MAINTENANCE Regardless of preventive maintenance, operator safety and machine life can be enhanced by following the tips below: • Handle the machine with care • Keep the machinery clean • Carry the machine in wooden packaging •...

  • Page 11: Waste Disposal

    Please safeguard the environment when disposing of the waste. WARRANTY Period Colonna 400 is covered by a 12-month warranty from the date of purchase Contents of the warranty Products found to be defective before or at the beginning of use will be repaired or replaced free of charge.

  • Page 12: Technical Data Sheet

    COLONNA 400 TECHNICAL DATA SHEET DIMENSIONS Length ......................520 mm Width ......................380 mm Height ......................980 mm Weight ......................19.5 kg TECHNICAL DATA Motor support mounts a water core drill ................Diamond core bit ...................Ø 400 mm Length of the diamond core bit ..............Max 450 mm...
  • Page 13 COLONNA 400...
  • Page 14 COLONNA 400...

  • Page 15: Declaration Of Conformity

    COLONNA 400 We declare under our sole responsibility that this Declaration of Conformity product complies with the following EC directives 98/37 EEC 89/392/EEC and amendments. 93/68 EEC EN291-1, EN292-2, EN292-2/A1, EN60204.1 Type Model COLONNA 400 COL 400 INC Serial Number Distributor MAXIMA S.p.A.
  • Page 16 Maxima SpA- Via Matteotti, 6 - 42028 Poviglio (Re) Italy Tel: 0039 0522 968011 - Fax: 0039 0522 967536 info@maxima-dia.com - www.maxima-dia.com...
