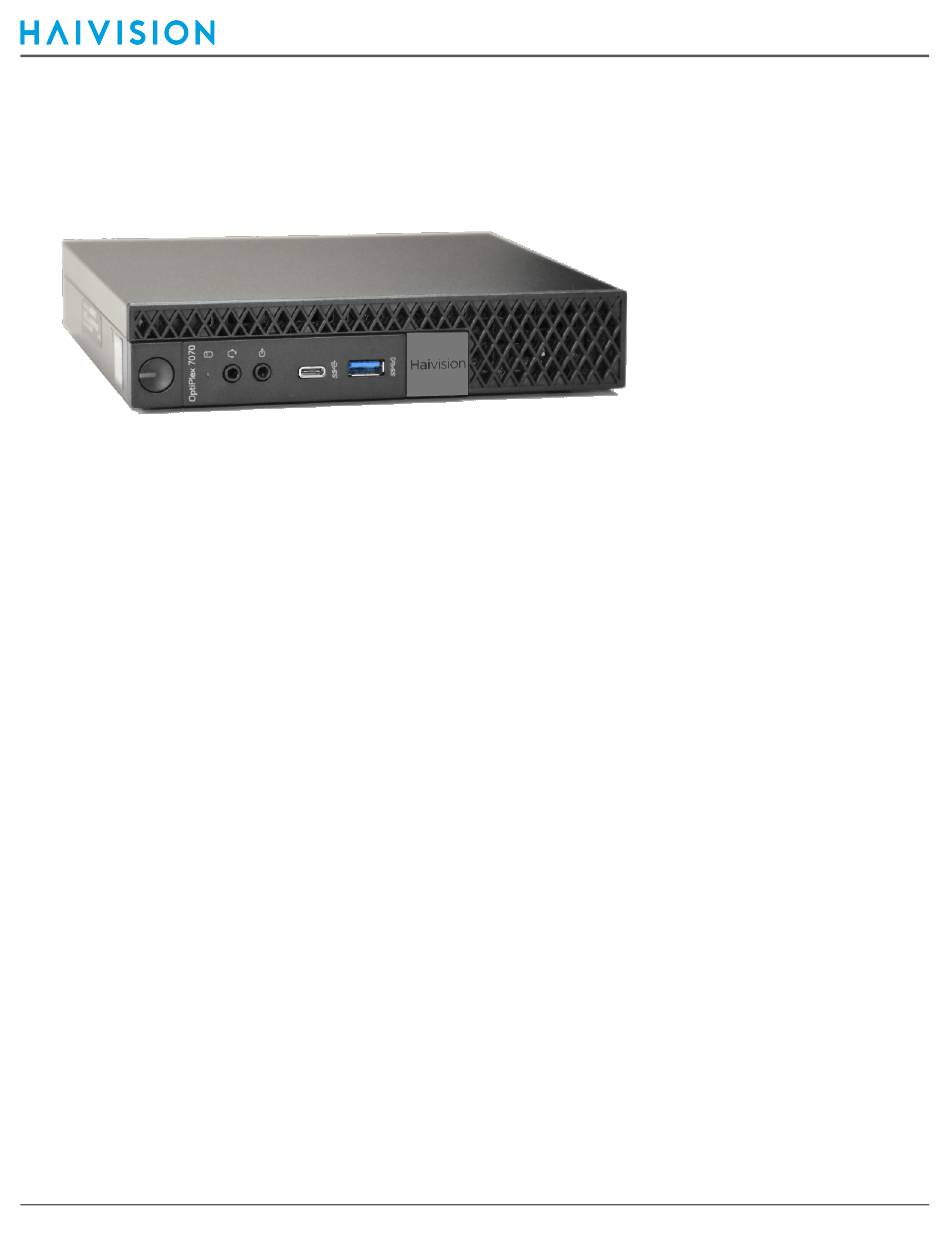

CDVR SDI Mini (2nd Generation) Quick Start Guide
The Haivision Connect DVR multi-site solution enables you to stream time-shifted video from an
originating site to remote venues. An integral part of the multi-site solution, the DVR SDI Mini appliance
can accommodate synchronized dual-stream playout, preserving the large-scale theatrical experience
(IMAG) from the main site to the remote venue with perfect synchronization. This latest generation
allows you to stay connected at greater distances while still delivering top WiFi speeds for faster
streaming.
This  Quick Start Guide  describes the steps required to install and setup the DVR SDI Mini appliance. See
the User's
Guide for further details on configuring the Connect DVR multi-site solution and using the
appliance's web-based interface.
Guide Contents
•
Setting Up the Mini Device
•
Powering On the Mini Device
•
Changing Network Settings on the Mini
•
Accessing the Web Interface on the Mini
•
Connecting to the Console UI Remotely
Use the following guidelines when unsafe conditions exist or when potentially hazardous voltages are
present:
•
Always use caution and common sense.
•
To reduce the risk of electrical shock, do not operate equipment with the cover removed.
•
Repairs must be performed by qualified service personnel only.
Improper handling and/or installation practices of sensitive equipment may VOID the warranty.
Haivision Connect DVR 4.6
CDVR SDI Mini (2nd Generation) Quick Start Guide
Connect DVR 4.6 Display Engine SDI Mini
1
www.haivision.com
Generated on: 2024-01-31 21:08:57
HVS-ID-QSG-CDVR-SDIMIN2-4.6

Advertisement

loading
Need help?

Need help?

Do you have a question about the CDVR SDI Mini and is the answer not in the manual?

Questions and answers

Related Manuals for Haivision CDVR SDI Mini

Summary of Contents for Haivision CDVR SDI Mini

  • Page 1 CDVR SDI Mini (2nd Generation) Quick Start Guide Connect DVR 4.6 Display Engine SDI Mini The Haivision Connect DVR multi-site solution enables you to stream time-shifted video from an originating site to remote venues. An integral part of the multi-site solution, the DVR SDI Mini appliance can accommodate synchronized dual-stream playout, preserving the large-scale theatrical experience (IMAG) from the main site to the remote venue with perfect synchronization.
  • Page 2 Insufficient air flow around the unit can cause it to overheat and perform erratically. To ensure proper air flow, allow plenty of room around the device's ventilation holes.  Haivision offers adapter brackets to install your Mini in a server rack. See your Haivision representative or visit the Haivision Store for details.
  • Page 3 When powering ON and OFF the device, simply tap the power button. Do not hold down the button for an extended period as it will reset the device. Haivision Connect DVR 4.6 Generated on: 2024-01-31 21:08:57 CDVR SDI Mini (2nd Generation) Quick Start Guide HVS-ID-QSG-CDVR-SDIMIN2-4.6...
  • Page 4 After the system boots, if the Console UI welcome screen is not shown on the attached monitor, press Ctrl + Alt + F1 on your keyboard. Haivision Connect DVR 4.6 Generated on: 2024-01-31 21:08:57 CDVR SDI Mini (2nd Generation) Quick Start Guide HVS-ID-QSG-CDVR-SDIMIN2-4.6...
  • Page 5 Web Interface on the Mini for further configuration. Related Topics • Using the Console UI in the User's Guide • Accessing the Web Interface on the Mini Haivision Connect DVR 4.6 Generated on: 2024-01-31 21:08:57 CDVR SDI Mini (2nd Generation) Quick Start Guide HVS-ID-QSG-CDVR-SDIMIN2-4.6...
  • Page 6 The web interface opens to the Production Center screen. For step-by-step information on using the web interface, refer to the  Connect DVR User's Guide Related Topics Haivision Connect DVR 4.6 Generated on: 2024-01-31 21:08:57 CDVR SDI Mini (2nd Generation) Quick Start Guide HVS-ID-QSG-CDVR-SDIMIN2-4.6...

  • Page 7: Obtaining Documentation

    UI in your User's Guide. Obtaining Documentation This document was generated from the Haivision InfoCenter. To ensure you are reading the most up-to- date version of this content, access the documentation online at https://doc.haivision.com. You may generate a PDF at any time of the current content. See the footer of the page for the date it was generated.
