CORDLESS MINI CHAIN SAW
ORIGINAL SAFETY AND OPERATING INSTRUCTIONS
Thank you for buying a SHALL cordless mini chainsaw. Your cordless mini chainsaw has been engineered
and manufactured to SHALL's high standard for dependability, ease of operation, and operator safety. When
properly cared for, it will give you years of rugged, trouble-free performance.
WARNING:
To reduce the risk of injury, the user must read and understand the operator's manual.
Distributed by:
ZHEJIANG SHALL TOOLS CO.,LTD.
No.9 Chunchao Road, Xiaoshan Economy&Technology Zone,
Hangzhou, Zhejiang, China
www.shalltools.com
D-06
SH112004UK
Advertisement
Table of Contents
Summary of Contents for SHALL D-06
- Page 1 CORDLESS MINI CHAIN SAW ORIGINAL SAFETY AND OPERATING INSTRUCTIONS Thank you for buying a SHALL cordless mini chainsaw. Your cordless mini chainsaw has been engineered and manufactured to SHALL’s high standard for dependability, ease of operation, and operator safety. When properly cared for, it will give you years of rugged, trouble-free performance.
-
Page 2: Know Your Product

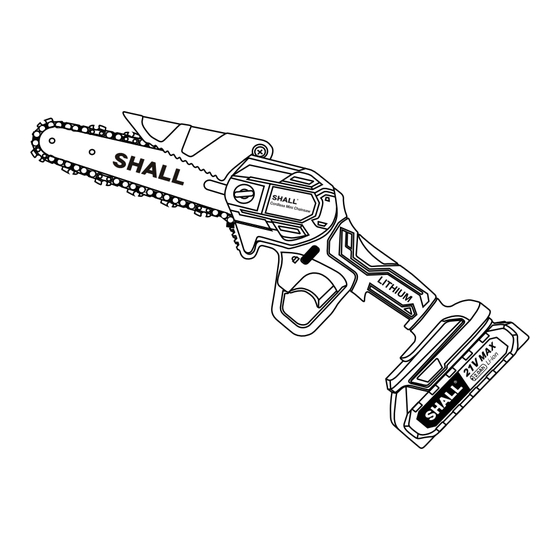

KNOW YOUR PRODUCT Safety bezel LED light Safety lock button Handle High-power battery 6 inch chain Guide plate Switch button Battery pack release button Input voltage 100-240V AC Guide plate type Sprocket Guide 6-inch guide plate Chain length 4inch & 6inch Fast charge 1.5-2 hours Chain speed... -
Page 3: Safety Instructions
SAFETY INSTRUCTIONS 1 Keep the workplace clean and orderly. Do not use the product in a messy workplace or counter top. Such a working environment is more likely to cause accidents. 2. Pay attention to the environment of the workplace.Do not work in dark and wet places.Power tools should not be exposed to rain (water);... -
Page 4: Charger Use
BATTERY PACK USE 1.The product is compatible with tailomade battery packs with 21V. 2. wWhen the battery pack is fully charged , please unplug the power. 3. The battery pack is with temperature protection, low voltage protection and over-current protection. 4.For testing purposes, the battery pack is partially charged ex-factory.It does not necessarily mean that you have received a used product. - Page 5 OPERATION INSTRUCTIONS To Adjust saw chain tension, perform the following steps: 1.Turn the screw clockwise to tighten the chain. Turn the screw counterclockwise to loosen the chain. 2.Make sure there is a 0.5cm gap between chain and guide bar . Replace the chain or clear debris,perform the following steps: 1.Remove the sprocket cover...
- Page 6 2.Adjust the tension screw counterclockwise to the end.Loosen the chain and guide . Remove the saw chain and guide bar from the chain saw the body. 3. Rest the guide plate in place on the new chain saw .(The guide hole needs to be installed to the tension screw ) Make sure the direction of the chain .
-
Page 7: Maintenance
MAINTENANCE 1.Calibrate the tightness of the chain. Calibrating the tightness of the chain on the guide plate can offer you the best using experience.If the chain is tootight on the guide plate,then there will be more friction soit will wear the guide plate and consume the battery faster.lf the chain is too looseon theguide plate,the nsometimes the chain can fall out during use. - Page 8 Herewith we, Nantong Yizheng Electromechanical Technology Co.,LTD Group 33, Caiyuan Village, Lvsigang Town, Qidong City, Jiangsu Province, P.R.C Cordless mini chainsaw D-06 / SH112004UK Low Voltage Directive 2014/35/EU EN 60745-1:2009+A11:2010 EN 60745-2-13:2009+A1:2010 EN IEC55014-1:2021 EN IEC 55014-2: 2021 EN IEC 61000-3-2:2019IA1: 2021 EN 61000-3-3:2013/A1:2019 5.
