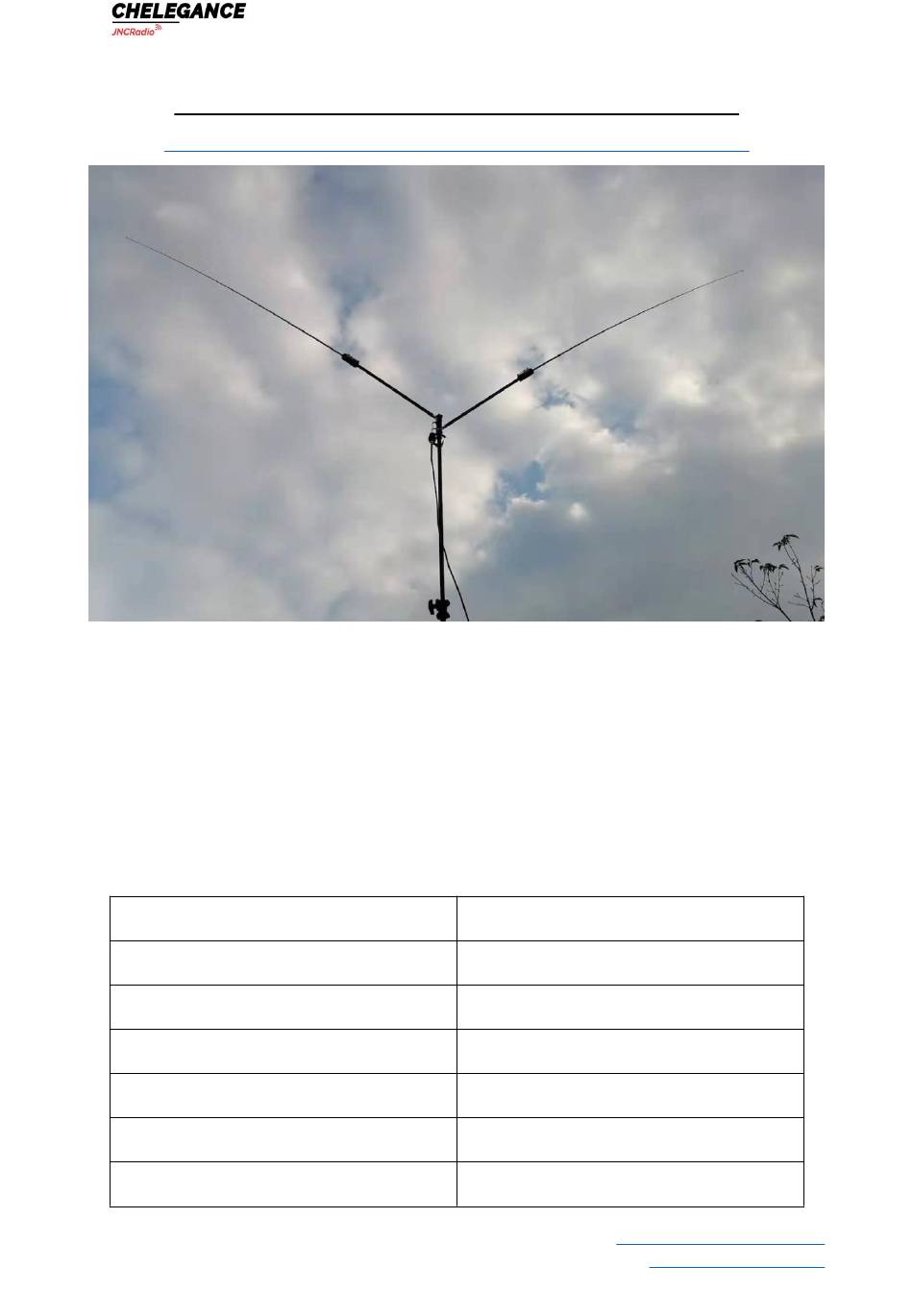

JPC-7 DP PORTABLE SHORTWAVE ANTENNA
https://chelegance.com/products/jpc-7-dp-portable-shortwave-antenna/
1-1. DESCRIPTION & SPECIFICATION
JPC-7 is a Mini portable antenna designed for field communications, simple and quick to set
up, a person can be completed in 5 minutes.
The new version of the JPC-7 optimizes the inductor coil again by using manganese steel
material, increasing the strength of the shrapnel for more reliable contact with the coil, and
adding grooves in the contact position so that the contact can be accurately seated on the
coil.
Length Collapsed
Length Extended
Power
Weight
Frequency Coverage
Connector
SWR
34.5cm
6.56m
100w
1.8 kg
40m - 6m (7MHZ - 50MHZ)
PL259
<1.3
support@chelegance.com
www.chelegance.com

Advertisement

loading
Need help?

Need help?

Do you have a question about the JPC-7 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for CHELEGANCE JPC-7

  • Page 1 1-1. DESCRIPTION & SPECIFICATION JPC-7 is a Mini portable antenna designed for field communications, simple and quick to set up, a person can be completed in 5 minutes. The new version of the JPC-7 optimizes the inductor coil again by using manganese steel...
  • Page 2: Part List

    2 X MULTI-BAND COIL ▪ 4 X ALUMINUM ARM 19X320MM ▪ 2 X TELESCOPIC WHIP 2.5M ▪ 1 X BALUN BANDAGE ▪ 1 X PORTFOLIO BAG 37X23CM 1-3. INSTALLATION GUIDE ▪ TRIPOD ADAPTOR to connect V BASE and tripod. support@chelegance.com www.chelegance.com...
  • Page 3 ▪ into the V-BASE. There are many slots on the Screw the 2 set of BRASS CONNECTORs V-BASE that you can choose to mount in, allowing the DP antenna to be positioned at different angles. ▫ V-shaped Set-up support@chelegance.com www.chelegance.com...
  • Page 4 ▫ Horizontal Set-up ▫ Right-angle Set-up ▪ Connect the ALUMINUM ARM MULTI-BAND COIL. support@chelegance.com www.chelegance.com...
  • Page 5 40-meter band: The position marked by the red line at the lower end of the coil. b. 20-meter band: The position marked by the red line at the upper end of the coil. c. 15-meter band: The position of the top two turns of the coil. support@chelegance.com www.chelegance.com...
  • Page 6 *NOTE 2 The shrapnel contact will only touch the marked coil and not the neighboring coils. 1-4. RECOMMENDATIONS ON ACCESSORIES CNtoU Chelegance TP16′(4.8 meter) ANTENNA MAST FOR MC-599/JPC-7 Reach out to us if you have any problems: support@chelegance.com HAVE FUN WITH JPC-7, 73! support@chelegance.com...
