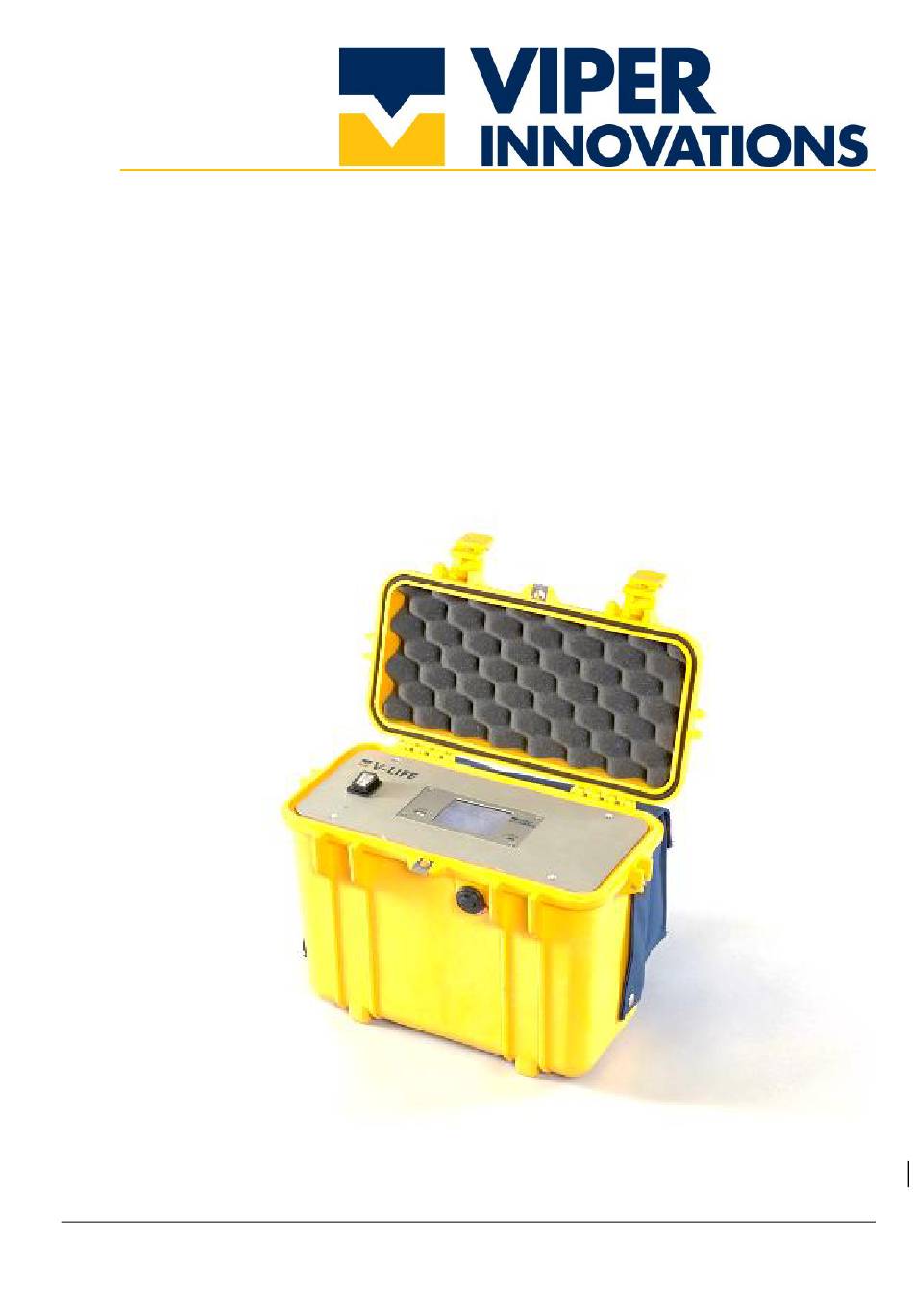

- Page 1 ® V-LIM Portable Installation and Operating Manual Document Number:5648-134487 – Rev 04 Page 1 of 13...
- Page 2 45 Martingale Way Portishead Bristol BS20 7AW Tel: +44 (0)1275 787878 Website: https://www.viperinnovations.com/ e-mail: enquires@viperinnovations.com © 2022 Viper Innovations. All rights reserved Right to technical modifications reserved. ® 5648-134487 04 V-LIM Portable Installation and Operating Manual Page 2 of 13...
-
Page 3: Table Of Contents
TABLE OF CONTENTS SECTION PAGE INTRODUCTION ......................4 Related Documents ......................4 Acronyms and Terminology..................... 4 Product Summary ......................4 SAFETY INFORMATION ....................5 Intended Use ........................5 Notices ..........................5 Personel.......................... 5 Symbols and Warnings ....................6 Operating Conditions ...................... 6 Regulatory Compliance .................... -
Page 4: Introduction

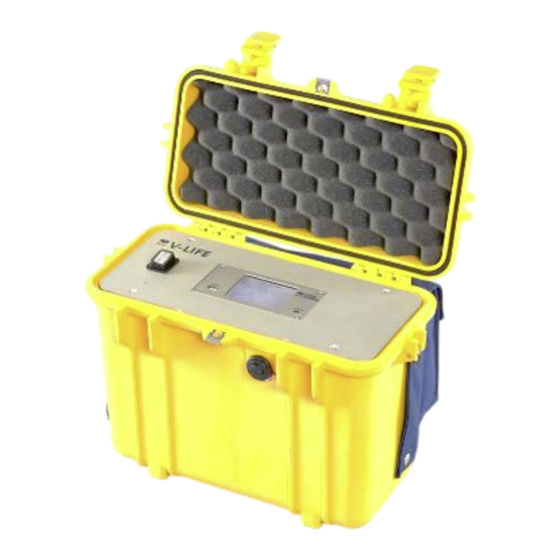

Viper – Line Integrity Monitor V-LIM PRODUCT SUMMARY The V-LIM Portable is a Line Integrity Monitor intended for use on IT (AC or DC) systems, communications line systems or systems operating communications signals over the power line (powerline and COPS) -
Page 5: Safety Information
If the LCD screen is damaged, return the unit to Viper Innovations. If the liquid crystal solution gets on your skin, wash thoroughly with soap and water. If the liquid crystal solution gets into your eyes, flush them immediately with water. -
Page 6: Symbols And Warnings
OPERATING CONDITIONS The V-LIM Portable can be operated from a 110 – 240 Vrms mains supply or a 140 – 335 V dc supply. It has a 2A fuse protecting the V-LIM portable input supply. The supply cable to the V-LIM portable must be protected at the source by a fuse (3 Amp recommended) and mains isolator or similarly rated circuit breaker. -
Page 7: Regulatory Compliance
To protect natural resources and to promote material reuse, please separate batteries from other types of waste and recycle them. ENVIRONMENTAL CONDITIONS Details on the environmental conditions for operating the V-LIM fitted in the V-LIM Portable are available in the V-LIM Installation and Operating Manual (5609-134338). ®... -
Page 8: Product Information
V-LIM are available in the V LIM Installation and Operating Manual (5609-134338). Table 3-1 shows the Function and Pin layout for each receptacle on the V-LIM Portable. The location of these receptacles are outlined in Figure 3-1 and the functions listed below: •... - Page 9 V-LIM Installation and Operating Manual (5609-134338). Figure 3-1 : Side view of the V-LIM Portable unit showing the position of receptacles. Figure 3-2 : The position of the fuse holder and power switch on the V-LIM Portable. ® 5648-134487 04...
- Page 10 Table 3-1 : Pin-out for Receptacles on the V-LIM Portable Receptacle Diameter Layout Pin Configuration Voltage Rating (mm) No. Description 4-20mA + +24 Vdc 4-20mA - Communication RS485 D+ -7/+12 Vmax RS485 D- NC Relay 1 C Relay 1 240 Vrms...
-
Page 11: Mechanical Dimensions
MECHANICAL DIMENSIONS All dimensions are in millimetres. Figure 3-3: V-LIM Portable Dimensions. ® 5648-134487 04 V-LIM Portable Installation and Operating Manual Page 11 of 13... -
Page 12: Installation
4. Press the switch on the front panel so that it is in the ON position. V-LIM OPERATION Detailed instruction on configuring and operating the V-LIM fitted in the V-LIM Portable are available in the V-LIM Installation and Operating Manual (5609-134338). -
Page 13: Product Support
PRODUCT SUPPORT Please contact Viper Innovations for any troubleshooting guidance or support required during operation of the V-LIM Portable. Viper Innovations Ltd. Unit 3A Marine View Office Park 45 Martingale Way Portishead Bristol BS20 7AW United Kingdom Tel: +44 (0)1275 787878 Website: https://www.viperinnovations.com/...
