V86 Series Ball Valves,
VC86 Series CNG Ball Valves,
Features
ECE R110 Manual Valves
Classification: Class 0
Service Pressure: 200 bar (2900 psig)
Working Pressure: 260 bar (3770 psig)
Temperature: - 40 to 105 C (-40 to 221 F)
High Pressure 2-way & 3-way Ball Valves
High pressure up to 10 000 psi (689 bar).
Blowout proof design with internally loaded stem.
Handle indicates the flow direction.
Positive stop with robust stop pin.
High flow rate with maximum orifice.
Various end ports including Dk-Lok tube port.
Various flow control with a side or bottom inlet
port on 3-way valves.
Table 1. Materials of Construction
Component
1 Body
2 Ball
3 Seat (2)
Disc Spring (2)
4
5 End Seal (2)
6 End Connector (2)
7 Stem
Bearing
8
Packing
9
Gland
10
Lever Handle
11
Optional Oval Handle
Washer
12
Stem Nut
13
Stop Pin
14
Wetted parts and lubricants listed in
Fluorinated-based lubricant
VC86 series CNG ball valves
VC86 valve with live loaded compensation disc spring reacts
on ball movement for sealing at low and high CNG pressure.
VC86 series standard PEEK and PCTFE seats are compatible
with CNG.
End Connections:
Dk-Lok tube port 12 to 16 mm OD (1/2 to 3/4 in. OD)
Pipe Thread 1/2 to 1 in.

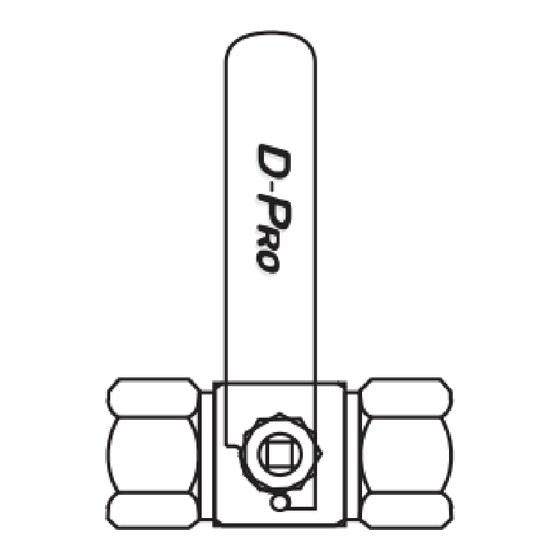

2-way Ball Valves
Optional Oval Handle
Valve Body Materials
SS316/ASTM A276 or A479 or ASTM A479
PVDF, standard for V86 series
PEEK, standard for VC86 series
TYPE 631
Disc spring, standard for VC86 series
CNG valve only.
FKM Oring for V86 series
HNBR O-ring for VC86 series
SS316/ ASTM A276 or ASTM A479
PTFE, standard for V86 series
PEEK, standard for VC86 series
Carbon PTFE
SS316/ ASTM A276 or ASTM A479
SS304 handle with vinyl sleeve
SS304
SS304
SS304
blue.
Catalog No. V86-7
March 2009
