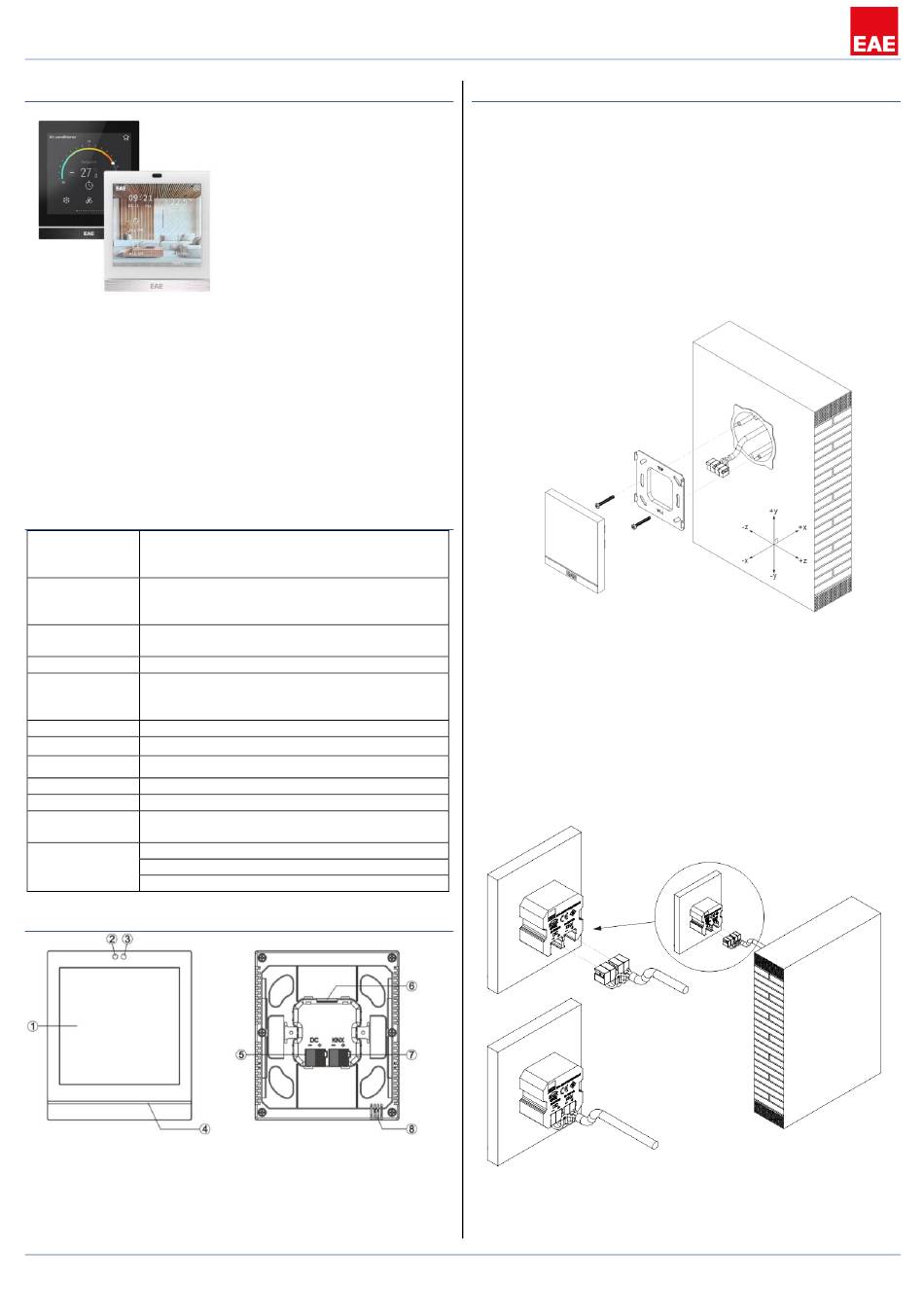

EAE TD4x-KNX Quick Start Manual

Installation Manual
TD4x-KNX 4" Touch Display
EAE KNX TD4x-KNX 4" Touch Display
Operation, Display, Description
• Energy Metering display: current, voltage, power, energy.
• 8 Time functions, 8 Scene Group functions
• 8 Logic functions, with AND, OR, XOR, Gate forwarding, Threshold comparator,
Format convert, Delay function and Staircase lighting
• Proximity sensor, Screen brightness setting, Colorful strip indication,Touch
vibration feedback
• Time and Date display, Temperature and Humidity display, Day/Night status send
• Password protection, Screen saver and Touch block
• Alarm function, Built-in temperature sensor
• Main page navigation function
• Weekly timer, support to edit on screen
Technical Data
Bus voltage
Bus Supply Bus current
Bus consumption <120mW
Voltage
Auxiliary Supply Current
Consumption
KNX Bus Supply
Connections
Auxiliary supply
Installation In a conventional 80mm or 86mm wiring box
Operation
Temperature Storage
Transport
Environment Humidity
Proximity Sensor Approximately 30cm
Dimensions 86x101.3x10.5mm (Overal Thickness 32.2mm)
Weight 0.2kg
Box Plastic, polycarbonate
In accordance with the EMC guideline and low voltage
CE
directives.
Communication Objects
Application
Number of Addresses(max)
Program
Number of assignments(max)
Device Diagram
1- Touch Display Area
2- Proximity Sensor
3- Brightness Sensor
4- Colorful Strip
© EAE Technology
Ikitelli Org.San.Bolg. Ziya Gokalp Mah. Eski Turgut Ozal Cad.
No: 20 34490 Basaksehir/Istanbul
• 4" color IPS, 480x480px resolution,
capacitive touch screen
• Switching, dimming, curtains control,
scene, value send and switch indicator
• Room Temperature Control: AC, Floor
Heating and Ventilation System
• Audio control
• RGB, RGBW, RGBCW control and
colour temperature setting
• Air Quality Measurement: PM2.5, AQI,
CO2, VOC etc.
21V-30V DC,via the KNX bus
<4.5mA/24V DC | <4mA/30V DC
24-30V DC
<86mA/24V DC | 71mA/30V DC
<2.2W
KNX BUS connection terminal
KNX AUX connection terminal
-5°C ... + 45°C
-25°C ... + 55°C
-25°C ... + 70°C
<93% (no-moisture)
937
2000
2000
5- KNX AUX Connection Terminal
6- SD Card Slot
7- KNX BUS Connection Terminal
8- Internal Temperature Sensor
www.eaetechnology.com
Tel: +90 212 549 97 13
IM TD4x-KNX 4" Touch Display R2.1
Installation
1. Install metal plate to the junction box on the wall with mounting
screws. Installation specification:
•
It is suggested that junction box should be parallel
with the wall horizon, shown as fig.1;
•
The upper direction is defined where marks with
arrow and "TOP" description on the metal plate;
•
Screwdriver should not drive too strong when installed, otherwise it
will result in the deformation of the metal plate.
•
The recommended tightening torque is 0.6 ~0.8N.M (6 ~ 8Kgf.cm)
2. Remove the connection terminal on the device and connect it correctly
according to the wiring instructions. After wiring, install the terminal to
the corresponding position, then the wiring installation is finished as
shown in Fig.2.
Fig. 1
Fig. 2
