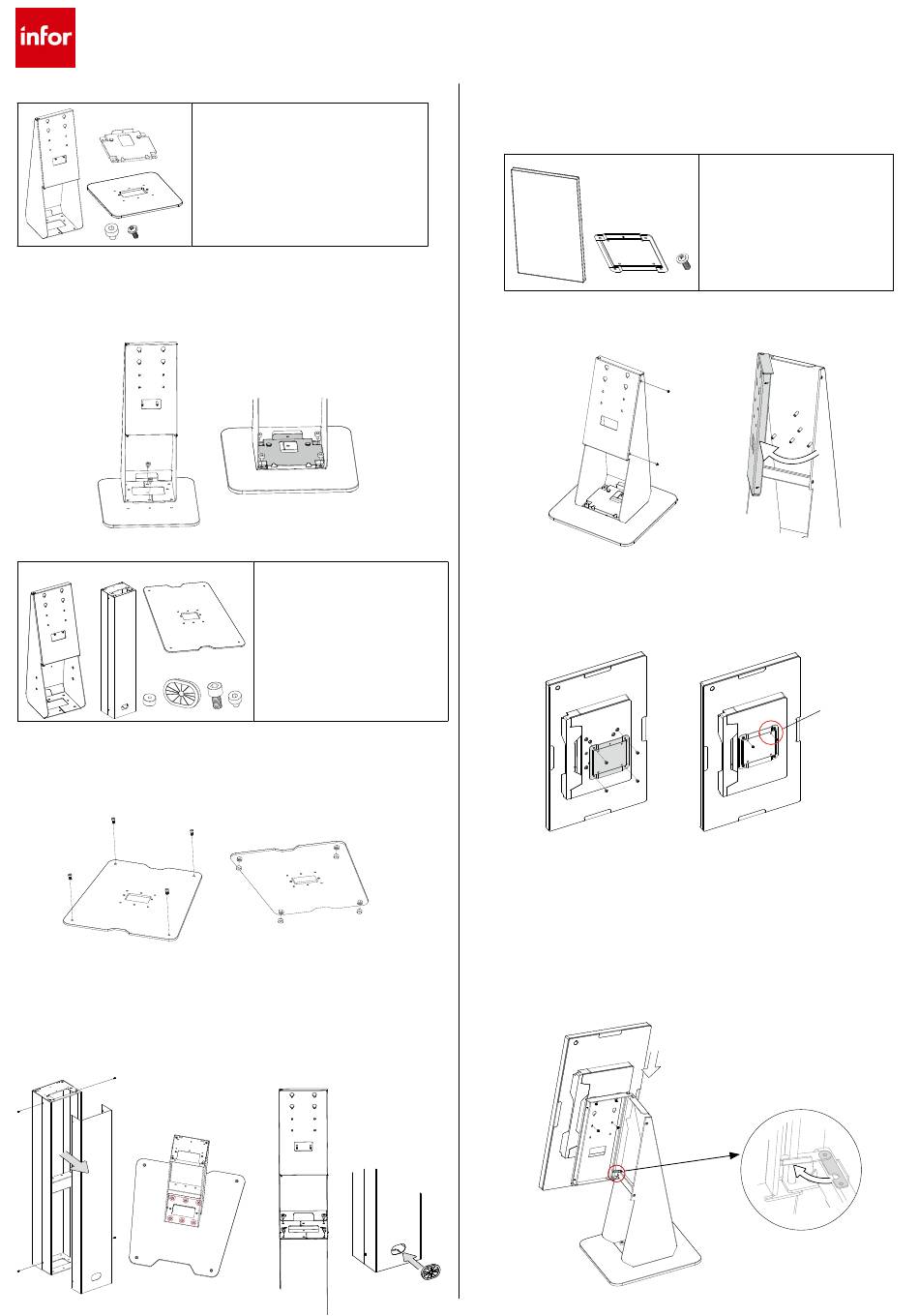

infor K2 Assembly Manual

I. Counter Stand
Install
1. Attach the counter stand to the metal plate and fasten
the screws (x2, bag A1).
2. Attach the printer fix bracet to the counter stand as
picture shown and fasten the screws (x4, bag A1).
II. Floor Stand
Install
1. Fasten the screws (x4, bag D1) at the corner of the metal
plate.
2. Attach the rubber foot pads from the bottom of the
plate. Adjust the height to fit the system if necessary.
3. Remove the screws (x4) to release the back cover of the
pole.
4. Secure the pole to the metal plate with the screws (x6,
bag D2).
5. Position the counter stand over the pole as shown and
attach with the screws (x4, bag A1) provided.
6. Place the back cover back on the pole and then install
the snap bushing in the bottom hole of the pole.
ASSEMBLY GUIDE
K2 Counter Stand & Floor Stand
1. Counter stand
2. Printer fix bracket
3. Counter metal plate
4. Screw bag A1 - Hex socket head cap
screws x6 (M6*L8)
5. Screw bag A3 - P head screws x1 (M3*L6)
1. Counter stand
2. Floor stand pole
3. Floor metal plate
4. Rubber foot pads x4
5. Snap bushing x1
6. Screw bag D1 - Hex socket head
cap screws x4 (M6*L8)
7. Screw bag A1+D2 - Hex socket
head cap screws x12 (M6*L8)
III. K2 Panel PC
After assembling the counter / floor stand, mount the K2
panel PC onto the stand. You can place it either vertically or
horizontally depends on your preference.
Install
1. Remove the screws (x2) to open the top plate bracket of
the counter stand.
2. Attach the VESA bracket to the rear of the panel PC and
fasten in place (100 x100mm VESA hole) with the screws
(x4, bag A2).
3. Use another two screws (bag A2) for the VESA holes as
picture shown. Leave at least 2~3mm gap for mounting
onto the stand.
4. Align the upper teardrop mounting holes (x2) on the
VESA bracket with the screws (x2) on the rear side of the
panel PC. Slide the panel pc until the screws are even
with the narrow end and fasten the retaining screws.
5. Fasten another screws (x2) to secure the system.
*Caution*: To prevent the top plate bracket of the counter stand
from abrupt closing, push the metal fitting as picture shown to
maintain the top plate bracket open. Remember to push the metal
fitting back before closing the top plate bracket, be careful not to
pinch your fingers.
P/N: ML-900700-000 v1.1
1. K730 panel PC
2. VESA bracket
3. Screw bag A2 - screws x8 (M4*8)
2~3
mm gap
