Summary of Contents for VDIAGTOOL V210

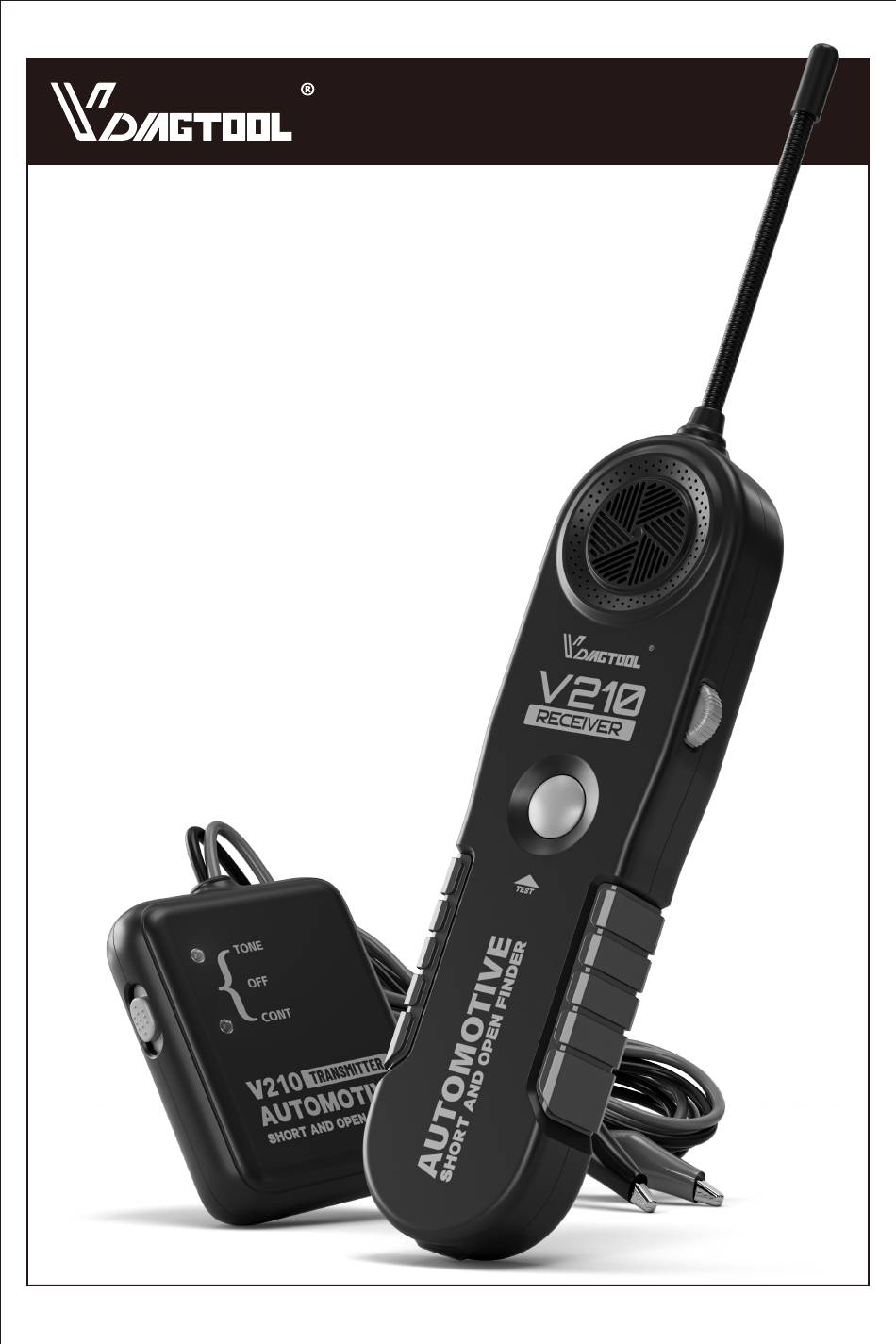

- Page 1 Automotive Short And Open Finder V210 CABLE TRACKER User Manual...
-
Page 2: Table Of Contents
2.2 The Automotive Short And Open Finder Introduction..............2 2.3 Parts List..............................3 2.4 Turning On and Off..........................3 2.5 Battery Replacement..........................3 2.5.1 V210 transmitter battery replacement................3 2.5.2 V210 receiver battery replacement..................4 2.6 How to Use the Probe...........................4 2.7 Setting the Sensitivity Level........................4 2.8 Locating Short Circuit...........................5... -
Page 3: Important Safety Information
2. Using The Automotive Short And Open Finder 2.1 Specifications V210 Transmitter Operating Voltage 6 - 42V DC Working Current 0.2 - 0.5A... -
Page 4: The Automotive Short And Open Finder Introduction
Operating Temperature 0°C to 60°C (32°F to 140°F) Storage Temperature -40°C to 70°C (-40°F to 185°F) Max Operating Relative Humidity Max Storage Relative Humidity Material Dimensions (L × W × H) 184 × 48 × 24mm (7.24 × 1.88 × 0.94 in) Weight 84g (0.185 lbs) 2.2 The Automotive Short And Open Finder Introduction... -
Page 5: Parts List
3. Speaker: Generates tone when signal is picked up by the V210 receiver. 4. On/Off & Sensitivity Rotary Switch: Turn the switch clockwise to power on the V210 receiver and increase sensitivity level; turn anti-clockwise to decrease sensitivity level and power off. -
Page 6: V210 Receiver Battery Replacement
Automotive Short And Open Finder 2.5.2 V210 receiver battery replacement: Open the battery cover at the back of the V210 receiver, replace the exhausted battery with a new one of 9V (6F22) and reinstall the battery cover. 2.6 How to Use the Probe... -
Page 7: Locating Short Circuit
2.9 Locating Open Circuit 1. Set the V210 transmitter to “TONE”, and the red LED indicator lights up. If the red LED indicator does not light up, please check the battery. -
Page 8: Wire Tracing
Note: Observe the limits and safety precautions at all times. 1. Set the switch of the V210 transmitter to “TONE”, the red LED of the transmitter lights up. If the red LED does not light up, please check the battery. - Page 9 If you move the probe sensor away from the wire, the tone will decrease and then disappear. 6. If the V210 receiver is difficult or impossible to pick up any signal, please increase the sensitivity level and try again. And double check the suspected points. See ( Figure 3 )
- Page 10 V210 receiver accordingly. In cases where the full range of the V210 receiver is required to follow the wire, it may prove advantageous to use one of the two methods described below: •...
- Page 11 Automotive Short And Open Finder Fuse Socket or Connector Black Negative Wire Red Positive Wire V210 Transmitter V210 Receiver Figure 5 Red Positive Black Negative Wire Wire V210 Transmitter V210 Receiver Figure 6...
-
Page 12: Wire Identification
2.11 Wire Identification Note: Observe the limits and safety precautions at all times. 1. Set the switch of the V210 transmitter to “TONE”, the red LED indicator will light up. If the red LED does not light up, please check the battery. -
Page 13: General Tracing Procedures
2.12.1 Working with open circuits On detection of an open circuit, the V210 transmitter injects a special radio signal into the circuit, which can be picked up by the V210 receiver probe sensor. -
Page 14: Working With Short Circuits (And Tracing Circuits)
Unlike radio signals, magnetic fields are not easily absorbed by nearby conductors and therefore can be picked up by the V210 receiver probe sensor in a wider range of situations (See Fig. 9 as below) Weakened... -
Page 15: Special Tracing Procedures
2.13 Special Tracing Procedures In all cases, first set the V210 receiver at a lower sensitivity level and increase it as necessary. Proceed as indicated in the sections of this User’s Manual applicable to your situation. -
Page 16: To Increase The Pickup Range When Tracing Wires
( see Fig.11 ) This last method should be used only as “last resource” and with the V210 receiver set to a lower sensitivity, as it could make the pinpointing of the precise location more difficult due to the much increased range. -
Page 17: Circuits With Multiple Loads And Branches
(See Fig. 12), and when these circuits are active or live, the bulk of the current injected into the circuit by the V210 transmitter will be directed to the shorted branch of the circuit. However smaller amounts of current (or stray currents) will flow to the other branches as long these provide a path to ground (i.e. -
Page 18: Warranty And Service
3. Warranty and Service 3.1 Limited One Year Warranty This warranty is expressly limited to buyer who purchase VDIAGTOOL V210 product for purposes of resale or use in the ordinary course of the buyer’s bussiness. VDIAGTOOL V210 is warranted against defects in materials and workmanship for one year ( 12 months ) from date of delivery to the buyer. - Page 19 Share us with your friends, join our community to get tutorials, support and more. Scan QR code below to subscribe to our social media: Facebook Page: https://www.facebook.com/profile.php?id=61550760872613 Facebook User Groups: https://www.facebook.com/groups/1278852129665315 Instagram: https://www.instagram.com/vdiagtool_official Twitter: https://twitter.com/VdiagTool TikTok: https://www.tiktok.com/@vdiagtool_official YouTube: https://www.youtube.com/@VdiagTool12 Reddit: https://www.reddit.com/r/vdiagtool/...
- Page 20 Automotive Short And Open Finder Invent with us, test products before they hit market, help us make better products for everyone: E-Mail: inventers@vdiagtool.com Create social media content, post online and help our community: E-Mail: marketing@vdiagtool.com...
