L O R E M I P S U M D O L O R

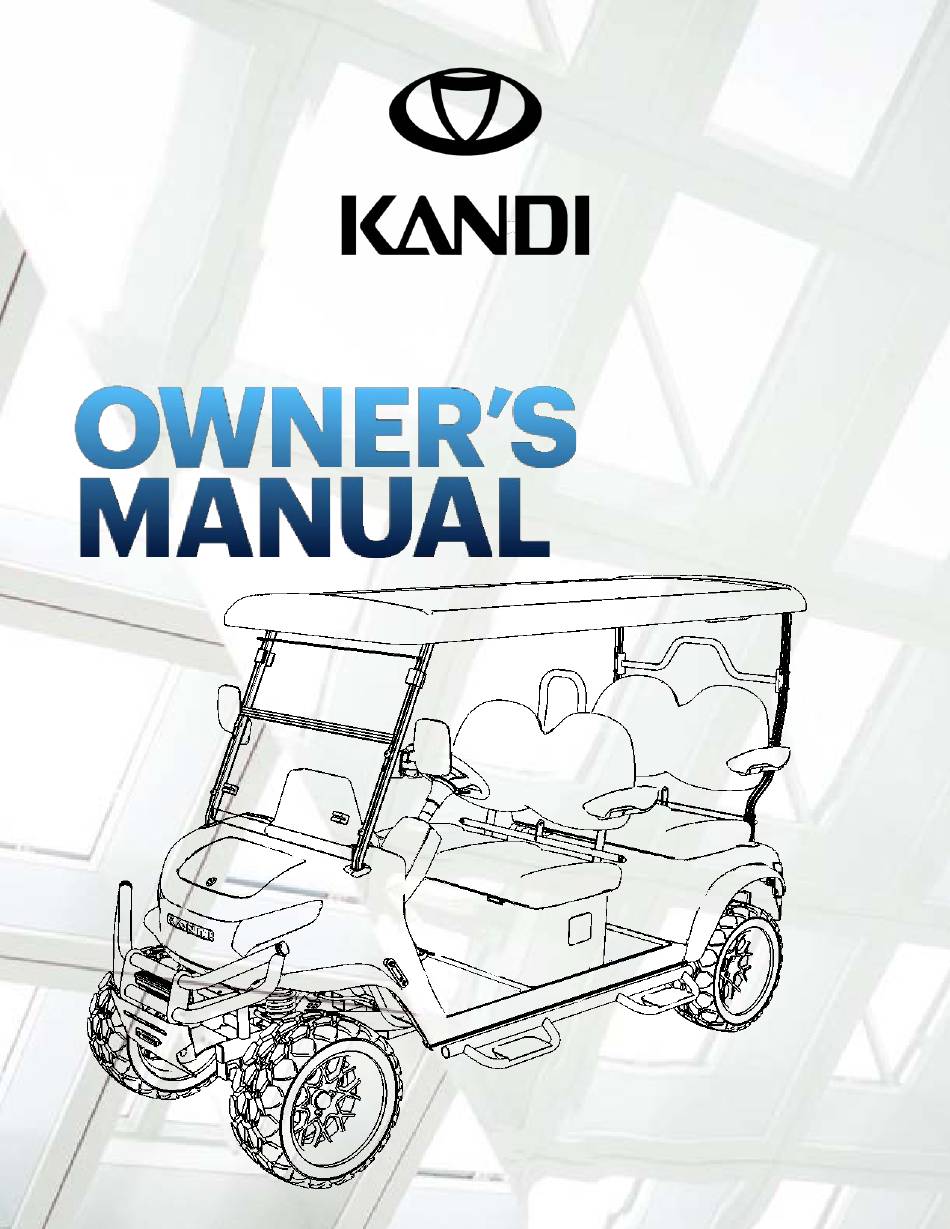

Owner's Manual
KANDI KRUISER 4PRO FORWARD ELECTRIC GOLF CART
www.KandiAmerica.com
1
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the KRUISER 4PRO and is the answer not in the manual?

Questions and answers

Related Manuals for Kandi USA KRUISER 4PRO

Summary of Contents for Kandi USA KRUISER 4PRO

  • Page 1 L O R E M I P S U M D O L O R Owner’s Manual KANDI KRUISER 4PRO FORWARD ELECTRIC GOLF CART www.KandiAmerica.com...
  • Page 2 OWNER’S MANUAL Before operating this vehicle, carefully read this manual and any owner’s manual supplements. WARNING THIS VEHICLE IS NOT INTENDED FOR USE ON RENTAL TRACKS OR FOR RACING. XC-B-2+2-1 Kandi Kruiser Electric Golf Cart Before operating this vehicle, the owner and anyone permitted to operate the vehicle must read and understand all instructions for safe operation of the vehicle, as specified in this owner’s manual.

  • Page 3: Table Of Contents

    Owner’s Manual CONTENTS 1. Introduction ......................6 1.1 Important Safety Notices ...................7 1.2 Operating Procedures ..................8 2. Understanding Safety Warnings ................12 2.1 Safety Alert Symbols ..................13 3. Vehicle Warning Decals ..................14 4. Vehicle Safety Alerts ..................... 17 5. Vehicle Identification Number (VIN) ..............25 6.
  • Page 4 Steering Column Adjustment ................32 1. Steering column adjustment lever .............. 32 7.3 Pedals ......................32 Accelerator Pedal ....................32 Parking Brake Pedal ..................33 7.4 Seatbelts ......................33 Proper Use of the Seatbelt ................34 7.5 Front and Rear Trunks ..................35 7.6 Trailer Hitch Receiver Bracket (Optional) ............
  • Page 5 Owner’s Manual 10.6 Maintenance Specifications ................51 Torque Specifications for Lug Nuts ..............51 Steering ......................51 10.7 Camber and Caster ..................52 10.8 Toe Alignment Check ..................52 10.9 Brakes ......................53 Front Brakes ...................... 53 Rear Brakes ....................... 54 Parking Brake ....................
  • Page 6 Symptom: Poor charging performance .............. 61 Symptom: Poor braking ..................61 Operating performance issues ................61 13.4 Fault Codes ....................62 ® Special Edition ....................64 One-Click Start ...................... 64 Seats ........................64 SoundExtreme Bluetooth 5.0 Soundbar ..............65 4-Wheel Disc Brakes ..................... 65 Wheels ........................

  • Page 7: Introduction

    Owner’s Manual 1. Introduction Congratulations on the purchase of your Kandi Kruiser 4Pro Forward Electric Golf Cart. We take pride in offering you a product that is engineered and manufactured to the highest performance and quality standards. We are certain that you will enjoy its superior levels of performance, reliability, riding comfort, and safety.

  • Page 8: Important Safety Notices

    1. Introduction Owner’s Manual 1.1 Important Safety Notices This vehicle is designed and manufactured for off-road use only. It is illegal to operate this vehicle on any public street, road, or highway. Such use is prohibited by law, unless otherwise provided for by the local government. Consult applicable laws and regulations before choosing a location to operate this vehicle.

  • Page 9: Operating Procedures

    1. Introduction Owner’s Manual The 4Pro Forward Electric Golf Cart can be hazardous to operate. Golf carts handle differently from other vehicles such as motorcycles, ATVs and cars. If proper precautions are not taken, rollover can occur even during routine maneuvers such as turning, driving or turning while on a hill, or driving over an obstacle.
  • Page 10 1. Introduction Owner’s Manual 7. Persons inside the vehicle while it is rolling over must keep their arms and legs inside the vehicle and must not attempt to use their arms or legs to stop the vehicle from rolling over, as doing so could lead to serious injury. Hands, arms, legs, and feet can easily be crushed by the vehicle.
  • Page 11 1. Introduction Owner’s Manual 16. Stay aware of changing terrain conditions when operating this vehicle. Do not operate this vehicle on excessively rough, slippery or loose terrain. 17. Drivers must follow proper turning procedures as described in this manual. Practice turning at low speeds before attempting to turn at higher speeds. Do not attempt to turn at excessive speeds.
  • Page 12 1. Introduction Owner’s Manual Drivers must follow proper procedures when driving over obstacles, as described in this manual. 25. Drivers must take precautions to avoid skidding or sliding. On slippery surfaces, such as ice, operate the vehicle slowly and cautiously in order to reduce the chance of skidding or sliding.

  • Page 13: Understanding Safety Warnings

    2. Understanding Safety Warnings Owner’s Manual 2. Understanding Safety Warnings ATTENTION: This vehicle is only intended for use by adults. This vehicle is not a toy. READ AND UNDERSTAND THE OWNER’S MANUAL AND ALL WARNINGS BEFORE ATTEMPTING TO OPERATE THIS VEHICLE. Drivers must ensure that they fully understand this WARNING vehicle before attempting to operate it.

  • Page 14: Safety Alert Symbols

    2. Understanding Safety Warnings Owner’s Manual 2.1 Safety Alert Symbols Safety alerts identify special instructions or procedures which, if not correctly followed, could result in personal injury, or loss of life. In order to remain safe, owners and drivers must read all safety alerts in this manual carefully. This is the safety alert symbol.

  • Page 15: Vehicle Warning Decals

    3. Vehicle Warning Decals Owner’s Manual 3. Vehicle Warning Decals Below are the warning decals that have been affixed to this vehicle.
  • Page 16 3. Vehicle Warning Decals Owner’s Manual...
  • Page 17 3. Vehicle Warning Decals Owner’s Manual...

  • Page 18: Vehicle Safety Alerts

    4. Vehicle Safety Alerts Owner’s Manual 4. Vehicle Safety Alerts The following vehicle safety alerts address many common issues that may arise during the operation and maintenance of this vehicle. Ensure that all drivers read and understand these alerts before attempting to operate the vehicle. Failure to do so could potentially result in serious injury or death.
  • Page 19 4. Vehicle Safety Alerts Owner’s Manual Washing the vehicle with a large amount of water or WARNING using a wet cloth to clean electrical components or batteries could result in serious injury or death. Excessive water droplets on electrical components could cause short circuits, burn electrical circuits or components, cause fire or leakages, or cause other issues that could result in serious injury or death.
  • Page 20 4. Vehicle Safety Alerts Owner’s Manual Attempting to stop the vehicle from rolling over could WARNING result in serious injury. As with any off-road capable vehicle, this vehicle is at risk of rollover in certain conditions. Uneven terrain or slopes that pitch the vehicle sideways, turning too fast or too sharp, or a combination of these conditions, can increase the risk of vehicle rollover.
  • Page 21 4. Vehicle Safety Alerts Owner’s Manual WARNING Improper charging could result in serious injury. Charge the battery using the supplied charging cable. Disconnect the power supply when the light on the charging indicator turns green. If the charging indicator, charging socket, or charging cable are faulty and will not charge the vehicle battery, please contact an authorized dealer or service center.
  • Page 22 4. Vehicle Safety Alerts Owner’s Manual Consuming drugs or alcohol before or while WARNING operating this vehicle could result in serious injury or death. Never consume drugs or alcohol before or while operating this vehicle. Drugs and alcohol can seriously affect the driver’s judgement, slow their reaction time, affect their balance and perception, and could result in an accident.
  • Page 23 4. Vehicle Safety Alerts Owner’s Manual Removing your hands from the steering wheel or feet WARNING from the floorboard during operation of the vehicle can result in accident or injury. Removing even one hand from the steering wheel or one foot from the floorboard can reduce the driver’s ability to control the vehicle, and doing so could cause the driver to lose their balance and fall out of the vehicle.
  • Page 24 4. Vehicle Safety Alerts Owner’s Manual Improperly operating the vehicle over obstacles WARNING could cause a loss of control, collision, or cause the vehicle to overturn. Check for any obstacles before operating the vehicle in a new area. Do not attempt to drive this vehicle over large obstacles, such as large rocks or fallen trees.
  • Page 25 4. Vehicle Safety Alerts Owner’s Manual NOTE: Wet brakes have reduced stopping ability. Always test your brakes after leaving the water and, if necessary, apply the brakes lightly several times to allow friction to dry out the brake pads. Use of improper tires or tires that have improper or WARNING uneven tire pressure, could cause a loss of control and increase the risk of an accident.

  • Page 26: Vehicle Identification Number (Vin)

    5. Vehicle Identification Number (VIN) Owner’s Manual 5. Vehicle Identification Number (VIN) The frame VIN is found on the front beam of the frame, as indicated in the illustration above. For your future reference, please record this number in the space provided below:...

  • Page 27: Vehicle Display

    6. Vehicle Display Owner’s Manual 6. Vehicle Display 6.1 Instrument Panel This vehicle has a 10-inch touchscreen display that turns on automatically when the vehicle is started and functions as the instrument panel. The touchscreen shows the speedometer, the current gear, a clock, the vehicle’s state of charge, the distance of the current trip, and the odometer.

  • Page 28: Setting The Clock

    6. Vehicle Display Owner’s Manual 6.2 Setting the Clock The touchscreen display on this vehicle is an Android tablet. The Android system settings must be accessed to change the time. Scan for video 1. Swipe up from the bottom of the screen for the navigation controls, then press the circle to go to the home screen.
  • Page 29 6. Vehicle Display Owner’s Manual 4. Inside the system settings, select “date & time” 5. Inside the date & time settings, select “automatic date & time”...
  • Page 30 6. Vehicle Display Owner’s Manual 6. Inside the automatic date & time menu, select “off” 7. Once the automatic date & time setting is turned off, select “set time” to adjust the vehicle’s clock to your local time 8. To return to the vehicle controls, either navigate back to the home screen and select the “Kandi”...

  • Page 31: Vehicle Controls & Parts

    7. Vehicle Controls & Parts Owner’s Manual 7. Vehicle Controls & Parts 7.1 Instrument Panel Switches 1. Key switch ON: Provides 48V electric power supply for operation. OFF: All circuits are turned off, and the key can be removed. 2. Gear switch Forward: When the vehicle is put into forward gear and the accelerator pedal is depressed, the vehicle will move forward.

  • Page 32: Usb Charging Port

    7. Vehicle Controls & Parts Owner’s Manual 5. USB charging port The USB charging port is located on the driver’s side of the dashboard. The charging port is rated for 5V2A. Exceeding this rating will trip the fuse. When washing the vehicle, do not allow water to enter the charging port.

  • Page 33: Steering Column Adjustment

    7. Vehicle Controls & Parts Owner’s Manual Steering Column Adjustment 1. Steering column adjustment lever To adjust the position of the steering wheel, pull the steering column adjustment lever to the down to the “open” position. Once the steering column has been adjusted, return the adjustment lever to the “lock”...

  • Page 34: Parking Brake Pedal

    7. Vehicle Controls & Parts Owner’s Manual Parking Brake Pedal The parking brake pedal is located on the driver’s side on the far left and is intended to be used to keep the vehicle motionless while it is parked. To release the parking brake, firmly depress the parking brake pedal.

  • Page 35: Proper Use Of The Seatbelt

    7. Vehicle Controls & Parts Owner’s Manual Proper Use of the Seatbelt 1. While holding the latch plate, pull the belt across your lap and chest. Ensure that the seatbelt is not twisted or caught on the vehicle, your clothing, or any equipment you are carrying.

  • Page 36: Front And Rear Trunks

    7. Vehicle Controls & Parts Owner’s Manual 7.5 Front and Rear Trunks To open the front or rear trunk, press the push-button to reveal the latch, then pull up. The maximum weight capacity for both the front CAUTION trunk and the rear trunk is 22 lbs. Exceeding this weight could cause damage to the vehicle.

  • Page 37: Safety Gear

    8. Safety Gear Owner’s Manual 8. Safety Gear Always wear clothing that is suitable for the manner in which you are using the vehicle. Wearing special protective clothing will help you to feel more comfortable and reduce the chance of injury. 8.1 Helmets A helmet is the most important piece of protective equipment that you can wear.

  • Page 38: Battery

    9. Battery Owner’s Manual 9. Battery This vehicle is equipped with a 48V 150Ah lithium iron phosphate battery, housed in a single steel enclosure, and a standard 12V starting battery. Depending on the model year of the vehicle, the batteries will be located in the compartment below either the front or rear seats.

  • Page 39: Avoiding Short Circuits

    9. Battery Owner’s Manual 9.2 Avoiding Short Circuits A short circuit could lead to an explosion that could WARNING result in serious injury or death. The current of a short circuit can reach thousands of amperes and generate high amounts of heat that can damage the battery, cause battery leakage, or even cause an explosion that could result in serious injury or death.

  • Page 40: Starting Battery

    9. Battery Owner’s Manual When the charging display shows that the battery has reached 100%, the battery is fully charged, and the charging cable should be unplugged. 9.4 12V Starting Battery This vehicle has a 12V starting battery. The 12V battery is charged by the lithium-ion battery while the vehicle is powered on, regardless of whether the vehicle is moving or stationary.
  • Page 41 9. Battery Owner’s Manual It is normal for the battery capacity to decrease as the temperature decreases. At temperatures of -10°C (14°F), the battery capacity will typically be 80%. Do not attempt to charge lithium (LiFePO4) batteries at temperatures below 0°C. While the lithium battery can be used in below-freezing temperatures, the internal battery temperature must remain above 0°C (32°F) while the battery is charged.

  • Page 42: Maintenance

    10. Maintenance Owner’s Manual 10. Maintenance 10.1 Pre-ride Inspection Before operation, the vehicle must be inspected to WARNING ensure that it is in proper working order. Failure to do so could result in serious injury or death. Before attempting to operate this vehicle, use the following checklist to verify that the vehicle is in proper working order: Check the condition of the tires and ensure Tires...

  • Page 43: Accelerator Pedal

    10. Maintenance Owner’s Manual Check for any brake fluid leakage from the brake lines, brake hoses, or brake fluid reservoir by applying the brakes firmly for 3b. Brake fluid leakage one minute. If there is any leakage, the vehicle must be inspected and serviced by an authorized dealer or service center.
  • Page 44 10. Maintenance Owner’s Manual Check that the steering system operates freely and check for any unusual looseness. Park the vehicle on level ground and turn the steering wheel in both directions. Check for Steering excessive free play, abnormal noises, or a rough feeling.

  • Page 45: Periodic Maintenance

    10. Maintenance Owner’s Manual 10.2 Periodic Maintenance Careful periodic maintenance will help keep your vehicle in the safest, most reliable condition. The inspection, adjustment, and lubrication intervals for important components are explained in the chart on the following pages. Note: This maintenance schedule is based on average driving conditions and an average vehicle speed of approximately 10 mph (16 km/h).

  • Page 46: Periodic Maintenance Schedule

    10. Maintenance Owner’s Manual 10.3 Periodic Maintenance Schedule It is recommended for inspections and adjustments WARNING marked with a “D” on the following chart to be completed by an authorized dealer or service center. NOTE: Hours are based on an average of 10 mph (16 km/h) For items listed with both hours of operations and months, perform maintenance based on interval that occurs soonest.
  • Page 47 10. Maintenance Owner’s Manual ✓ ⍟ ■ Check Clean, adjust See dealer for service Replace Monthly or every 10 hours Check for looseness or damage, tighten if loose, ✓ D Wheel bearings replace if damaged ✓ D Brake pad wear Inspect periodically ✓...

  • Page 48: Lubrication Recommendations

    10. Maintenance Owner’s Manual 10.4 Lubrication Recommendations For items listed with both hours of operations and months, perform maintenance based on interval that occurs soonest. Recommended Item Method Frequency Lube Should be about As required, every 200 Brake fluid DOT4 Only 2/3 full hours or every 2 years Transmission...

  • Page 49: Periodic Maintenance Record

    10. Maintenance Owner’s Manual 10.5 Periodic Maintenance Record Date Hours Technician Service Performed / Remarks...
  • Page 50 10. Maintenance Owner’s Manual Date Hours Technician Service Performed / Remarks...
  • Page 51 10. Maintenance Owner’s Manual Date Hours Technician Service Performed / Remarks...

  • Page 52: Maintenance Specifications

    10. Maintenance Owner’s Manual 10.6 Maintenance Specifications The tightness of the following items should be checked both periodically and after being loosened for service, and should always be adjusted to the specifications listed below. Torque Specifications for Lug Nuts NOTE: Nuts that have a cotter pin installed must only be serviced by an authorized dealer or service center.

  • Page 53: Camber And Caster

    10. Maintenance Owner’s Manual 10.7 Camber and Caster The camber and caster are not adjustable on this vehicle. 10.8 Toe Alignment Check The recommended toe alignment is 1/8” to 1/4”(3 to 6 mm) toe out. 1. Set the steering wheel so that the wheels are facing straight ahead. 2.

  • Page 54: Brakes

    10. Maintenance Owner’s Manual 10.9 Brakes Do not store or use a partial bottle of brake fluid. After using the necessary amount of brake fluid, discard the rest. Brake fluid is hygroscopic, meaning WARNING it rapidly absorbs moisture from the air. This lowers the boiling point of the brake fluid, which can cause early brake fade and could result in serious injury.

  • Page 55: Rear Brakes

    10. Maintenance Owner’s Manual Check the condition of the hydraulic disc brakes. 1. Check the brake pads for wear, damage, or looseness. 2. Check that the brake rotor is secure, and its surface is in good condition. 3. Brake pads should be changed when the thickness reaches 3/64”...

  • Page 56: Cleaning The Vehicle

    11. Cleaning the Vehicle Owner’s Manual 11. Cleaning the Vehicle 11.1 Exterior Body Panels The body panels on this vehicle should be handwashed using a commercially available automotive cleaner and a soft sponge or cloth intended for automotive use. A hose with residential water pressure set to a shower or mist setting may be used to rinse the vehicle.

  • Page 57: Wheels And Tires

    11. Cleaning the Vehicle Owner’s Manual 11.4 Wheels and Tires The wheels and tires may be cleaned with commercially available wheel and tire cleaners. When using these cleaners, ensure that they do not come in contact with the plastic components or body panels on the vehicle, as this could cause irreparable damage.

  • Page 58: Transporting The Vehicle

    12. Transporting the Vehicle Owner’s Manual 12. Transporting the Vehicle This vehicle is not designed to be transported at CAUTION speeds exceeding 20 mph. Transporting this vehicle in an enclosed trailer is highly recommended. If this vehicle is transported on an open trailer at speeds in excess of 20 mph, the owner does so at their own risk, and any resulting damage will not be covered under the vehicle warranty.

  • Page 59: Troubleshooting

    13. Troubleshooting Owner’s Manual 13. Troubleshooting The following troubleshooting information is intended only as a reference and does not cover all possible issues that may be encountered. When necessary, please refer to the information provided in this owner’s manual for inspection, adjustment, and replacement of parts.

  • Page 60: Replacing The 12V Battery

    13. Troubleshooting Owner’s Manual Replacing the 12V Battery 1. Remove the two long bolts with an 8mm wrench 2. Remove the battery hold down brackets 3. Disconnect the battery a. First, disconnect the negative battery terminal b. Then, disconnect the positive battery terminal 4.

  • Page 61: Symptom: Vehicle Won't Move

    13. Troubleshooting Owner’s Manual Symptom: Vehicle won’t move Vehicle lights and meter are working properly Possible causes: • Faulty DC contact • Wiring harness malfunction • Motor controller malfunction • Motor malfunction • Electronic gear shift fault • Gearbox malfunction •...

  • Page 62: Symptom: Poor Charging Performance

    13. Troubleshooting Owner’s Manual Symptom: Poor charging performance Possible causes: • Vehicle charger malfunction • Charger body, charging cable assembly or socket malfunction • Unreliable battery connection • Battery malfunction Symptom: Poor braking Possible causes: • Worn out front hub bearing •...

  • Page 63: Fault Codes

    13. Troubleshooting Owner’s Manual 13.4 Fault Codes The following list of fault code explanations is for reference only Contact an authorized dealer or service center for proper diagnosis of the issue. Fault Code Description 3001 Individual over-voltage alarm 2002 Individual under-voltage alarm 3002 Individual under-voltage alarm 2003...
  • Page 64 13. Troubleshooting Owner’s Manual Fault Code Description 3018 BMS internal communication fault 2030 Motor over temperature alarm 3030 Motor over temperature alarm 2031 Controller over temperature alarm 3031 Controller over temperature alarm 3032 Hardware overcurrent fault 3033 Software overcurrent fault 3034 Motor rotation failure 3035...

  • Page 65: Nfl ® Special Edition

    NFL® Special Edition Owner’s Manual ® Special Edition One-Click Start The NFL® Special Edition golf cart comes equipped with a one-click start. When the key fob is placed near the NFC sensor (2), the start button will turn blue, and the start button (1) may be pressed to start the vehicle.

  • Page 66: Soundextreme Bluetooth 5.0 Soundbar

    ® Special Edition Owner’s Manual SoundExtreme Bluetooth 5.0 Soundbar ® The NFL Special Edition golf cart includes an installed 28-inch SEB28 Elite SoundExtreme Bluetooth 5.0 soundbar that has integrated speaker controls and a rechargeable lithium-ion battery pack. This 100% waterproof, dustproof, and dirtproof soundbar has 8 marine-grade speakers (2 tweeters, 4 mid-range and 2 side mounted woofers) and a play time of 20 hours at normal volume, 6.75 hours at 75% and 4 hours at maximum volume.

  • Page 67: Running Boards

    NFL® Special Edition Owner’s Manual Running Boards ® The NFL Special Edition golf cart comes standard with running boards made of powder coated iron that make it safe and convenient to step in and out of the vehicle. Windshield ® The windshield of the NFL Special Edition golf cart features an upgraded windshield that is...

  • Page 68: Vehicle Specifications

    Vehicle Specifications Owner’s Manual Standard Specifications Length x Width x Height 118.5 x 52.5 x 76 in 300 x 133 x 193 cm Wheelbase 86 in 218 cm Ground Clearance 7 in 17.5 cm Dry Weight 1367 lbs 620 kg Max Load Capacity 882 lbs 400 kg...
