X-Stream
®
Industrial Electrically Actuated Nozzles
SM1250BE-HL – SM2000BE-HL
Installation, Operation, & Maintenance Instructions
FOR ATEX AND IECEx APPLICATIONS
98369000 REV. B
• P.O. B
1127 • E
IN 46515 • (574) 295-8330 • F
1302 W
B
A
(574) 293-9914
EST
EARDSLEY
VENUE
OX
LKHART
AX
© 2023 E
B
M
. C
., I
.
LKHART
RASS
FG
O
NC
Advertisement
Table of Contents
Summary of Contents for ELKHART BRASS X-Stream SM1250BE-HL
- Page 1 X-Stream ® Industrial Electrically Actuated Nozzles SM1250BE-HL – SM2000BE-HL Installation, Operation, & Maintenance Instructions FOR ATEX AND IECEx APPLICATIONS 98369000 REV. B • P.O. B 1127 • E IN 46515 • (574) 295-8330 • F 1302 W (574) 293-9914 EARDSLEY VENUE LKHART ©...
-
Page 2: Product Safety
PRODUCT SAFETY Important: Before installing and operating this equipment, read & study this manual thoroughly. Proper installation is essential to safe operation. In addition, the following points should be adhered to in order to ensure the safety of equipment and personnel: •... -
Page 3: Table Of Contents
TABLE OF CONTENTS I. NOZZLE CALLOUT…………………...…………………………………………..…….……..……….4 II. OVERVIEW…………………………………………………………………………………..….…..…5 III. INSTALLATION INSTRUCTIONS………………………………………………………..….….…….6 SPECIFICATIONS……………………………………………………………….…...………..……..8 OPERATING INSTRUCTIONS………………………………………………….…...…..…..…...…8 VI. NOZZLE HYDRAULIC DATA………………………………………………...……………..……..9 VII. MAINTENANCE………………………………………………………………..………………..…….10 VIII. TROUBLESHOOTING………………………………………………………………..………...……..10 *PARTS DRAWING – Please visit our website at www.elkhartbrass.com for the most current parts drawings. -
Page 4: Nozzle Callout

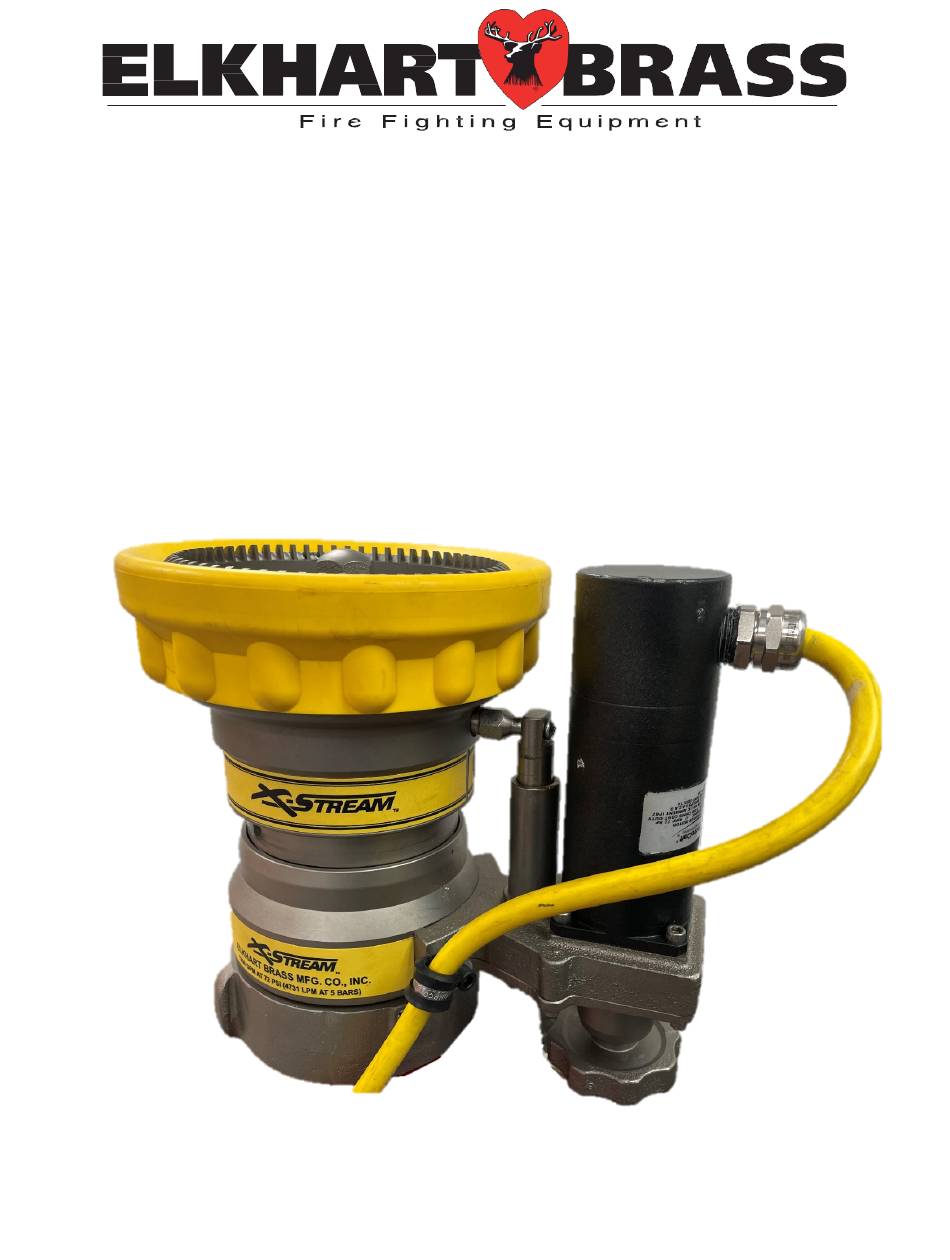

NOZZLE CALLOUT Constant Torque and Current Brass Fixed Teeth Output Motor Bumper Corrosion Resistant Nickle Plating Swivel Base Manual Override Knob Actuator Push Rod Figure 1... -
Page 5: Overview
It is designed to flow and maintain sufficient pressure to apply that flow as an effective fire stream. No manual gallonage setting is necessary; the spring mechanism within the nozzle adjusts automatically to provide the desired flow. This nozzle is specifically designed to work with the Elkhart Brass Spit-Fire ERCM system. -
Page 6: Installation Instructions
III INSTALLATION INSTRUCTIONS Installation Steps 1. Ensure the gasket is present in the nozzle before installing onto Stream Shaper (Model# 284-B). 2. Position nozzle so the motor is located on the right side of the nozzle as shown below in Figure 2. 3. - Page 7 Junction Box Wiring Terminal Blocks Figure 3...
-
Page 8: Specifications
IV SPECIFICATIONS General Specs • Input Power 240 VAC (50/60Hz.) 1 Phase • Electrical Load 0.17 AMPS • Nozzle Dimensions Ø6 7/8” X 9 5/16” L (SM-1250BE-HL) • Nozzle Dimensions Ø7 15/16” X 9 7/8” L (SM-2000BE-HL) • Nozzle Weight Approx. -
Page 9: Nozzle Hydraulic Data
VI NOZZLE HYDRAULIC DATA 284 & 284-B Stream Shaper Friction Loss 8 00 1 000 120 0 1 400 16 00 180 0 2000 Flow Rate (GPM) -
Page 10: Maintenance
C. Check for power at nozzle connection. Any problems that cannot be fixed/solved with this troubleshooting guide should be taken to your Elkhart Brass Representative to get further information. WARNING: Do not attempt to disconnect or work on any electrical equipment in this... - Page 11 NOTES:...
