Summary of Contents for Honda HHC36YXB D16

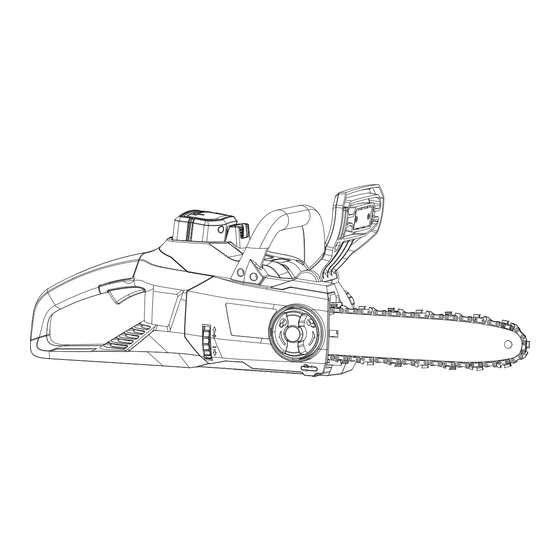

- Page 1 CORDLESS CHAIN SAW HHC36YXB D16 Owner's Manual ORIGINAL INSTRUCTIONS Thank you for choosing Honda Chain Saw. For your safe use, please read this manual before operating and save the manual properly.
- Page 3 The products shown in this manual may differ from the actual products. If a problem should arise, or if you have any questions about your product, consult your servicing dealer. Honda dealer is dedicated to your satisfaction and will be pleased to answer your questions and concerns.
-
Page 4: Table Of Contents
CONTENTS Product Instruction...............1 Warning Label................2 Safety Instructions...............3 Main Specification...............7 Product Assembly....................8 Bar and Chain Oil Filling..................10 Charging the Battery Pack.................11 Operation........................13 Daily Maintenace....................16 Troubleshooting....................17 Technical Information..................18... -
Page 5: Product Introduction
PRODUCT INTRODUCTION Rear Handle Chain Adjustment Knob Battery Pack Side Cover Front Handle Lock-off Button Chain Kickback Brake Handle Switch Trigger Saw Chain Oil-tank Cap Guide Bar Guide bar cover Side Cover Knob... -
Page 6: Warning Label
WARNING LABEL Warning labels will remind you of potential hazards that may cause harm, please read carefully. If the label falls off or the content is unclear, please contact your servicing dealer. Warning! Read the operator’s manual. WARNING - To reduce the risk of injury, user must read instruction manual. Do not expose the product to rain or wet conditions. -
Page 7: Safety Instructions
SAFETY INSTRUCTIONS GENERAL POWER TOOL SAFETY WARNINGS Read all safety warnings, instructions, illustrations and specifications, provided with this power tool. Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future reference. The term "power tool"... - Page 8 SAFETY INSTRUCTIONS If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust-related hazards. Do not let familiarity gained from frequent use of tools allow you to become complacent and ignore tool safety principles.
-
Page 9: Causes And Operator Prevention Of Kickback
SAFETY INSTRUCTIONS manufacturer or authorized service providers. SAFETY INSTRUCTIONS FOR CHAIN SAWS Keep all parts of the body away from the saw chain when the chain saw is operating. Before you start the chain saw, make sure the saw chain is not contacting anything. A moment of inattention while operating chain saws may cause entanglement of your clothing or body with the saw chain. - Page 10 SAFETY INSTRUCTIONS operator. Either of these reactions may cause you to lose control of the saw which could result in serious personal injury. Do not rely exclusively upon the safety devices built into your saw. As a chain saw user, you should take several steps to keep your cutting jobs free from accident or injury. Kickback is the result of chain saw misuse and/or incorrect operating procedures or conditions and can be avoided by taking proper precautions as given below: •...
-
Page 11: Main Specification
MAIN SPECIFICATION Model HHC36YXB D16 Rated Voltage 36V DC Rated Power 600 W Chain Speed 13.5 m/s Max. Cutting Length 406 mm Oil Tank 120 ml Guide Bar Length 455 mm Saw Chain Type Type/Model NO. : 3/8LP.050.56E 91NP Guide Bar Type Type/Model NO. -
Page 12: Product Assembly
PRODUCT ASSEMBLY INSTALLING THE SAW CHAIN AND GUIDE BAR WARNING! It's recommended to wear protective gloves when performing the installation for avoiding personal injuries. Turn the side cover knob counterclockwise to remove the side cover and then turn the chain adjustment knob down to loose the chain as much as possible. -
Page 13: Adjusting The Chain Tension
PRODUCT ASSEMBLY Fig. 3 Alignment Flange Tension Adjusting Sprocket Put on the side cover and slightly turn the chain adjustment knob up to tighten the saw chain and guide bar. And then replace the side cover and slightly tighten the side cover knob. Fig. -
Page 14: Bar And Chain Oil Filling
PRODUCT ASSEMBLY Fig. 7 BAR AND CHAIN OIL FILLING WARNING! Use a filter when filling the oil tank with bar and chain oil, as this will reduce the risk of the product's performance being affected by residue in the lubricant. To avoid oil leakage, it's recommended that the maximum oil level is 3 mm below the opening of the oil tank. -
Page 15: Charging Indicator
CHARGING THE BATTERY PACK HOW TO CHARGE THE BATTERY PACK Charge the Lithium-Ion battery pack only with the correct charger. Connect the charger to a power supply. The LED indicator on the charger will turn red. Align the raised ribs of the battery pack with the slot in the charger. Insert the battery pack into the charger. - Page 16 CHARGING THE BATTERY PACK Fig. 11 Capacity Indicator Capacity Indicator Button Indicators Fully Lit Status ■ □ 75% - 100% ■■■■ ■■■□ 50% - 75% ■■□□ 25% - 50% ■□□□ 5% - 25% □□□□ Needs to be charged If more than one indicators are on, the battery pack can be chargerd according to the real situation. If none of the indicators are on, the battery pack must be fully charged before use.
-
Page 17: Operation
OPERATION Check the position of the kickback brack handle to make sure it's engaged in the operation position. If not, pull it towards the front handle. Use both hands to grasp the front and rear handles firmly. Press and hold the lock-off button with the thumb of your right hand, and then squeeze the switch trigger with other fingers of your right hand to start the chain saw. - Page 18 OPERATION Fig. 13 Before felling is started, consider the natural lean of the tree, the location of larger branches and the wind direction to judge which way the tree will fall. Remove dirt, stones, loose bark, nails, staples and wire from the tree. Notching undercut and felling back cut Make the notch (B) 1/3 the diameter of the tree, perpendicular to the direction of falls.
- Page 19 OPERATION Follow the simple directions for easy cutting. When the log is supported along its entire length, it is cut from the top (overbuck). Fig. 16 When the log is supported on one end, cut 1/3 the diameter from the underside (underbuck). Then make the finished cut by overbucking to meet the first cut.
-
Page 20: Daily Maintenace
Do not adjust the product while it is running. Note: The main power supply must be cut off and the product must be stopped for cooling before cleaning and daily maintenance. Note: Please contact your servicing dealer to repair this product and use the genuine Honda accessories. -
Page 21: Troubleshooting
TROUBLESHOOTING Problem Possible cause Solution Battery pack not fully inserted Attach properly Motor doesn't run Battery is discharged Charge the battery pack Replace with new one or sharpen Dull / worn chain by technician Refer to the manual to tension Unsatisfactory efficiency Over-tightened chain the saw chain properly... -
Page 22: Technical Information
TECHNICAL INFORMATION Please write down the battery pack and the product serial number and also the purchasing date. This information is required when ordering parts and/or consulting technical or warranty information. Battery Pack Serial Number: Product Serial Number: Purchasing date: Product Serial Number UAMY-******* Battery Pack Serial Number... - Page 23 Manufacture: Honda Power Products (Fuzhou) Co., Ltd Address: No.7 Houyu Road, Jin’an District, Fuzhou City, Fujian Province, China. 42Y0KS00 © 2024 Honda Motor Co., Ltd. 00X42-Y0K-S000 Printed in China...
