Summary of Contents for KORE Cradlepoint W1850

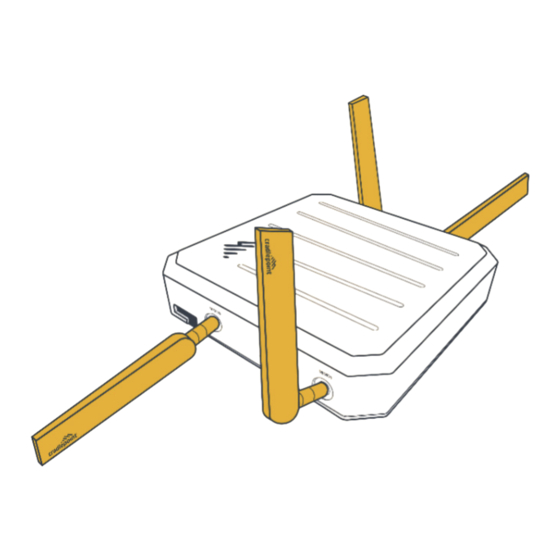

- Page 1 Quick Start Guide KORE Wireless Business Internet Premium – Cradlepoint W1850...
-
Page 2: Device Views
Device Views 2 Antenna Side A 3 Antenna Side B 1 Device Bottom 4 Back View Step 1 Attach cellular antennas Attach the four (4) modem antennas to the ports marked MAIN and DIV. Hold the antenna straight and twist the base to thread onto the device. - Page 3 Step 2 Connect LAN Sources • LAN1 is for local management of the adapter. LAN2 is for IP Passthrough. • Connect LAN2 to the WAN port of the connected networking equipment.
- Page 4 Step 3 Connect the power supply adapter to the adapter and plug into a power outlet. Or, if using PoE, connect the Ethernet cable to the LAN2 port on the adapter and plug the other end into a PoE-enabled port on the applicable network router. The LED on top of the adapter begins to light up.
- Page 5 Understanding LEDs Indicates modem status based on color. NOTE: The adapter must be powered using an approved 12VDC power source. No Light = Powered off. Blinking White = WAN online and not connected to NCM. Solid White = Connected to NCM. Blinking Green = Modem is connecting.
- Page 6 Step 3 Primary cellular solution architecture If you should require assistance, please contact support at our Help Center or 1-877-710-5673.
