U-Line H-11488 Manual

U-Line H-11488 Manual

Countertop tablet holder
Hide thumbs

Advertisement

Available languages

Available languages

Table of Contents

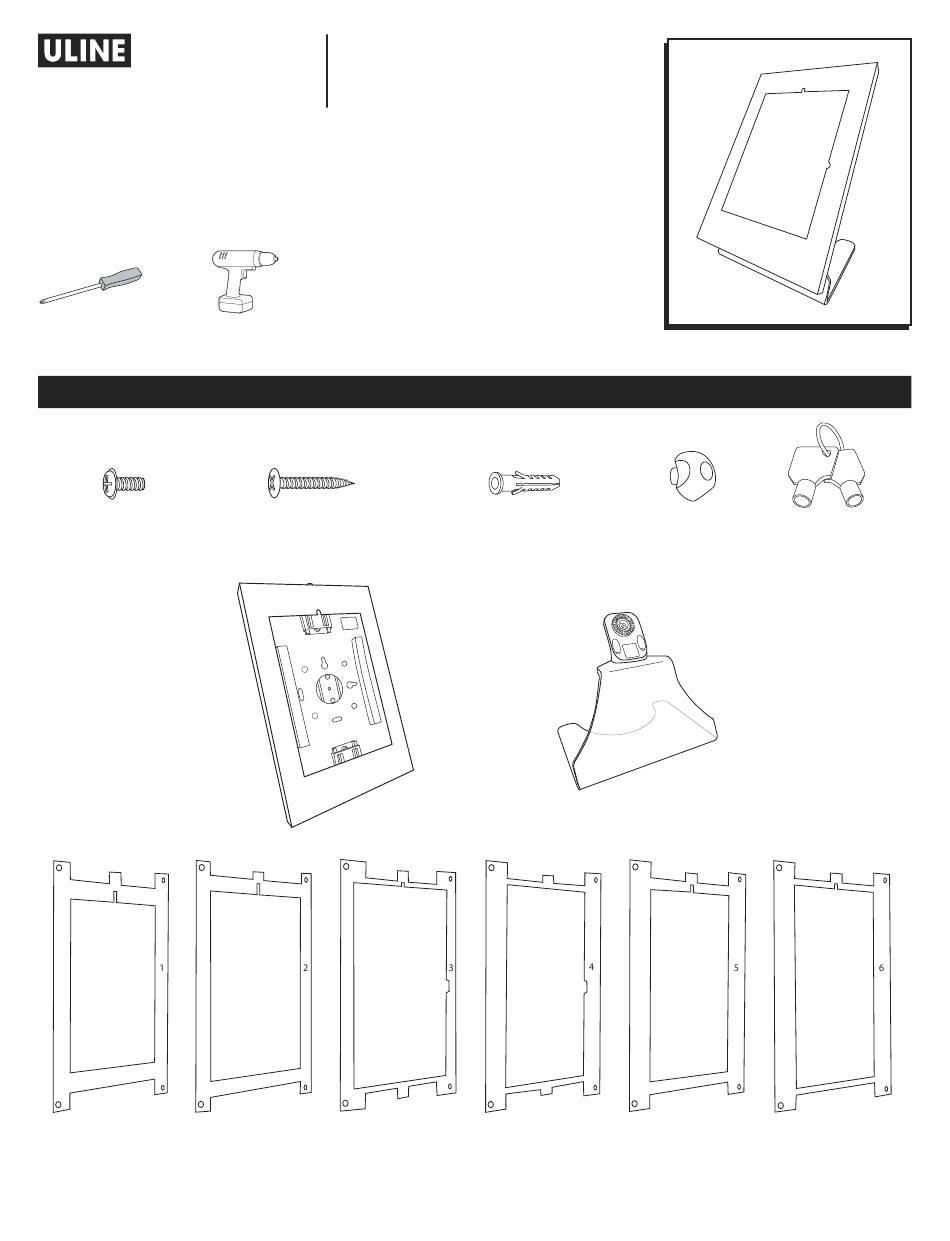

H-11488
COUNTERTOP TABLET
HOLDER
TOOLS NEEDED
Phillips
Screwdriver
(for optional wall mounting)
M4 x 12 mm Screw x 4
Panel 1
Panel 2
¥ 9.7" iPad 5,6
¥ 10.2" iPad 7, 8, 9
¥ iPad Air 1,2
¥ 10.5" iPad Air 3
¥ iPad Pro Gen 1
¥ iPad Pro Gen 2
PAGE 1 OF 12
1-800-295-5510
uline.com
Drill
ST4.6 x 30 mm Screw x 4
(for optional wall mounting)
Tablet Holder x 1
Panel 3
¥ 11" iPad Pro Gen 3, 4, 5
¥ 10.9" iPad Air 4
¥ 10.9" iPad 10
PARTS
6 x 30 mm
Drywall Anchor x 4
(for optional wall mounting)
Counter Support x 1
Panel 4
¥ 10.4" Samsung
Galaxy Tab A7
Para Español, vea páginas 5-8.
Pour le français, consulter les pages 9-12.
Knob x 1
Set of Keys x 1
Panel 5
Panel 6
¥ 10.1" Samsung
¥ 10.4" Samsung
Galaxy Tab A
Galaxy Tab S6
0624 IH-11488

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the H-11488 and is the answer not in the manual?

Questions and answers

Summary of Contents for U-Line H-11488

  • Page 1 Para Español, vea páginas 5-8. Pour le français, consulter les pages 9-12. H-11488 1-800-295-5510 uline.com COUNTERTOP TABLET HOLDER TOOLS NEEDED Phillips Drill Screwdriver (for optional wall mounting) PARTS M4 x 12 mm Screw x 4 ST4.6 x 30 mm Screw x 4...
  • Page 2 ASSEMBLY Place tablet holder into slot on counter support. 4. Open and remove cover. (See Figure 4) (See Figure 1) Figure 4 Figure 1 2. Insert the knob on back screw and tighten. 5. Place tablet into holder. (See Figure 5) (See Figure 2) NOTE: Power cord will run out of slot of bottom Figure 2...
  • Page 3 ASSEMBLY CONTINUED Choose a panel 10. Adjust cover in slots for proper alignment and fit. suitable for tablet. (See Figure 10) Refer to panel Figure 10 compatibility on page 1. (See Figure 7) Figure 7 8. Attach panel to tablet holder at four corners using 11.

  • Page 4: Optional Wall Mounting

    OPTIONAL WALL MOUNTING Undo screws on the back of the tablet holder. 4. Drill the screw holes. Remove the square piece. (See Figures 12-13) (See Figure 15) Figure 12 Front View Figure 15 5. Place 6 x 30 mm drywall anchors in the holes.

  • Page 5: Herramientas Necesarias

    H-11488 800-295-5510 uline.mx BASE DE MOSTRADOR PARA TABLETA HERRAMIENTAS NECESARIAS Desarmador Taladro de Cruz (para instalación opcional en pared) PARTES 4 Tornillos M4 x 12 mm 4 Tornillos ST4.6 x 30 mm 4 Taquetes para Panel 1 Perilla 1 Set de Llaves (para instalación opcional en pared)
  • Page 6 ENSAMBLE 1. Coloque la base para tableta en la ranura del 4. Abra y remueva la cubierta. (Vea Diagrama 4) soporte para mostrador. (Vea Diagrama 1) Diagrama 1 Diagrama 4 2. Inserte la perilla en el tornillo posterior y apriete. 5.
  • Page 7 CONTINUACIÓN DEL ENSAMBLE Escoja un panel 10. Posicione la cubierta en las ranuras para el adecuado para la alineamiento y ajuste adecuado. (Vea Diagrama 10) tableta. Consulte la compatibilidad del Diagrama 10 panel en la página 5. (Vea Diagrama 7) Diagrama 7 8.
  • Page 8 INSTALACIÓN EN PARED OPCIONAL Remueva los tornillos en la parte posterior de la 4. Perfore los orificios base para tableta. Retire la pieza cuadrada. para tornillos. (Vea Diagramas 12-13) (Vea Diagrama 15) Diagrama 12 Vista Frontal Diagrama 15 5. Coloque taquetes para panel de yeso de 6 x 30 mm en los orificios.

  • Page 9: Outils Requis

    H-11488 1 800 295-5510 uline.ca SUPPORT DE TABLETTE POUR COMPTOIR OUTILS REQUIS Tournevis Perceuse cruciforme (pour un montage mural facultatif) PIÈCES Vis M4 x 12 mm x 4 Vis ST4,6 x 30 mm x 4 Ancrage pour cloison sèche x 4 Bouton x 1 Ensemble de clés x 1...

  • Page 10: Montage

    MONTAGE Posez le support de tablette dans la fente du 4. Ouvrez et retirez la couverture de protection. support de comptoir. (Voir Figure 1) (Voir Figure 4) Figure 1 Figure 4 2. Insérez le bouton sur la vis à l'arrière et serrez. (Voir Figure 2) 5.
  • Page 11 MONTAGE SUITE Choisissez un 10. Positionnez la couverture dans les fentes de manière panneau qui à ce qu'elle soit bien alignée et bien ajustée. convient à la tablette. (Voir Figure 10) Consultez la page 9 pour vérifier la Figure 10 compatibilité...

  • Page 12: Montage Mural Facultatif

    MONTAGE MURAL FACULTATIF Dévissez les vis à l'arrière du support de tablette. 4. Percez les trous de Retirez la pièce carrée. (Voir Figures 12 et 13) fixation des vis. (Voir Figure 15) Figure 12 Vue avant Figure 15 5. Placez les ancrages pour cloison sèche de 6 x 30 mm dans les trous.
