  • Page 1 UMB ISO Converter ISOCON Operational Manual...
  • Page 2 70736 Fellbach Germany +49 711 51822 -0 met-info@otthydromet.com www.otthydromet.com All rights reserved. All content is the intellectual property of OTT HydroMet. Reprinting, duplication and translation (even as excerpts) are only permitted with the prior written consent of OTT HydroMet. Subject to technical change.
  • Page 3: Table Of Contents

    Table of contents Scope of supply Order numbers and variant code Product variants About this manual Other applicable documents General signs and symbols Explanation of warnings General safety instructions Intended use Potential misuse Pay attention to all documents Personnel qualification Operator obligations Personnel obligations Correct handling...
  • Page 4 Troubleshooting 10.1 Error elimination Repair 11.1 Customer support Notes on disposing of old devices Technical data 13.1 General technical data 13.2 Electrical data 13.3 Data transfer 13.4 Dimensions and weight <4>...
  • Page 5: Scope Of Supply

    1 Scope of supply The following items are included with delivery: – UMB ISO Converter (ISOCON) <5>...
  • Page 6: Order Numbers And Variant Code

    2 Order numbers and variant code 2.1 Product variants Variant Order number UMB ISO Converter ISOCON 8160.UISO <6>...
  • Page 7: About This Manual

    3 About this manual 3.1 Other applicable documents The following documents contain further information on installation, maintenance and calibration: 4 Quick installation guide 3.2 General signs and symbols The signs and symbols used in the operational manual have the following meaning: Practical tip This symbol indicates important and useful information.
  • Page 8: General Safety Instructions

    The equipment described in this manual must be installed, operated, maintained and repaired by qualified personnel only. 4 Obtain training from OTT HydroMet if necessary. 4.5 Operator obligations The installer is responsible for observing the safety regulations. Unqualified personnel working on the product can cause risks that could lead to serious injury.
  • Page 9: Certification

    4 Do not change or convert the product in any way. 4 Do not perform any repairs yourself. 4 Get OTT HydroMet to examine and repair any defects. 4 Ensure that the product is correctly disposed of. Do not dispose of it in household waste.
  • Page 10: Product Description

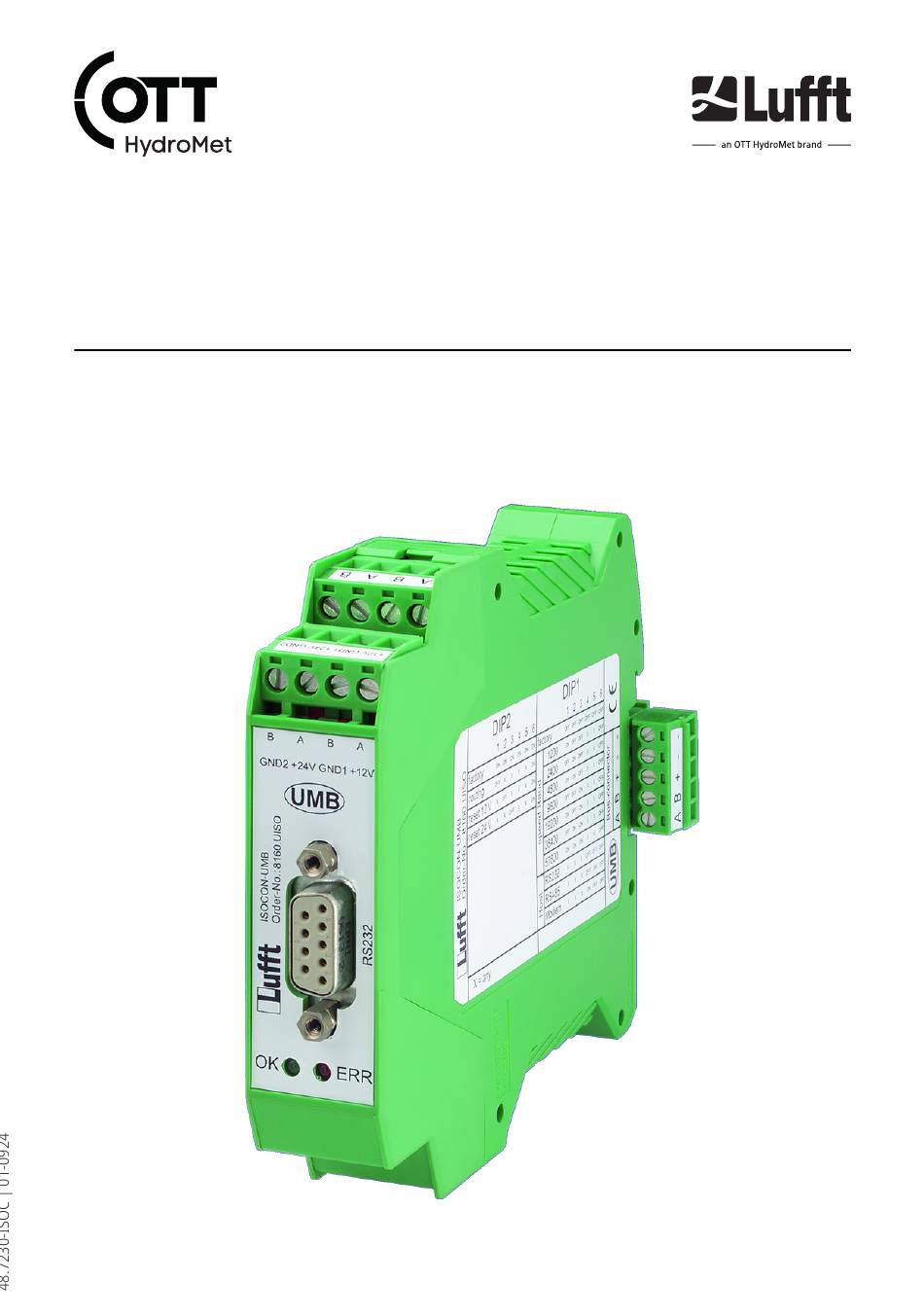

    5 Product description 5.1 Design and function The UMB ISO Converter (ISOCON) is an intelligent interface converter with electrical isolation for building UMB networks. The devices are easily installed on standard EN mounting rails and networked together by means of mounting rail bus connectors.
  • Page 11: Transport, Storage, And Unpacking

    6 Transport, storage, and unpacking 6.1 Transport 4 Transport the product always in its original packaging. 4 Ensure that the product is not mechanically stressed during transport. 6.2 Storage 4 Store within specified temperature ranges. 4 Store in dry area. 4 Store in original box where possible.
  • Page 12: Installation

    7 Installation 7.1 Mechanical installation 7.1.1 Installing mounting rail bus connector 4 Clip the mounting rail bus connector onto a grounded DIN rail. 7.2 Electrical installation 7.2.1 Electrical connections Pay attention to all safety instructions and warnings regarding electricity in the manuals of the devices installed with ISOCON.
  • Page 13 7.2.1.2 Sensor power supply and RS-485 sensor connection Pin assignment SS3–2 Pin number Assignment Comment +12 V Switchable electrically isolated power supply for all 12 V sensors GND1 Electrically isolated earth for all 12 V sensors +24 V Switchable power supply for all 24 V sensors GND2 Earth for all 24 V sensors Pin assignment SS3–1...
  • Page 14: Configuring And Installing Isocon

    7.2.2 Configuring and installing ISOCON NOTICE Damage due to static discharge! Static discharge can damage electronic equipment. 4 To discharge the electrical charge from your body before opening the housing, touch a grounded surface, e.g. the metal housing of the control panel. 4 Unscrew the top of the housing on the left and right.
  • Page 15 DIP1 switch configuration The host communication is configured with the DIP1 switch. Setting DIP1 switch Comment Factory setting OFF OFF OFF OFF OFF OFF Host communication: RS-232, baud rate 19200 baud 1200 Baud OFF OFF X OFF Firmware updates for the USB sensors are not possible at these baud rates.
  • Page 16: Commissioning

    8 Commissioning 8.1 Commissioning ISOCON 4 Ensure the power is off. 4 Configure all modules in accordance with the requirements. 4 Clip the required number of mounting rail bus connectors onto the grounded DIN rail. 4 Connect all ISOCON modules. 4 Connect one UMB sensor to each ISOCON module.
  • Page 17: Maintenance

    9 Maintenance The product does not require any maintenance. <17>...
  • Page 18: Troubleshooting

    10 Troubleshooting 10.1 Error elimination Error Possible cause Corrective action Red LED permanently lit Incorrect DIP switch configuration 4 Check DIP switch setting. Red LED lights briefly Incorrect sensor connection 4 Connect the sensor correctly. <18>...
  • Page 19: Repair

    11 Repair 11.1 Customer support 4 Have repairs carried out by OTT HydroMet service personnel. 4 Only carry out repairs yourself, if you have first consulted OTT HydroMet. 4 Contact your local representative: www.otthydromet.com/en/contact-us 4 Include the following information: – instrument model –...
  • Page 20: Notes On Disposing Of Old Devices

    In accordance with the German Electrical and Electronic Equipment Act (ElektroG; national implementation of EU Directive 2012/19/EU), OTT HydroMet takes back old devices in the Member States of the European Union and disposes of them in the proper manner. The devices that this concerns are labeled with the following symbol:...
  • Page 21: Technical Data

    13 Technical data 13.1 General technical data Specification Value Housing PA-V0, green Connections COMBICON plug-in connectors 0.2 – 2.5 mm (AWG 24 – 12) Protection type IP20 Operating temperature range -30 to +60 °C Storage temperature range -40 to +70 °C Humidity range 0 to 95 % 13.2 Electrical data Specification Value Power supply 24 V ±10 % Power consumption 50 mA at 24 V;...
  • Page 22: Dimensions And Weight

    RS-485 interface internal bus Specification Value Standard RS-485 2 wire, half-duplex Transmission type Protocol-transparent, 8 data bits, 1 stop bit, no parity Tri-State 2 bit after stop bit edge Transmission rate 19200 baud Connection Phoenix bus connector, gold, 5-pole, maximum 8 A 13.4 Dimensions and weight 99 mm 6.7 mm...
