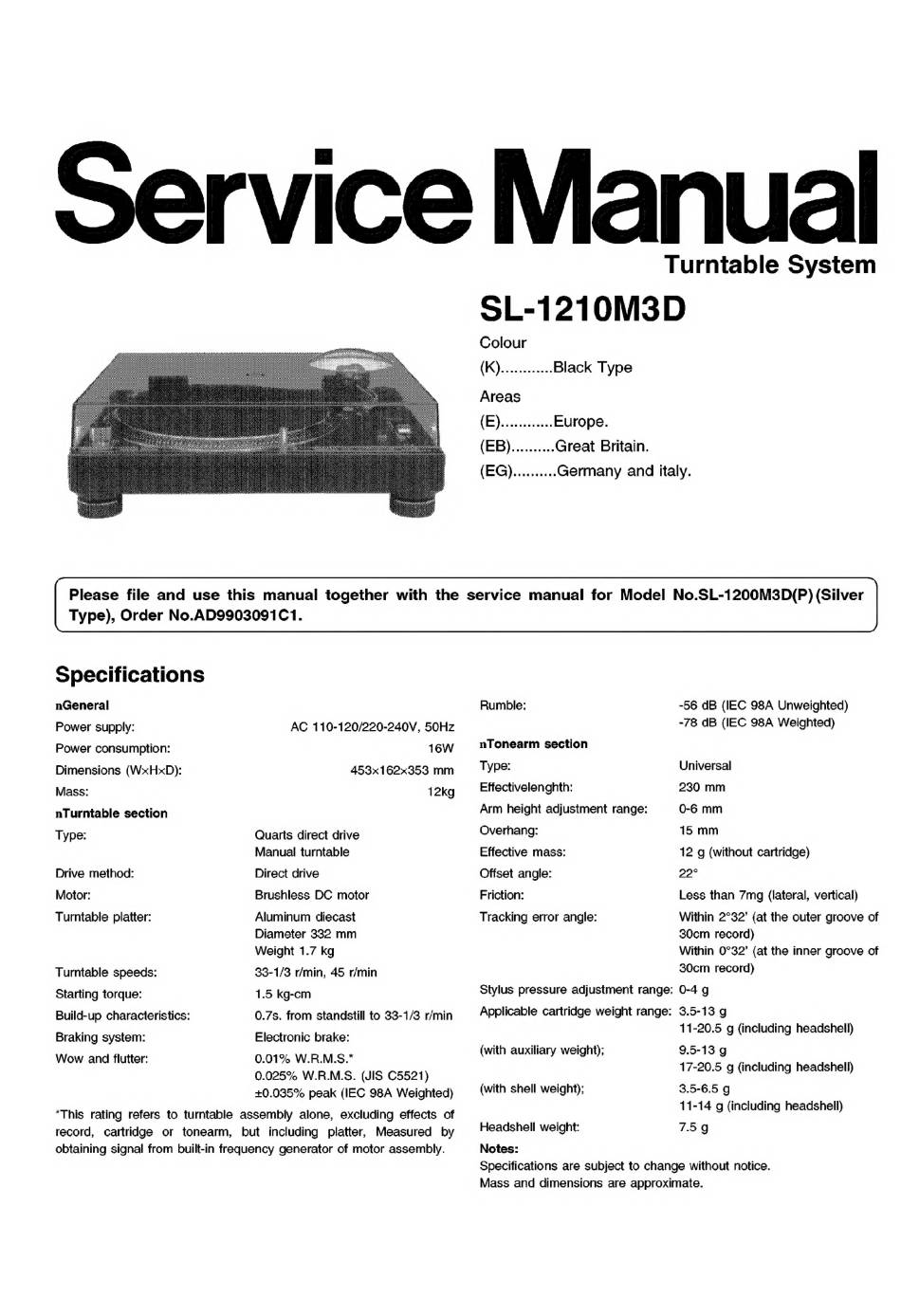

Service Manual
Turntable System
SL-1210M3D
Colour
(Roca Black Type
Areas
(EE) cssemicns Europe
Please file and use this manual together with the service manual for Model No.SL-1200M3D(P) (Silver
Type), Order No.AD9903091C1.
Specifications
nGeneral
Power supply: AC 110-120/220-240V, 50Hz
Power consumption: 16W
Dimensions (WxHxD): 453x162x353 mm
Mass: 12kg
nTurntable section
Quarts direct drive
Manual turntable
Type:
Drive method: Direct drive
Motor: Brushless DC motor
Aluminum diecast
Diameter 332 mm
Turntable platter:
Weight 1.7 kg
Turntable speeds: 33-1/3 r/min, 45 r/min
Starting torque: 1.5 kg-cm
0.7s. from standstill to 33-1/3 r/min
Electronic brake:
0.01% W.R.M.S.*
0.025% W.R.M.S. (JIS C5521)
+0.035% peak (IEC 98A Weighted)
*This rating refers to turntable assembly alone, excluding effects of
record, cartridge or tonearm, but including platter, Measured by
obtaining signal from built-in frequency generator of motor assembly.
Build-up characteristics:
Braking system:
Wow and flutter:
Rumble: -56 dB (IEC 98A Unweighted)
-78 dB (IEC 98A Weighted)
nTonearm section
Type: Universal
Effectivelenghth: 230 mm
Arm height adjustment range: 0-6 mm
Overhang: 15 mm
Effective mass: 12 g (without cartridge)
Offset angle: 22°
Friction: Less than 7mg (lateral, vertical)
Tracking error angle: Within 2°32' (at the outer groove of
30cm record)
Within 0°32' (at the inner groove of
30cm record)
Stylus pressure adjustment range: 0-4 g
Applicable cartridge weight range: 3.5-13 g
11-20.5 g {including headshell)
(with auxiliary weight); 9.5-13 g
17-20.5 g (including headshell)
(with shell weight); 3.5-6.5 g
11-14 g (including headshell)
Headshell weight: 7.59
Notes:
Specifications are subject to change without notice.
Mass and dimensions are approximate.
