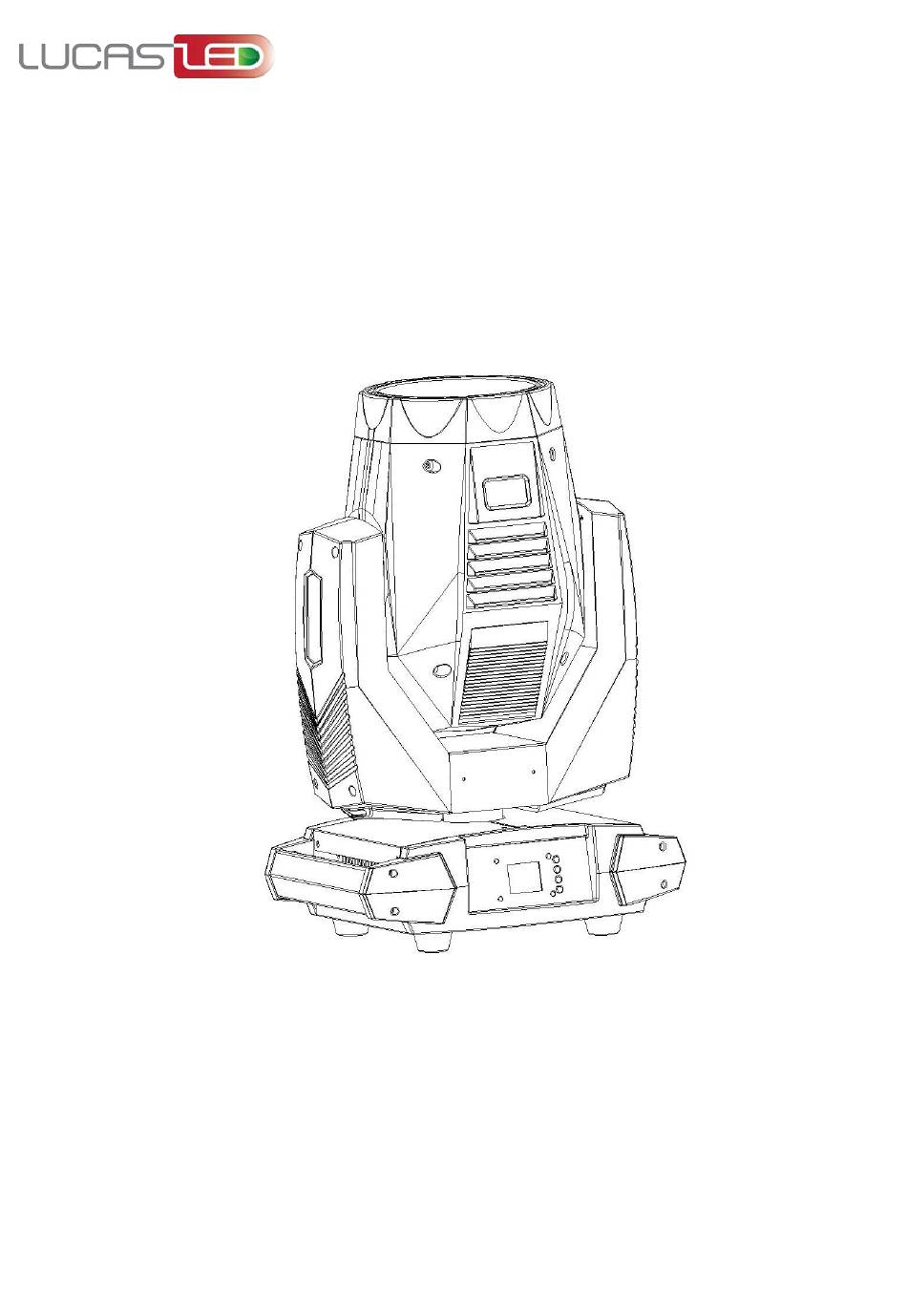

Page 1 Moving Head 15R User Manual www.lucasled.gr...
Page 2: Table Of Contents
CATALOG -------------------------------------3-4 SAFETY INSTRUCTIONS -------------------------------------5 TECHNICAL PARAMETERS --------------------------6 3:SCHEMATIC LIGHTING COMPONENTS ------------------------------------ 7-8 PACKING AND SHIPPING --------------------------8-11 SAFETY STANDARD INSTALLATION 6:AC POWER-----------------------------------------------11 7:LAMP-------------------------------------------------11-12 8:FUNCTION------------------------------------------12-14 9:DISPLAY SETTING----------------------------------14-19 10:CHANNELS-----------------------------------------19-22 11:TROUBLE SHOOTING & SOLUTION-----------22-23 12.FIXTURE CLEANING----------------------------------23 13.PHOTOMETRICS DIAGRAM------------------------24 1:SAFETY INSTRUCTIONS Please carefully read the instructions, this guide consists of important information about installation, using and maintenance.
Page 3 ◇ It is very important that connecting the ground wire to avoid electric shock. ◇ This product is for dry indoor environments. ◇ This product must be installed on the sufficient space, adjacent to interface the shortest distance of 50cm, to ensure that the lights will not crash each other.
Page 4: Technical Parameters
2.TECHNICAL PARAMETERS ◇DMX Channel: 16 Channels ◇Control Mode: DMX512 Mode, Auto Mode ◇LED LCD Display + Press button ◇Original Osram 310W bulb + Electronic Ballast ◇Pan & Tilt Motor: Ultra mute and high speed 3-Phase step motors ◇Color temperature: 8000K, life span is 4000 hours ◇13 Colors + Open, Semi Color Effect ◇9 Fixed Gobo + 5 Open ◇Prism: 8-Facet Prism and honeycomb prism could rotate reve...
Page 5: 3:Schematic Lighting Components
3:Schematic Lighting Components 1. Lens Front Cover 6:3-pin XLR DMX input 2. Lamp Body Cover 7:3-pin XLR DMX output 3.Light Arm 8:Power In 4:Display 9:Fuse 5:Press Button www.lucasled.gr...
Page 6: 4:Packing And Shipping
4:Packing And Shipping 4.1 Packing 310 Beam light is packaged by carton or standard 2in1 flight case(selectable 1in1 or 4in1), accessories items are as below Name Quantity unit User manual piece Signal line piece safe rope piece Hanging lamp piece hook and fastener Power line piece...
Page 7: 5:Safety Standard Installation
2.Seizing the equipment handles, lifting and carrying away the light from the box .Or opening the flight case cover,placing lift boom close to the light base, then equipping light hook on light base bottom. Tightening Quick Install locks. At last rising away boom to the top of the lamp from flight case, put the flight case away.
Page 8 5.2 Fixed equipment 1. Before installing fixtures,must verified rigging equipments are not damaged,and can bear at least 10 times of light's weight. Check the building can be beared at least 10 times of total weights of light, fixture, and cable accessories. 2.Insert the locked hook fastener into base mounting holes horizontally, grab the handle clockwise 90 degrees fasteners, in the same way to install a second fastener,make sure the fastener is fastened under the light base.
Page 9 and output connects to a three-pin XLR and five-pin XLR insert, first pin is grounded,then negative signal is second pin, third pin connects to the positive polarity signal, fourth and fifth are empty.In order to prevent reception reflection and interference control signal,a terminal plug must be installed on the first branch of the connected device last 3-pin output jack.
Page 10: 6:Ac Power
2. Please use the shielded twisted-pair cable,standard microphone cable can not be reliably controlled long-distance data. 6:AC POWER 6.1Fuse Power Fuse 100-240v~ 5*20main fuse 6.2 Power Connection If the external flexible cable or cord of this light is damaged, the line is up to the manufacturer or its service agent or a similar qualified person to replace, in order to avoid danger.
Page 11: 8:Function
in a horizontal position. 2 Split bulbs:Remove the cover which is written “split this cover to replace the lamp head cover” 3 Use a Phillips screwdriver to remove the fan two thumbscrews fixed side. 4 With the appropriate force to push down the bulb when the lamp cup beyond the edge of the stainless steel shrapnel, taking up the lamp.
Page 12 8.2 Color wheel Color wheel is made by 13 high standard fixed color, the user can easily select their own favorite color, to create a perfect lighting effect. Use the gobo wheel at same time is better.It can be easily transformed a colorful gobo effect. (According to customer needs may change at any time own custom various color wheel).
Page 13: 9:Display Setting
8.7 horizontal and vertical scanning Pan:540°, Tilt 270°, With 16BIT precise positioning capabilities. Horizontal and vertical speed is adjustable. 9:Display setting 9.1 Display panel BEAM MENU 1、DMX Address：1-512 2、Channel：16Channels Motor ON/OFF Shutter 3、Reset Color Gobo Light Road 4、Operation DMX／AUTO／USER 5、Lamp ON/OFF 0-255 0-255...
Page 14 Focus 0-255 Rainbow Effect 0-255 Master/Slave Master/Slave Mode 1、Manual Scanning Yes/No 2、X Direction Yes/No XY Setting Yes/No 3、Y Reverse Yes/No 4、  Speed channel real-time Power On In Middle No Signal In Running Keep Lamp On Yes/No Time 0-255 Channel 1 0-255 Channel 2 0-255...
Page 15 Channel 6 0-255 Channel 7 0-255 Channel 8 0-255 Channel 9 0-255 Channel 10 0-255 Channel 11 0-255 Channel 12 0-255 Channel 13 0-255 Channel 14 0-255 Channel 15 0-255 Channel 16 0-255 Time 0-255 Channel 1 0-255 Channel 2 0-255 Channel 3 0-255...
Page 16 Channel 6 0-255 Channel 7 0-255 Channel 8 0-255 Channel 9 0-255 Channel 10 0-255 Channel 11 0-255 Channel 12 0-255 Channel 13 0-255 Channel 14 0-255 Channel 15 0-255 Channel 16 0-255 Time 0-255 Channel 1 0-255 Channel 2 0-255 Channel 3 0-255...
Page 17 Channel 6 0-255 Channel 7 0-255 Channel 8 0-255 Channel 9 0-255 Channel 10 0-255 Channel 11 0-255 Channel 12 0-255 Channel 13 0-255 Channel 14 0-255 Channel 15 0-255 Channel 16 0-255 Time 0-255 Channel 1 0-255 Channel 2 0-255 Channel 3 0-255...
Page 18: 10:Channels
Channel 6 0-255 Channel 7 0-255 Channel 8 0-255 Channel 9 0-255 Channel 10 0-255 Channel 11 0-255 Channel 12 0-255 Channel 13 0-255 Channel 14 0-255 Channel 15 0-255 Channel 16 0-255 Choose Step 0-12 Time 0-255 2、Record DMX Record 3、All Cleaning -300-300...
Page 19 19-22 Deep Yellow 23-27 Deep Yellow + Green 28-31 Green 32-36 Green + Yellow Green 37-40 Yellow Green 41-45 Yellow Green + Blue 46-49 Blue 50-54 Blue + Rose Red 55-58 Rose Red 59-63 Rose Red+Light Blue 64-67 Light Blue 68-72 Light Blue+Light Yellow 73-76...
Page 20 52-57 Gobo9 58-63 Gobo10 64-69 Gobo11 70-75 Gobo12 76-87 Gobo13 88-95 Gobo1：Shake from slow to fast 96-103 Gobo2：Shake from slow to fast 104-111 Gobo3：Shake from slow to fast 112-119 Gobo4：Shake from slow to fast 120-127 Gobo5：Shake from slow to fast 128-135 Gobo6：Shake from slow to fast 136-143...
Page 21: Failure Scoreboard And Solutions
Frost No Frost 1-255 Frost Focus 0-255 Focus from far to near 0-255 Pan Rotate Pan Fine 0-255 Pan Fine Tilt 0-255 Tilt Rotate Tilt Fine 0-255 Tilt Fine Pan/Tilt Speed Max Speed Speed Mode 1-255 Speed from fast to slow Time Mode 1-255 Time from 0.1 second o 25.5 second...
Page 22: Clean Lights
Solving 1: After connecting control units,lighting should be working. If it is not working properly, check the signal cable plugs and wires are connected correctly. Solve 2: If the lamp is lit display, but the channel does not respond, check the address code is set correctly and DMX output voltage polarity.
Page 23: Photometrics Diagram
13. 15R BEAM Illumination www.lucasled.gr...
