Quantek C PROX SQUARE GANG Manual

SQUARE & SINGLE GANG Manual
P
roximity switch for activation and access control
Hard coated, scratch resistant, anti‐reflective, anti‐microbial Steritouch acrylic label
Entire label is sensitive
www.quantek.co.uk

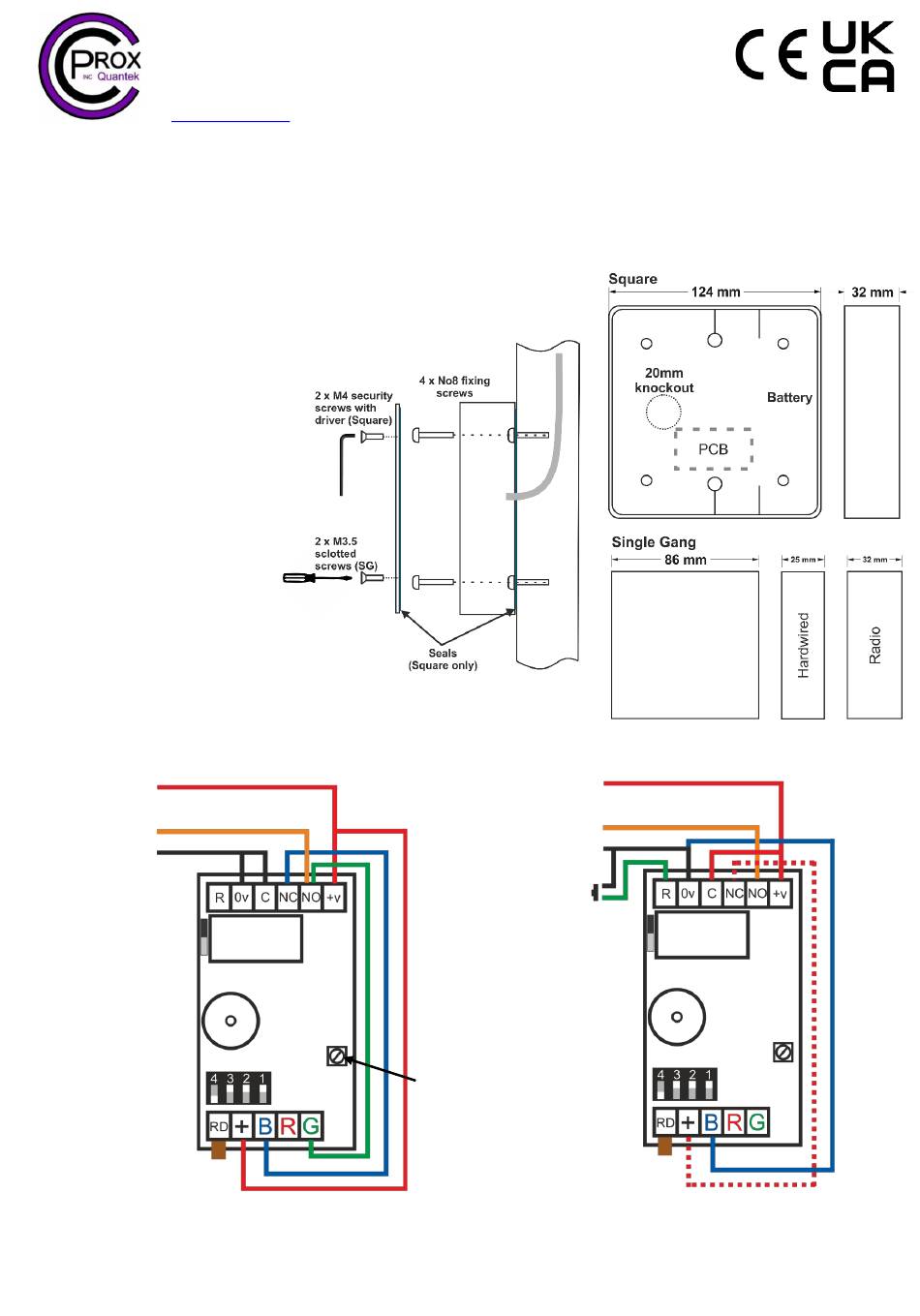

Ascertain fixing height. Use the box to mark the four fixing points.
Use knockout and place cable through if hardwiring.
Secure box to the wall with 4 x No8 (4mm) screws.
Make connections (see below, do not leave excessive cable in the back box), or connect battery clip and place battery holder in
the marked compartment, then program into the receiver (see next page)
Place signage plate back into the box and insert the two screws.
Do not over tighten screws!
Hardwired specification:
12 – 28Vdc
8mA (standby) / 35mA (max)
+18mA LEDs
Sensitivity – Touch - up to 70mm
Selectable red, green, blue LEDs
Sounder on activation
Timer 1 - 27 seconds
Latching function
Wiring diagrams
Hardwired sensor wiring. Alter LED colour configuration as required.
Normally open contacts. 0v return
12-28Vdc
NO activate
0V return
0V
Latch jumper
Momentary
Latching
Sensitivity dip-switches
1 - Low
4 - High
Remove power
alter range
re power
If using a square illuminated unit, connect the LED wires to the terminals marked on the large outer LED panel PCB, instead of the touch sensor PCB
01246 417113
Timer
1-27 seconds
Anti-clockwise to
increase time
Note: Never connect anything to RD terminal
Normally open contacts. +v return
12-28Vdc
NO activate
+V return
0V
Remote switch
N.O.
(Optional)
Sounder
