Summary of Contents for Gelec SDM6000

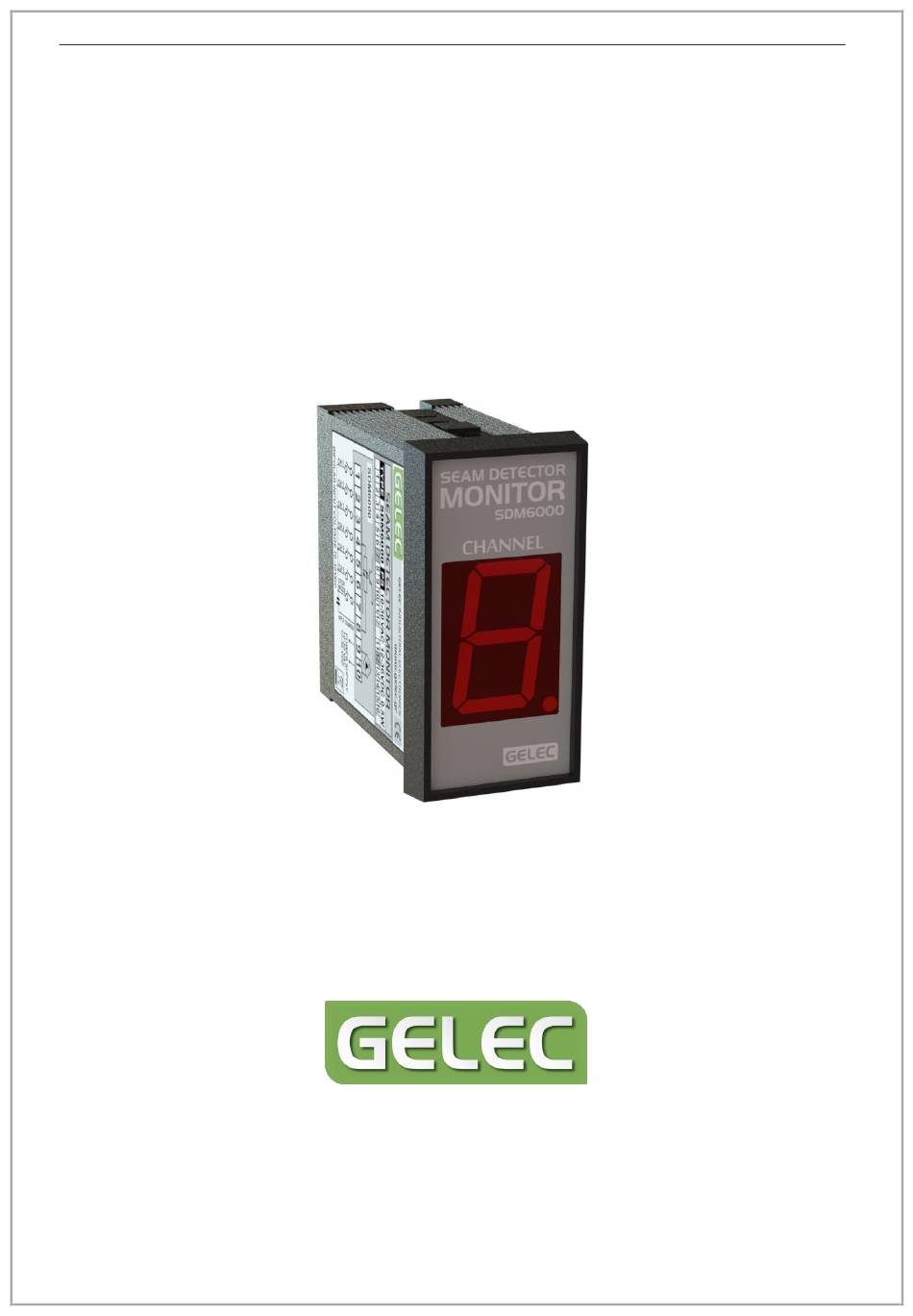

- Page 1 User’s & Technical Manual – SEAM DETECTOR MONITOR SDM6000 SEAM DETECTOR MONITOR SDM6000 INDUSTRIAL ELECTRONICS GELEC Industrial Electronics PAGE 1...
-
Page 2: Table Of Contents
PRECAUTIONS! ................................3 1. MANUFACTURER’S WARRANTY, GENERAL TERMS AND CONDITIONS............4 2. DISPOSAL OF OLD ELECTRICAL & ELECTRONIC EQUIPMENT ............... 5 3. SEAM DETECTOR MONITOR SDM6000 ......................5 4. GENERAL DESCRIPTION ............................6 5. SDM6000 OVERVIEW ............................7 6. OPERATION ................................7 7. -
Page 3: Precautions
User’s & Technical Manual – SEAM DETECTOR MONITOR SDM6000 PRECAUTIONS! There are no serviceable parts inside the SDM6000 unit. Not to be opened by any unauthorized person. All repairs to the device must be carried out by the manufacturer or a qualified service engineer. -
Page 4: Manufacturer's Warranty, General Terms And Conditions
Any necessary replacement parts and necessary repair work are totally covered free of charge. All products are designed and produced by the manufacturer GELEC & Co. LP to be in compliance with the EU norms applying to them. GELEC is not responsible for direct or indirect damages or malfunction caused by improper use or installation of the SDM6000. -
Page 5: Disposal Of Old Electrical & Electronic Equipment
In order to ensure the best performance and effective use of the SDM6000, we recommend that you read the information in this manual carefully and follow the instructions contained. -
Page 6: General Description
SEAM DETECTOR MONITOR SDM6000 GENERAL DESCRIPTION The Seam Detector Monitor SDM6000 is an electronic digital indication device. It is an optional accessory of the Gelec Seam Detection System and it is designed to support machines with up to six fabric channels. -
Page 7: Sdm6000 Overview
OPERATION INDICATION MODE / STOP MODE Each SDM6000 uses the signals of (up to) six Seam Detector Units with its inputs #1 - #6, while input #7 is used for the STOP MODE activation. In INDICATION MODE the SDM6000 checks constantly its first six inputs (#1-#6) which are connected to each channel’s SD Unit and indicates for a few seconds the number of the... - Page 8 BLINKING ZERO (STOP MODE) When the operator sets the machine in STOP MODE (e.g. for sampling or unloading), input #7 of the SDM6000 is enabled as well and the circling indication turns into a blinking zero until the following seam passage.
-
Page 9: Electrical Section
OPTO ISOLATED INPUTS SDM6000 has 7 bipolar opto-isolated inputs, six for channel inputs and one for function control (STOP MODE). The input voltage may vary from 10VDC to 40VDC and the input current from 5mA to 20mA according to input voltage. - Page 10 User’s & Technical Manual – SEAM DETECTOR MONITOR SDM6000 CONNECTION DIAGRAM FOR SDM6000 GELEC Industrial Electronics PAGE 10...
-
Page 11: Dimensions
User’s & Technical Manual – SEAM DETECTOR MONITOR SDM6000 DIMENSIONS GELEC Industrial Electronics PAGE 11... -
Page 12: Technical Specifications
User’s & Technical Manual – SEAM DETECTOR MONITOR SDM6000 TECHNICAL SPECIFICATIONS GENERAL DATA Unit absolute dimensions (mm) 72 x 72 x 36 Housing area dimensions (mm) 83,5 x 88 x 36 Weight 80 gr Enclosure Self-extinguishing PPO, black (DIN 43700) - Page 13 User’s & Technical Manual – SEAM DETECTOR MONITOR SDM6000 INDUSTRIAL ELECTRONICS 4 Kikladon Road Maroussi, Athens – Greece, GR-15125 Telephone: +30 210 6144074 - Fax: +30 210 6144074 - info@gelec.gr GELEC Industrial Electronics PAGE 13...
