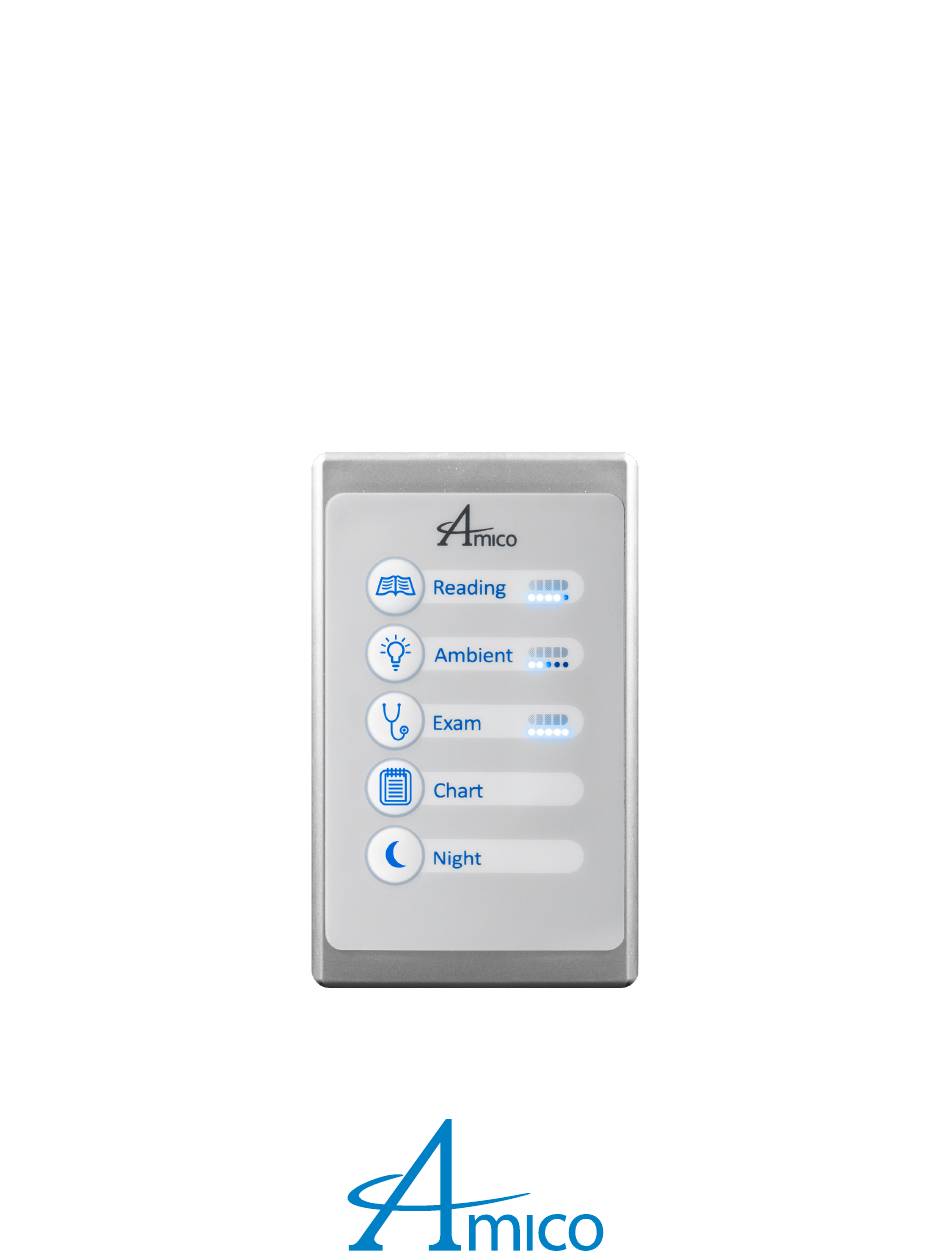

- Page 1 Operating and Maintenance Instructions LightMaster Multifunction Keypad...
-
Page 2: Table Of Contents
Contents Introduction Symbols Used in This Manual Safety Instructions Tools/Materials Required Installing LightMaster Multifunction Keypad Mounting Drawings Wiring Drawings Disinfecting, Cleaning, and Sterilization Technical Data of the LightMaster Multifunction Keypad Warranty Policy Notes Amico Lights Corporation... -
Page 3: Introduction
Introduction Thank you for your purchase of the LightMaster Multifunction Keypad. This installation manual gives you instructions on how to install the LightMaster Multifunction Keypad. Please read the following instructions carefully and adhere to the safety guidelines and standards. If you need information for further instructions on operation, maintenance, and/or descriptions of the product please feel free to contact Amico’s Customer Service at:... -
Page 4: Symbols Used In This Manual
In combination with the following signal words the warning symbols means: DANGER Can lead to death or serious injury Can lead to injury WARNING UL Listed certification mark Trademarks: All trade names mentioned in these instructions are the exclusive property of the relevant manufacturers. Amico Lights Corporation... -
Page 5: Safety Instructions
Reading, Ambient, Direct Light and Spot Lights that may be in the room. With infection control in mind, Amico uses a Mylar Overlay on each keypad for ease of cleaning. The LightMaster keypad is also designed as a low voltage device to ensure the highest levels of safety are met. -
Page 6: Tools/Materials Required
1. 1/8” Flat Head Screwdriver 2. Silicone Wire Nuts 3. Single gang electrical box for wall installation (Box provided with headwall) Note: Before proceeding with the installation, make sure to remove the power to the electrical power supply. Amico Lights Corporation... -
Page 7: Installing Lightmaster Multifunction Keypad
Installing LightMaster Multifunction Keypad Connect the Master Controller input wires (Black = Line / White = Neutral) to the line voltage and use wago connectors. NOTE: Do not turn on the power during wiring work. Connect the ground wire from the main line power to the ground wire in the fixture. - Page 8 Installing LightMaster Multifunction Keypad Connect wires for loads and dimmings as per provided wiring diagram. NOTE: The neutral wires from all the drivers should be connected altogether with the input neutral of the LightMaster. Connect two wires from the Master Controller low voltage output to the top terminal block on the keypad.
- Page 9 Installing LightMaster Multifunction Keypad Once powered the keypads should communicate with each other as shown below. After installing the keypad, check all functions work properly. www.amico.com...
-
Page 10: Mounting Drawings
Mounting Drawings # 6 screws can be used to mount the LightMaster controller and keypad. 7.087" 7.087in 1.831in 1.988in 1.831" 1.988" 6.535" 6.535in LightMaster Controller 3.82" 3.43" Ø0.17" Security Power Unit Amico Lights Corporation... - Page 11 Mounting Drawings # 6 screws can be used to mount the LightMaster controller and keypad. 0.17 0.83 70mm 2.76in 0.28 X 82° 117mm 83mm 4.61in 3.28in Keypad www.amico.com...
-
Page 12: Wiring Drawings
120-277V Ground Normal KEYPAD 2(OPTIONAL) Label Emergency /Critical Power KEYPAD 3(OPTIONAL) Emergency/Critical Power 120-277V Normal OR Emergency/Critical Power LightMaster System With Secondary Power Unit DIM - DIM + LOAD 5 PILLOW SPEAKER DIM - DIM + LOAD 4 NURSE DIM -... -
Page 13: Disinfecting, Cleaning, And Sterilization
• Hexaquart plus • Sagrotan – fast disinfecting cleaner NOTICE: The local government regulations for disinfection must also be observed in addition to these instructions. Technical Data of the LightMaster Multifunction Keypad Input Voltage 120-277 Volts, 50/60Hz Output Voltage 120-277 Volts, 50/60Hz Maximum Load 2.5 amps Resistive, 1.8 amps Ballast at 120 Volts,... -
Page 14: Warranty Policy
Amico Lights Corporation warrants its products against defective materials and workmanship for twelve (12) months from the date of shipment. Within this period, Amico Lights Corporation will repair or replace any part on site or at the factory which is proven to be defective at Amico Lights Corporation’s cost. -
Page 15: Notes
Notes www.amico.com... - Page 16 Amico Lights Corporation | 122-B East Beaver Creek Road, Richmond Hill, ON L4B 1G6, Canada Toll Free Phone: 1.877.462.6426 | Toll Free Fax: 1.866.440.4986 | Tel: 905.764.0800 | Fax: 905.764.0862 Email: alt-sales@amico.com | www.amico.com ALT-IM-LIGHTMASTER-MULTIFUNCTION-KEYPAD 08.26.2024...
