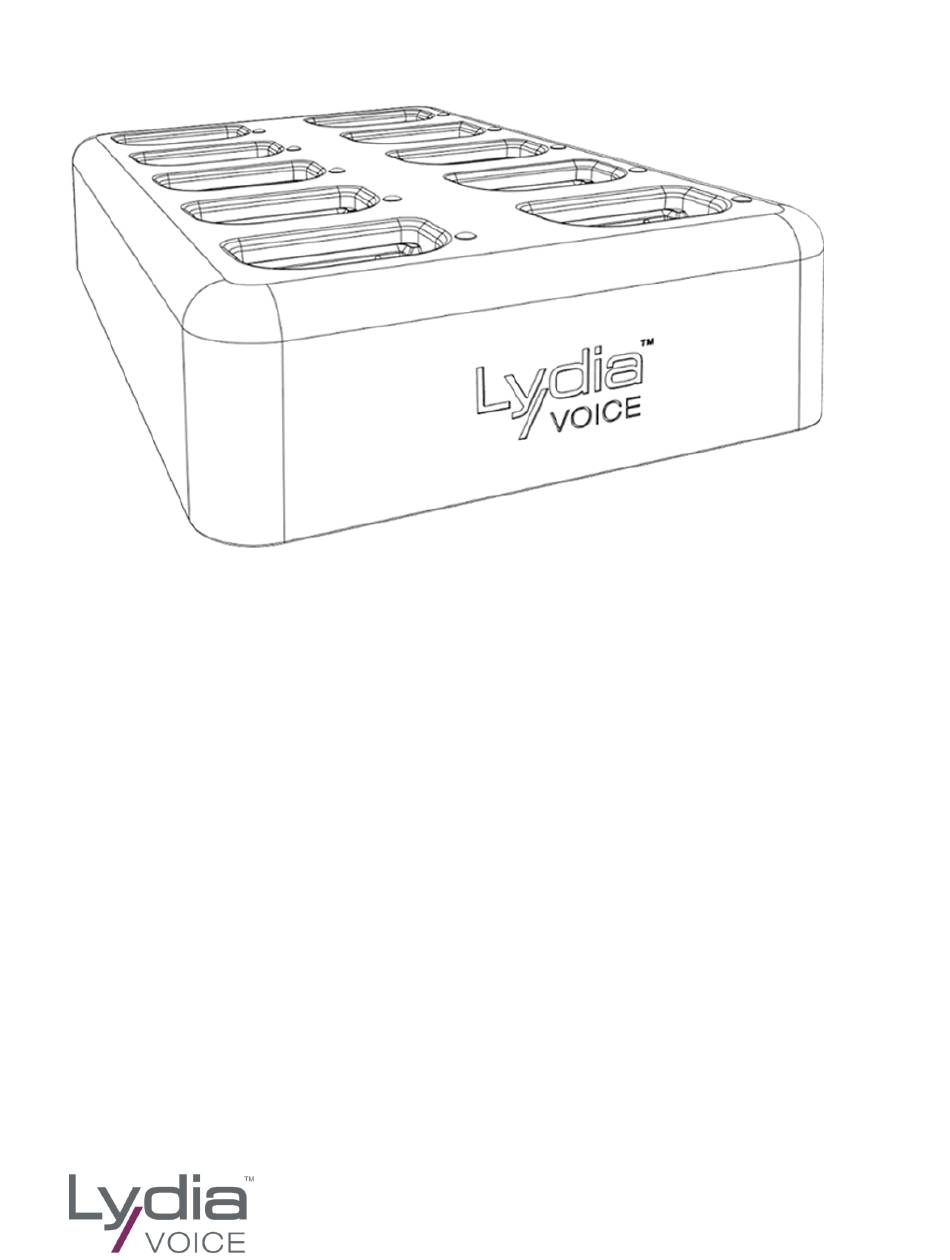

- Page 1 LYDIA™ VoiceWear Air Charger User Manual Version: Date: May 2024...
- Page 2 LYDIA™ VoiceWear Air Charger - User Manual Copyright ©2024 EPG – Ehrhardt Partner Group - topsystem GmbH Reprinting, reproduction or translation, even of excerpts, is not permitted without the written permission of topsystem GmbH. All rights, in particular under copyright, are strictly reserved by topsystem GmbH. topsystem GmbH cannot be held liable for any damages that occur as a result of unauthorized changes to this publication.
-
Page 3: Table Of Contents
LYDIA™ VoiceWear Air Charger - User Manual Table of Contents 1 Overview ............................ 5 2 About this Manual ........................7 2.1 General information and instructions ................7 2.2 Target group ........................7 2.3 Warranty provisions ......................8 2.4 Definitions of safety instructions ..................8 2.5 Sequence of activities .................... - Page 4 LYDIA™ VoiceWear Air Charger - User Manual List of Figures 1.1 LYDIA™ VoiceWear Air Charger with batteries ..............5 1.2 Rear side LYDIA™ VoiceWear Air Charger ................6 5.1 LYDIA™ VoiceWear Air Charger ..................16 12.1 LYDIA™ VoiceWear Air Label .................... 26 May 2024 Page 4...
-
Page 5: Overview

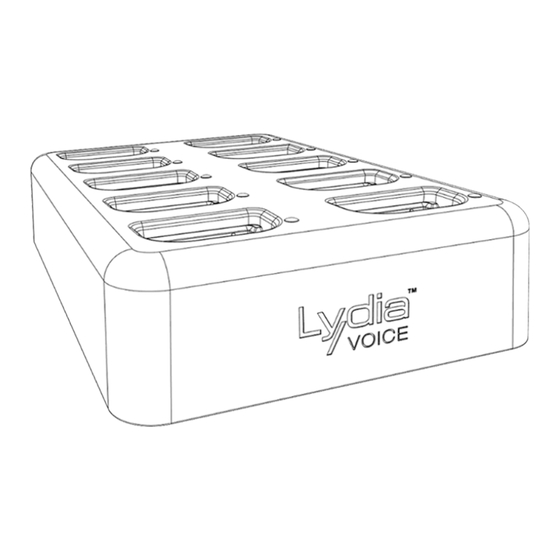

LYDIA™ VoiceWear Air Charger - User Manual 1 Overview The LYDIA™ VoiceWear Air Charger is a charger to charge up to 10 LYDIA™ VoiceWear Air batteries. Figure 1.1: LYDIA™ VoiceWear Air Charger with batteries [1] LYDIA™ VoiceWear Air Charger [2] LYDIA™ VoiceWear Air Battery (accessory) Chapter 1. - Page 6 LYDIA™ VoiceWear Air Charger - User Manual Figure 1.2: Rear side LYDIA™ VoiceWear Air Charger [3] Socket for the 15 V DC connection [4] Holes for wall mounting Chapter 1. Overview Page 6...
-
Page 7: About This Manual
LYDIA™ VoiceWear Air Charger - User Manual 2 About this Manual 2.1 General information and instructions Throughout this document, the product LYDIA™ VoiceWear Air Charger is referred to as “the charger” or simply “the product”. The LYDIA™ Voice housing and the VARTA battery unit is referred to as “the battery” or "LY- DIA™... -
Page 8: Warranty Provisions
LYDIA™ VoiceWear Air Charger - User Manual 2.3 Warranty provisions Use of the LYDIA™ VoiceWear Air Charger outside its intended use, failure to observe the associ- ated manuals, use by unqualified personnel or unauthorized modifications shall release topsystem GmbH from liability for any resulting damage. This shall also void the manufacturer’s warranty. 2.4 Definitions of safety instructions The following definitions describe the degree of danger for each signal word. -
Page 9: Sequence Of Activities
LYDIA™ VoiceWear Air Charger - User Manual CAUTION Instructions to avoid the hazard Consequences of non-observance CAUTION indicates a hazardous situation which, if not avoided, could result in minor or moderate injury. NOTICE Type and source of danger Therefore: Instructions to avoid the hazard Consequences of non-observance NOTICE is used to address practices not related to physical injury. -
Page 10: Illustrations
LYDIA™ VoiceWear Air Charger - User Manual 2.6 Illustrations The illustrations in this user manual are intended for basic understanding and may differ from the actual product purchased. No claims can be derived from the illustrations in this user manual. Chapter 2. About this Manual Page 10... -
Page 11: Safety
LYDIA™ VoiceWear Air Charger - User Manual 3 Safety 3.1 Intended use The LYDIA™ VoiceWear Air Charger is used for charging the LYDIA™ VoiceWear Air batter- ies. The VARTA batteries shall be placed and charged in the LYDIA™ Voice housing in the LYDIA™... - Page 12 LYDIA™ VoiceWear Air Charger - User Manual DANGER Protect the batteries as far as possible from mechanical damage, e.g. from impacts, blows and dropping. Do not store or charge the batteries outdoors, in damp rooms or in places where very high temperatures are to be expected, e.g.
- Page 13 LYDIA™ VoiceWear Air Charger - User Manual DANGER Mechanical and/or electrical damage to the device may occur, as well as overheating of the batteries in the device. Mechanical damage, thermal effects or improper storage can lead to in- ternal and external short circuits with serious consequences. If gaseous or liquid substances escape, they may be harmful to the environment and to health (e.g.
- Page 14 LYDIA™ VoiceWear Air Charger - User Manual NOTICE The LYDIA™ VoiceWear Air Charger, the battery and the power supply unit shall only be repaired by authorized persons. Contact the Support Department if a part is damaged. Improper repairs may cause damages. Chapter 3.
-
Page 15: Description Of The Product
LYDIA™ VoiceWear Air Charger - User Manual 4 Description of the product The LYDIA™ VoiceWear Air Charger is an accessory of the LYDIA™ VoiceWear Air for charg- ing its batteries. The unit VARTA battery and LYDIA™ Voice housing is placed in the LY- DIA™... -
Page 16: Scope Of Delivery
LYDIA™ VoiceWear Air Charger - User Manual 5 Scope of delivery Figure 5.1: LYDIA™ VoiceWear Air Charger The delivery includes: 1 LYDIA™ VoiceWear Air Charger 1 user manual. Essential accessory for using the LYDIA™ VoiceWear Air Charger: LYDIA™ Voice Power Supply Unit LYDIA™... -
Page 17: Initial Assembly
LYDIA™ VoiceWear Air Charger - User Manual 6 Initial assembly Before the LYDIA™ VoiceWear Air Charger can be used, it must be set up in a suitable location or securely fastened to a wall. 6.1 Unpacking Remove the packaging material of the LYDIA™ VoiceWear Air Charger and the accessories used, and dispose of in accordance with the local regulations. - Page 18 LYDIA™ VoiceWear Air Charger - User Manual CAUTION Mount the LYDIA™ VoiceWear Air Charger such that the batteries cannot fall down. In addition to personal injuries, e.g. due to tripping, material damage can occur, which can re- sult in mechanical and/or electrical damage to the device and the batteries. Adhere to all safety and other instructions in the “Safety”...
-
Page 19: Using The Lydia™ Voicewear Air Charger
LYDIA™ VoiceWear Air Charger - User Manual 7 Using the LYDIA™ VoiceWear Air Charger DANGER Danger due to battery Therefore: Do not use defective, damaged, deformed or inflated batteries. When inserting the batteries, ensure that they are seated correctly. Only use the LYDIA™ Voice Power Supply Unit for the power supply. If possible, place the LYDIA™... - Page 20 LYDIA™ VoiceWear Air Charger - User Manual DANGER Danger to physical integrity, e.g. due to exposed live components or sharp edges. DANGER Danger due to overheating Therefore: Avoid overheating of the charger and the power supply unit. Do not cover the aforementioned components during operation. Do not place the LYDIA™...
- Page 21 LYDIA™ VoiceWear Air Charger - User Manual Charging the batteries with the LYDIA™ VoiceWear Air Charger 1. Establish the power supply by connecting the power supply unit to the socket at the rear side of the LYDIA™ VoiceWear Air Charger or by connecting the power supply.
-
Page 22: Maintenance And Cleaning
LYDIA™ VoiceWear Air Charger - User Manual 8 Maintenance and cleaning If the LYDIA™ VoiceWear Air Charger has been damaged or is not working properly, contact support. The LYDIA™ VoiceWear Air Charger can be cleaned by wiping it with a slightly damp cloth. Ensure that no moisture can penetrate the electronic unit. -
Page 23: Disposal
LYDIA™ VoiceWear Air Charger - User Manual 9 Disposal 9.1 Packaging Dispose of the packaging material in accordance with the local environmental regulations for waste disposal. 9.2 LYDIA™ VoiceWear Air Charger and accessories The LYDIA™ VoiceWear Air Charger and the accessories acquired from topsystem GmbH can be returned to the manufacturer for recycling at the end of their useful life. -
Page 24: Eu Declaration Of Conformity
LYDIA™ VoiceWear Air Charger - User Manual 10 EU Declaration of Conformity Chapter 10. EU Declaration of Conformity Page 24... -
Page 25: The Status Indicators Of The Charger
LYDIA™ VoiceWear Air Charger - User Manual 11 The status indicators of the charger The status of the charging process and the charger is indicated by different colored LEDs. No indicator There is no power on the charger. Continuous yellow The charger is connected to a power source. There is no battery in the charging bay. -
Page 26: Technical Data
LYDIA™ VoiceWear Air Charger - User Manual 12 Technical data Product Name LYDIA™ VoiceWear Air Charger Model CWA10 Electrical characteristic values Volt 15 V Ampere 3.2 A Watt 48 W Dimensions and weight without the power supply unit Dimensions (L x W x H) 24.9 x 17.0 x 5.4 cm 9.8 x 6.69 x 2.13 in Weight 1211 g Approximately 42.7 oz...
