SALZ UNO-127 4GB FLECS Quick Installation Manual

EDGE DEVICE UNO-127 4GB FLECS
Quick Installation Guide
Address of the manufacturer:
SALZ Automation GmbH
Max-Planck-Str. 64
32107 Bad Salzu en, Germany
Email: support@salz-automation.com
Overview
Compact, Fan-less Edge Controller with Intel® Atom® Proces-
sor, SALZ Automation Software- PURE/FLECS, 64GB eMMC, 2
x LAN, 2 x USB, and 1 x HDMI
Function
Intel® Atom® x6413E processor, 4 GB DDR4 RAM, 64 GB eMMC
storage, 256 GB SSD, 2 x LAN, 2 x USB, and 1 x HDMI, 1 x
full-size mini PCIe

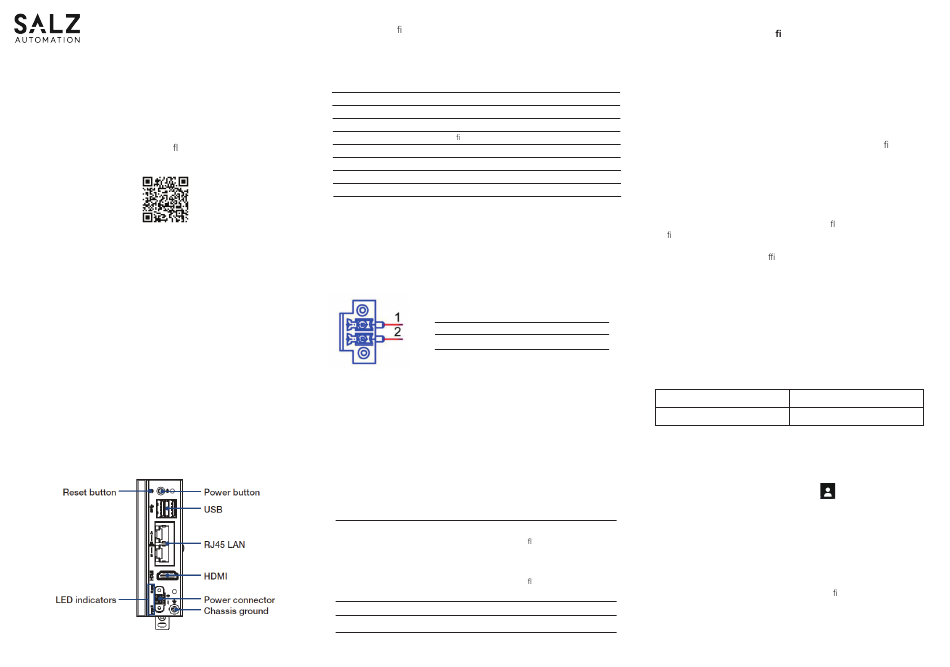

1. Frontview
Front View of EDGE DEVICE UNO-127 4GB FLECS
-1-
Legend of Con guration for the EDGE DEVICE UNO-127 4GB
CPU Module
FLECS
No. Component Description
1 USB Ports Interfaces USB 3.2 for peripherals such as mouse.
2 RJ45 Ethernet Connecting to local networks, internet or EtherCAT.
3
HDMI Digital interface for a monitor with audio output.
Chassis Ground Screw to x the shielding ground connection.
4
5 Reset Button Hidden button for PC hardware reset function.
Power Button Button for PC power function.
6
PWR/RUN LEDs
7 Diagnostic LEDs for CPU module.
Power Terminal 2-pin terminal for 24 V DC power.
8
2. Wiring Power Input
No. Name Function
1 + Power IN V+ (24 V DC)
2 - Power IN V- (GND)
EDGE DEVICE UNO-127 4GB comes with a screw connector
FLECS
that carries 24 V DC external power input, and features reversed
wiring protection. Therefore, the system will not cause damage
from reversed polarity of ground lines and power lines.
3. Environmental limits
Operating Temperature
-20 ... 60 °C @ 5 ... 85% RH
with 0.7 m/s air ow
(without expansion)
-20 ... 55 °C @ 5 ... 85% RH
with 0.7 m/s air ow
(with mPCIe + EtherCAT expansion)
Storage Temperature -40 ... 85 °C (-40 ... 185 °F)
Ambient relative humidity 10 ... 95% @ 40 °C (non condensing)
-2-
4. Software Details and Con guration
Overview
This quick installation guide will explain the operation of the software SALZ
Automaiton System Software 'FLECS'.
'FLECS' is the software for the AMAX 80-C, AMAX 70 controllers, and UNO
127 Series Edge Devices from SALZ Automation. The FLECS version can be
upgraded from 'PURE' version on the controllers and is easy to understand
It can be accessed by using the speci c IP in the
and work with.
internet browser on the PC.
The GUI is user friendly, containing
info-graphic components for optimal usage.
The 'FLECS' automation system adds an 'APP STORE' to 'PURE' version.
Applications/Images/Containers can be deployed on the controller from
this online store directly. And similar to 'PURE', applications can also be
installed without internet as well using a USB ash drive or using locally
stored les on your PC.
This quick installation guide will walk you through the processes and
methods of using the software e cienty and conveniently.
1. Accessing the Software
Once turned on, the controller can be accessed by ethernet ports. Connect
the PC to the controller to one of the two ethernet ports.
Port 1: DHCP / Port 2: Static IP- address 192.168.221.10
Open the internet browser to access the dashboard using the IP.
Default Credentials:
Username
Password
2. User Options
User options can be found after clicking '
of the browser. You can 'Change User Password' and 'Create User'
in this window.
3. Dashboard
The Dashboard contains, CPU, Memory, and Disk usage. It also has a
realtime graphical representation of the same.
App summary shows you the installed applications and their status.
System Information gives you the deatils of the rmware and the ability to
manage/change it.
-3-
admin
changeme
' on the top right corner
