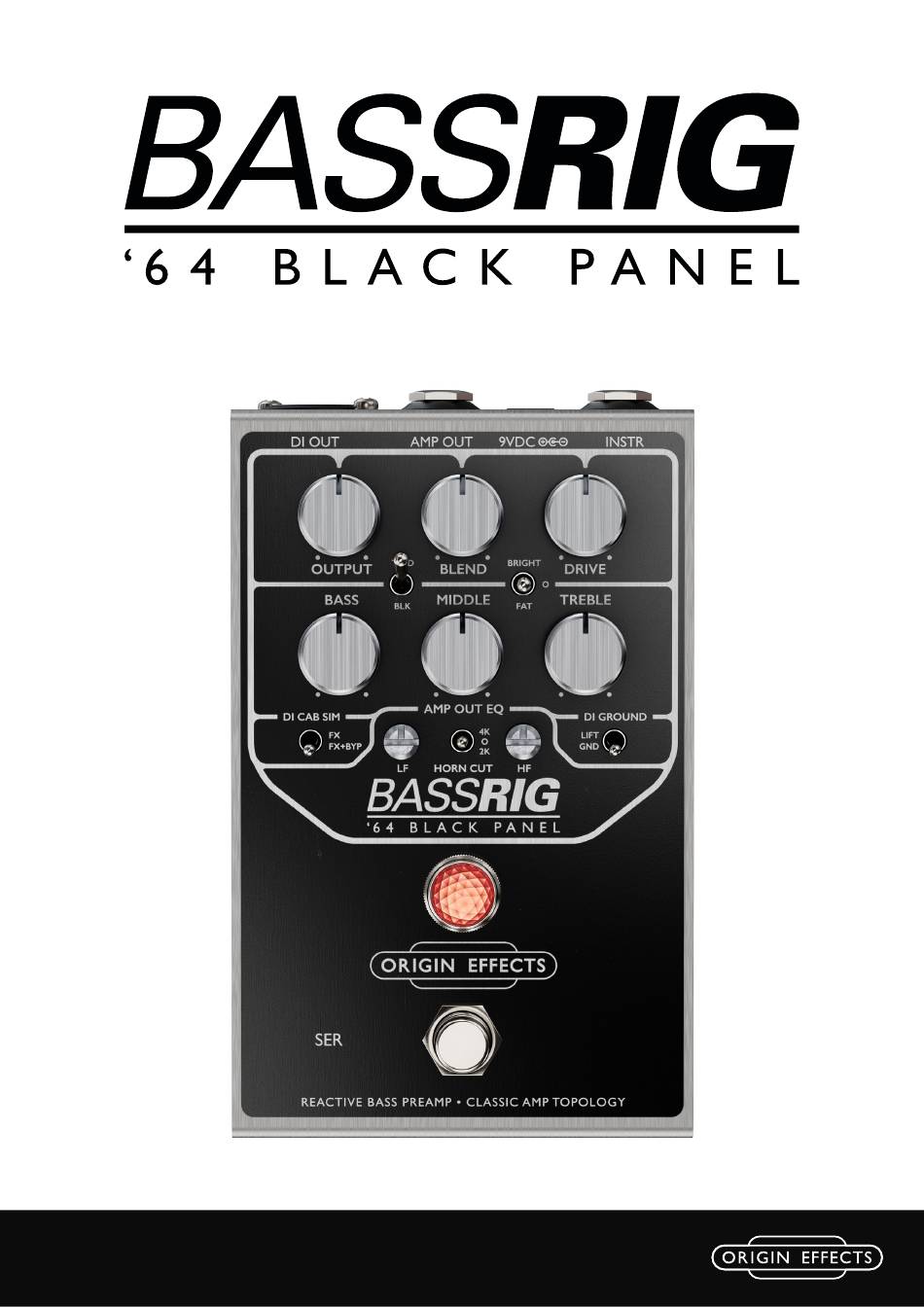

  • Page 1 OWNER’S MANUAL Version 2...
  • Page 2 ORIGIN EFFECTS is a trademark of Origin Effects Limited and is a registered trademark in the United States, United Kingdom, China and the EU. The ORIGIN EFFECTS Totem Device is a trade mark of Origin Effects Limited and is a registered trademark in the United States, China and United Kingdom.

  • Page 3: Table Of Contents

    BASSRIG ‘64 Black Panel Contents Safety Notices . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 Safety Instructions .

  • Page 4: Safety Notices

    BASSRIG ‘64 Black Panel Safety Notices: General Information: This document contains important information for the safe operation of the product. Read and follow the safety instructions and all other guidance. Our products and documentation are subject to a process of con- tinuous development.

  • Page 5: Safety Instructions

    BASSRIG ‘64 Black Panel Safety Instructions: Intended use: This device is intended for use as eff ects pedal for sound processing of signals from musical instruments with electromagnetic pickups. Any other use or use under other operating conditions is considered to be improp- er and may result in personal injury or property damage.

  • Page 6: Introducing The Bassrig '64 Black Panel

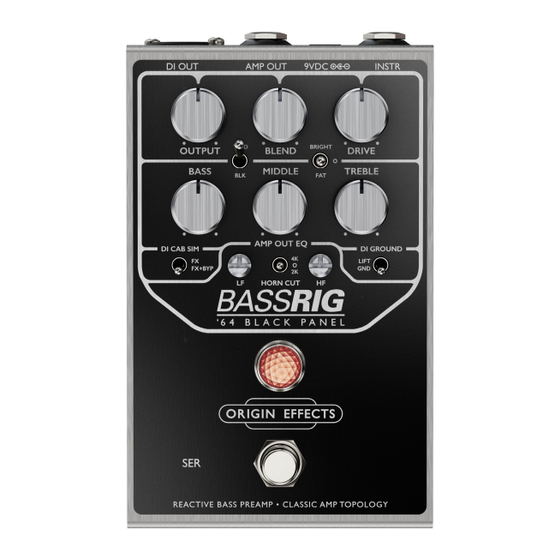

    BASSRIG ‘64 Black Panel Introducing the BASSRIG ‘64 BLACK PANEL The BASSRIG ’64 Black Panel is an all-analogue amp recreation and overdrive pedal, based on the Fender ® Showman and Bassman amps of the 1960s. Before the modern, high powered bass amps we know today, ®...

  • Page 7: Connecting The Bassrig '64 Black Panel

    BASSRIG ‘64 Black Panel Connecting the BASSRIG ‘64 BLACK PANEL 9VDC: Connect a 9VDC 2.1mm centre-negative mains power adaptor (minimum 150mA). NOTICE! Damage to device if powered incorrectly! This product is designed to be powered from a 9VDC, >150mA power supply with 2.1mm centre-negative barrel connector.
  • Page 8 BASSRIG ‘64 Black Panel Main Controls (continued) BLEND: This control blends in your clean signal in parallel with the recreated amp tone. Set the control fully clockwise then turn it counterclockwise to progressively mix in your original clean signal. This can help add definition to your tone, especially in the low end when using overdriven sounds.

  • Page 9: Using The Di Out

    BASSRIG ‘64 Black Panel AMP OUT EQ Controls The post-drive AMP OUT EQ ensures compatibility with a wide range of amps and cabs. Instead of com- promising your amp’s tone controls to suit the BASSRIG, set your amp for your preferred clean sound then use the EQ controls to adjust the pedal’s output accordingly (see tables on page 8).

  • Page 10: Setting Your Amp Out Eq

    BASSRIG ‘64 Black Panel Setting your AMP OUT EQ: Use the tables below to help you set up the BASSRIG ‘64 Black Panel for the first time with a new bass amplifier or flat-response device. Working through Steps 1 and 2 allows you to “set-and-forget” the AMP OUT EQ controls and move on to having fun dialling in your ideal tone with the main controls.

  • Page 11: Sample Settings

    When you think of Fender amps for bass, you ® Inspired by the bluesy bass of Origin Effects’ think of ‘60s soul records. Engaging the FAT favourite Southern jam band, this is the defi nitive switch adds a little warmth and weight to this Showman tone.

  • Page 12: Appendix A: Physical Specification

    BASSRIG ‘64 Black Panel Appendix A: Physical Specification Measurement Unboxed Boxed Weight 846g (30oz) 930g (33oz) Length 146mm (5.7”) 160mm (6.2”) Depth 92mm (3.6”) 116mm (4.5”) Height 64mm (2.5”) 93mm (3.7”) Appendix B: Performance Specification Measurement Value Input impedance 1M Ω Output impedance 500 Ω...

  • Page 13: Appendix D: Enviromental Information

    BASSRIG ‘64 Black Panel Appendix D: Enviromental information The crossed out wheely bin symbol indicates this product is classifi ed as Waste Electrical and Electronic Equipment (WEEE) in the European Union and should not be discarded with household waste. Other territories may vary. Contact your local authority or Origin Eff ects for more information.

  • Page 14: Appendix F: Warranty

    This product is covered by a 2-year manufacturer’s warranty from the date of purchase. This applies only to original purchasers who have bought their product from an authorised Origin Effects dealer or directly from Origin Effects. All returns or servicing should be arranged through the original dealer. Proof of original ownership may be required in the form of a purchase receipt.
