- Page 1 Manual DT-HDIPSSL User Manual...
-
Page 2: Table Of Contents
DT-HDIPSSL Manual Table of Contents 1. Important Information ......................3 2. Introduction .........................3 2.1 Packing Content ......................3 2.2 Description of controls and components ...............4 2.3 Direct PC/Laptop Access via Static IP ..............5 3. Operating Installation ......................5 3.1: Beginning Setup ......................5 3.2: Login ...........................5 3.3: Overview... -
Page 3: Important Information
DT-HDIPSSL Manual 1. Important Information Please read this user manual before using the streamer. It contains important information about operating your streamer kit. Our limited warranty applies when the product is handled properly for intended use, in accordance with its operating instruction. -
Page 4: Introduction

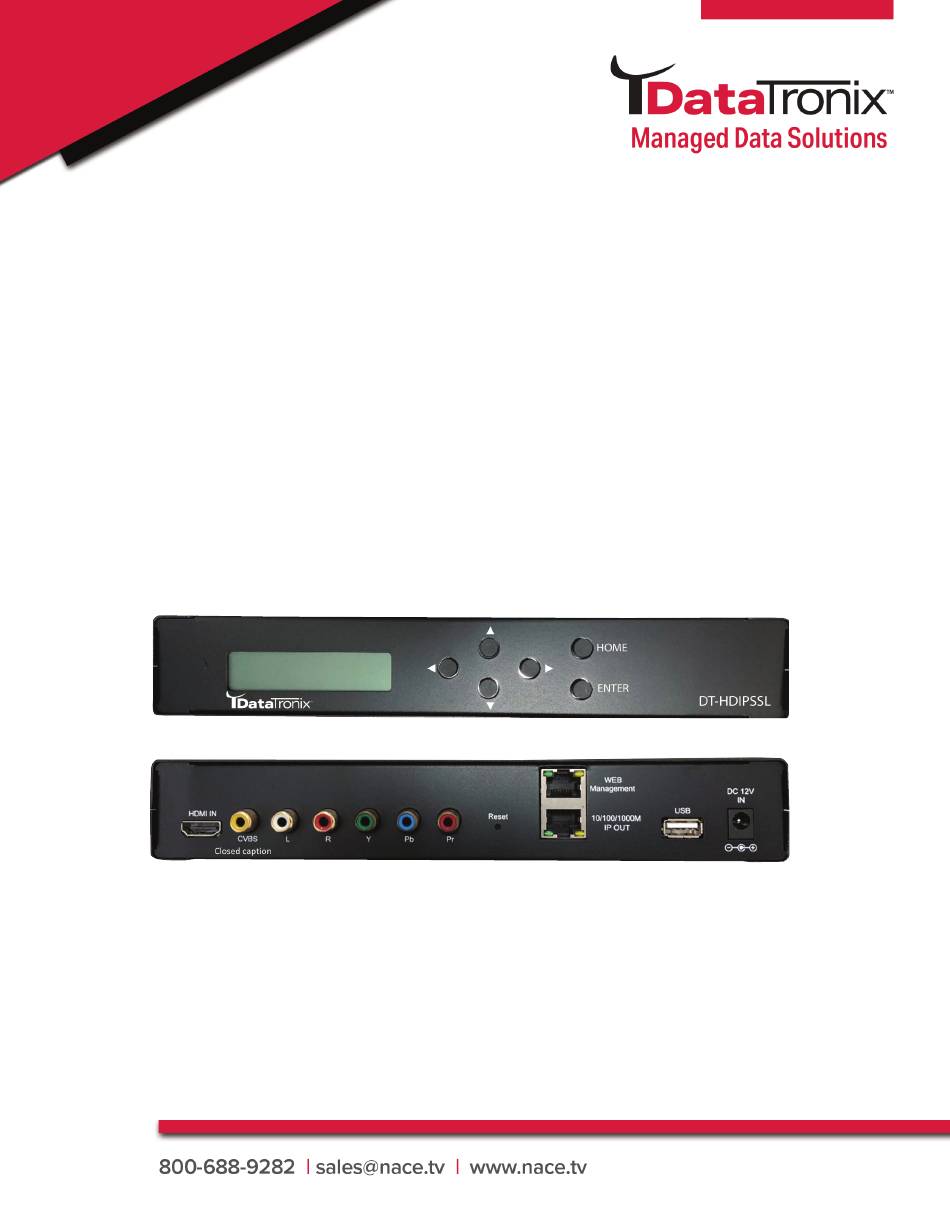

2.1 Packing Content Please check whether the following items are present in the package. If any items is missed or damaged, please call your DataTronix. 1 - DT-HDIPSSL HPD IP Streamer 1 - Power Adapter 1 - User Manual 2.2 Description of controls and components Please check whether the following items are present in the package. -
Page 5: Direct Pc/Laptop Access Via Static Ip
DT-HDIPSSL Manual 2.3 Direct PC/Laptop Access via Static IP The IP streaming server will use an assigned Web IP address “192.168.1.99 “ and IP out address “192.168.2.100” for fi rst sample the IP Setting is Static mode. 3. Operating Instructions 3.1 Beginning Setup... -
Page 6: Overview
DT-HDIPSSL Manual 3.3 Overview Display the current status and settings for Encoder & Streaming. 3.4 Encoder Setup Use the Setting Setup Page to set the Encoder setup. 3.5 Local Save Save and Confi rm once all parameters are set. Changes made to an individual setup tab may require the installer to perform a apply to the device if... -
Page 7: Streaming Setup
DT-HDIPSSL Manual 3.6 Streaming Setup Use the Streaming Setup Page to setup your required streaming method. To stream using Multicast and Unicast enabling function. Save and Confi rm all changes/settings. Note: Default IP address (Multicast UDP) is 235.0.0.0 for streamers. Ensure when setting up the... -
Page 8: Network Confi Guration
DT-HDIPSSL Manual 3.7 Network Confi guration Use the IP Setup Tab to confi gure the device’s IP address, Mask, Gateway, Perform apply once all parameters are set. -
Page 9: Administration
DT-HDIPSSL Manual 3.8 Administration Selecting “Reset to default” will automatically reset all saved settings back to factory default settings. All saved settings will be lost. Use the Admin Setup Tab to set the device’s reboot, confi guration, software update, password change. -
Page 10: Menu Tree
DT-HDIPSSL Manual 4. Menu Tree 4.1 Streamer Web-UI Main Layer 1 ( Item) Layer 2 (Default) Layer 2 (Value) Device Name GMI-D L NA Encoder Setup Program Name Video Input HDMI YP bP r , C VB S , HD MI... -
Page 11: Streamer Confi Guration Via Front Panel Lcd
DT-HDIPSSL Manual 4.2 Streamer Confi guration via Front Panel LCD Main Layer 1 ( Item) Layer 2 ( Default) Layer 2 ( Value) Device Na me GMI-DLNA NTP Server time.stdtime.gov Time Zone Asia Taipei HTTP/SOAP Port 08200 System Change Password... -
Page 12: Product Specifi Cation
DT-HDIPSSL Manual 5 Product Specifi cations Interface Ethernet (output) 1 Gbps, RJ45 Video Input HDMI, YPbPr, CVBS Audio Input Analog or HDMI Encoding HD:H.264 AVC/HP@L4.0 Video Format SD:MPEG-2/MP@ML Audio Format MPEG2/AAC HD: 1080P25,1080P30, 1080i 50/60 Resolution Max, SD 480i,576i Video Bitrate... -
Page 13: Warranty
DT-HDIPSSL Manual 6. Warranty DATATRONIX 1-Year Limited Warranty DATATRONIX. (the “Company”) warrants to the Original Purchaser that the item purchased is free from defects in workmanship or material under normal use. This warranty starts on the date of shipment of the hardware to the Original Purchaser. - Page 14 DT-HDIPSSL Manual the possibility of such damages, or for any claim brought against your by another party. Jurisdic- tions vary with regard to the enforceability of provisions excluding or limiting liability for incidental or consequential damages. You should check the laws of your local jurisdiction to fi nd out whether the above exclusion applies to you.
