Summary of Contents for Touchboards IP-232

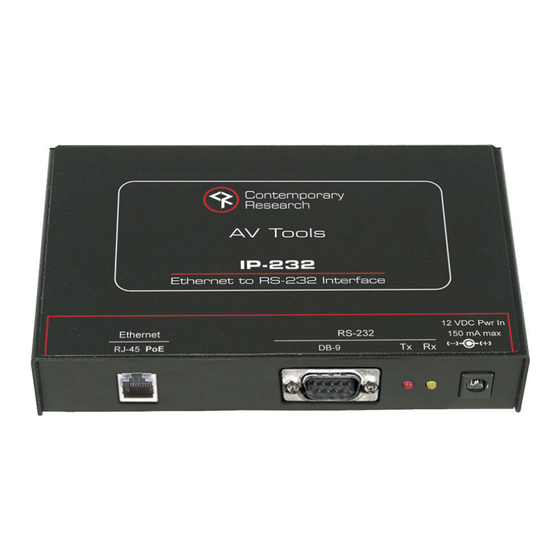

- Page 1 Product Manual IP-232 Ethernet to RS-232 Interface Ver. 1.0 September 08, 2008...
-
Page 2: Table Of Contents
DIP Switch Settings ..........................5 Default RS-232, IP and Telnet Settings.....................5 Set Attributes via RS-232 Commands .......................6 Set RS-232 Attributes via Web Page......................6 Set Up IP-232 RS-232 via Control System ..................6 RS-232/IP Control Protocol........................ 7 RS-232 Commands ..........................8 Ethernet ..............................8 RS-232 ..............................8... -
Page 3: Overview
The unit is fully programmable, and includes switch settings to aid in installation. A single IP-232 can control up to nine tuners over Ethernet, with a full 2-way data connection to custom control systems or PC software. CR’s Tuner Helper 3, a free Windows application, can connect to the IP-232 for point-and-click Ethernet tuner control and setup. -
Page 4: Specifications
1 Space-saving 12 VDC 500 mA digital switching power supply (North American only) Options CC-232 Custom RS-232 cable RK-1 Rack Kit to mount IP-232 alongside CR analog 232-series tuner RK-HD1 Rack Kit to mount IP-232 alongside CR IP-232 tuner RK3 Rack Mount Kit, 1RU, accepts up to three AV Tools... -
Page 5: Installation
2. Set RS-232 COM port baud rate and data parameters locally via RS-232 or remotely over IP DIP Switch Settings Use the DIP switch on the bottom of the unit for setup (turn IP-232 so switches are on the bottom of the case, S1 is on the left, Up turns switches ON):... -
Page 6: Set Attributes Via Rs-232 Commands
Set Up IP-232 RS-232 via Control System Once you’ve defined the IP address of the IP-232, you can also use your control system to configure the RS- 232 port. The typical approach is to send configuration commands via Telnet port 23 in the system start-up sequence. -
Page 7: Rs-232/Ip Control Protocol
- ASCII CR, Hex $0D, or keyboard Enter - as an 'End-of-command' character. Responses from the IP-232 begin with the ASCII < (less than symbol) as an 'Attention' character and end with a carriage return followed by line feed an ASCII LF or Hex $0A as 'End-of-command' characters. -
Page 8: Rs-232 Commands
RS-232 Commands Code Function Operation Defines IP Operation Ethernet - Use “>” symbol before each command - End with carriage return to send IP Address IP returns the current MAC address, Ethernet firmware version, current IP address, subnet mask, and gateway. Response example (S or D at end of IP signifies DHCP or Static address): $MAC=0014C8000201... -
Page 9: Safety Instructions
Safety Instructions Read before operating equipment. 1. Cleaning - Unplug this product from the wall outlet before cleaning. Do not use liquid cleaners or aerosol cleaners. Use a damp cloth for cleaning. 2. Power Sources - Use supplied or equivalent UL/CSA approved low voltage DC plug-in transformer. 3.
