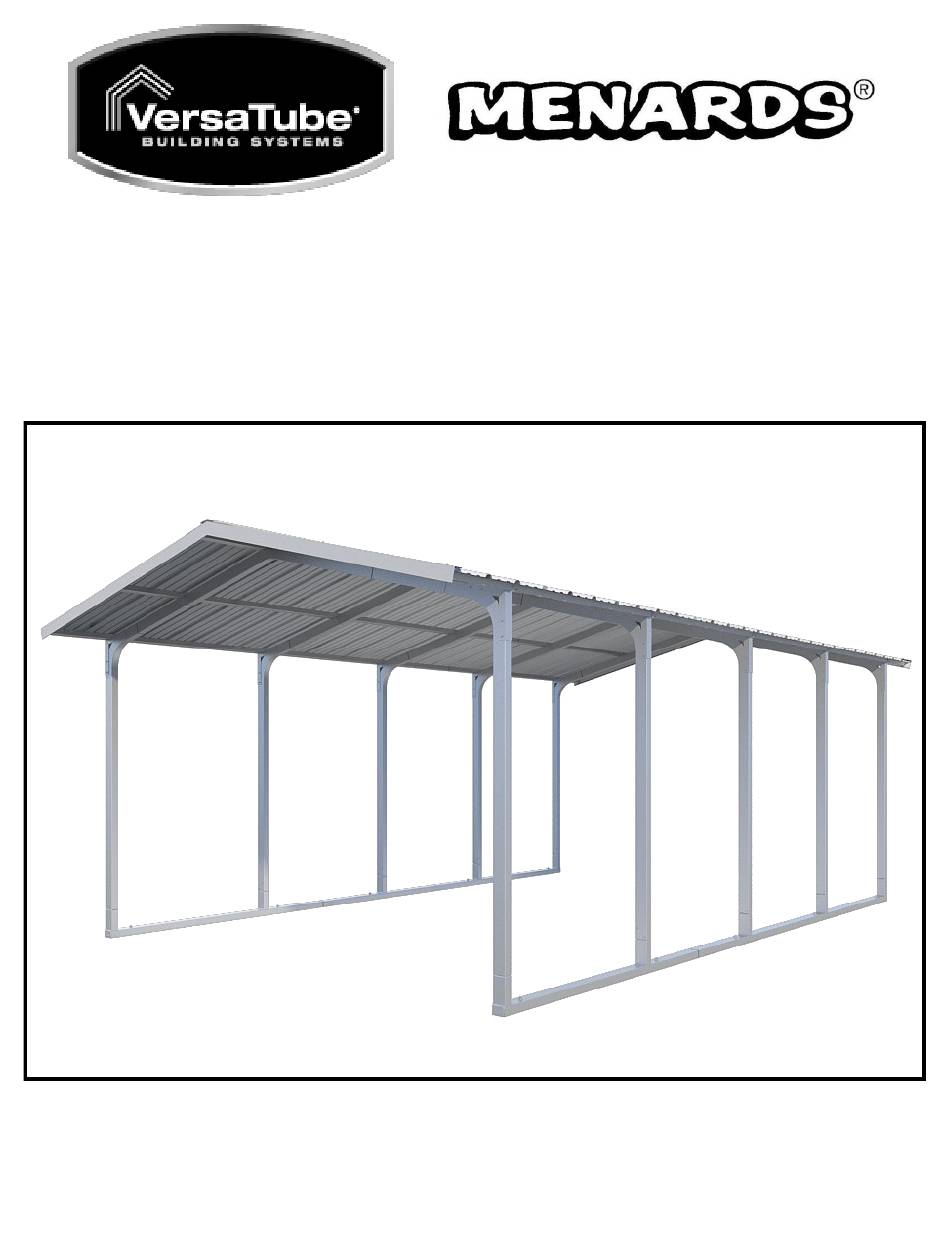

VersaTube MENARDS Pinnacle Carport Instruction Manual

For 12', 14', 20', 24', 30' widths, 4.5' on center spacing 7', 9', 12', 14' heights

Advertisement

Quick Links

Pinnacle Carport
Instruction Manual
for 12', 14', 20', 24', 30' Widths,
4.5' On Center Spacing
7', 9', 12', 14' Heights
Our unique assembly process quickly transforms the individual pieces into a finished structure that will give you a lifetime of
service. Great care has been taken to ensure complete satisfaction with your purchase. In the unlikely event that there are
any missing or damaged parts, or if you simply need technical assistance, please call our Toll Free Hotline at 1-800-900-
7222 and your questions will be addressed promptly. Thank you for choosing the VersaTube Building System.
ZINST-PVM-M

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MENARDS Pinnacle Carport and is the answer not in the manual?

Questions and answers

Summary of Contents for VersaTube MENARDS Pinnacle Carport

  • Page 1 Great care has been taken to ensure complete satisfaction with your purchase. In the unlikely event that there are any missing or damaged parts, or if you simply need technical assistance, please call our Toll Free Hotline at 1-800-900- 7222 and your questions will be addressed promptly. Thank you for choosing the VersaTube Building System. ZINST-PVM-M...
  • Page 2: Table Of Contents

    Contents Safety, Hazard and Maintenance Instructions _______________________________ 2 Tools Needed ________________________________________________________________________________ 3 Parts List _____________________________________________________________________________________ 4 Truss Brace Parts List for 2x3 Carports _________________________________________ 5 Truss Brace Parts List for 2x4 Carports ________________________________________ 6 Roof Purlin Parts List ___________________________________________________________________ 7 Frame Assembly _______________________________________________________________________ 8-11 Type 1 ______________________________________________________________________________________________________________________ 11 Type 3, 5 OR 6 __________________________________________________________________________________________________________12...
  • Page 3: Safety, Hazard And Maintenance Instructions

    (6) months. All sheet metal cladding applied to the VersaTube frame are attached with self drilling screws with a rubber washer. These screws produce small shavings when drilling through the cladding. If the shavings are al- lowed to sit on the sheet metal for an extended period, rust spots will form and promote deterioration.
  • Page 4: Tools Needed

    Tools Needed ATTENTION: IT IS IMPORTANT THAT YOU READ THE FOLLOWING NOTE BEFORE STARTING THE ASSEMBLY OF YOUR SHELTER NOTE: If during the installation process you have difficulty fitting frame components together, use an adjustable wrench to open the end of the receiving tube as shown below.
  • Page 5: Parts List

    Parts List Type of Part Part Number Description Center Base Rail for 4.5' on center 71-4801 Carports 71-4802 End Base Rail for 4.5' on center Carports Base Rail 71-7050 4.5' Extension Base Rail, 4.5' On Center If carport is longer than Spacing 18’L If 2x4, the base rails will be 700-4801, 700-4802 and 700-7050 with the same descriptions...
  • Page 6: Truss Brace Parts List For 2X3 Carports

    Truss Brace Parts List for 2x3 Carports To determine what type of Truss Brace you have, look at the 1st number in the structures part number. Example: PVM012180070 has no truss brace; PVM112180070 has a Type 1 Truss Brace. Type of Part Part Number Description 74-8175...
  • Page 7: Truss Brace Parts List For 2X4 Carports

    Truss Brace Parts List for 2x4 Carports To determine what type of Truss Brace you have, look at the 1st number in the structures part number. Example: PVFC012180070 has no truss brace; PVFC630225090 has a Type 6 Truss Brace. Type of Part Part Number Description 74-8650...
  • Page 8: Roof Purlin Parts List

    Roof Purlin Parts List Type of Part Part Number Description 75-08800-S475 1.5"x1.5"x88", 4.75" Swage BK-30B Bypass Purlin/Girt Bracket 21’L - 7500-08750 1.5''x1.5''x87.5'' End Purlin Roof Purlin 24’L - 7500-04025 1.5''x1.5''x40.25'' End Purlin 30’L - 7500-02900 1.5''x1.5''x29'' End Purlin 33’L - 7500-06500 1.5''x1.5''x65''End Purlin 48’L - 7500-07850 1.5''x1.5''x78.5'' End Purlin...
  • Page 9: Frame Assembly

    Note: The VersaTube carport is designed to be placed on a foundation that is level side-to-side and sloped about 1” front- to-back or back-to-front. Concrete Piers are suggested for this structure. The piers are installed at the same time as the base rail assembly below.
  • Page 10 Frame Assembly (continued) (IF STRUCTURE IS 14’H, SKIP TO PAGE 10) STEP 2: ROOF/WALL FRAME ASSEMBLY On the ground, assemble two side posts, one peak and two rafters. If the structure is taller than 7’H, also assemble two height extensions. If the structure is wider than 20’W, use two Rafter Extensions between the rafter and peak. Measure across the frame assembly at the top, just below the bends and at the bottom.
  • Page 11 Frame Assembly (continued) STEP 2: ROOF/WALL FRAME ASSEMBLY On the ground, assemble two posts, two 72” height extensions, two eave corners, one peak and two rafters (2x4x29 3/8 or 2x4x41 3/4”). Measure across the frame assembly at the top, just below the bends and at the bottom. Set the frame width (14’W or 16’W) to the desired width.
  • Page 12: Type 1

    Frame Assembly (continued) STEP 2a: ATTACHING THE EAVE CORNER BRACKETS Corner brackets must be installed on all side post corners (eave corners). The corner brackets will come in the kit in the straight form and must be folded to fit the eave corner. Fold the bracket, place it on the side post corner, make sure that it is flush with both surfaces and fasten the bracket on both sides of the assembly with 4 framing screws per side.
  • Page 13: Type 3, 5 Or 6

    Truss Brace Assembly (continued) TYPE 3, 5 OR 6 TRUSS BRACE On the ground, assemble one 74-8650 Center Stringer, two HE-4-2 Collar Tie Extensions, two end pieces, Left and Right Collar Tie Brackets (BK-60/61, 2 of each if 30’W). Slide the swages of the 74-8650 into one end of the collar tie extensions, then slide the end pieces on each side.
  • Page 14: Type 4

    Truss Brace Assembly (continued) TYPE 4 TRUSS BRACE On the ground, assemble one 74-8650 Center Stringer, two HE-4-2 Collar Tie Extensions, two end pieces, Left and Right Collar Tie Brackets (BK-60/61, 2 of each if 30’W). Slide the swages of the 74-8650 into one end of the collar tie extensions, then slide the end pieces on each side.
  • Page 15: Structure Assembly

    Structure Assembly STEP 3: MARKING FRAMES AND ATTACHING FRAME SECTIONS TO THE BASE RAILS Before attaching the frames to the base rails, refer back to page 7 to the roof purlin spacing diagram. While the frames are stacked, make a mark 1” in from each Bk-40 Eave Side Bracket. Then make a mark at the spacing shown on page 7 for the correct building width.
  • Page 16: Anchoring

    Anchoring ANCHORING STRUCTURE Move the base rails back into position over the holes. Re-measure to make sure the rails are in the proper location. Measure diagonals to square frame. The diagonal measurements should be equal. Now drop or drive a 30” rebar ground anchor into each anchor hole.
  • Page 17 Installing Roof Purlins STEP 2: INSTALLING THE BYPASS PURLINS Refer to the chart at the bottom of page 7 to determine how many 75-08800-S475 Swaged Purlins will be needed to complete each run. Refer to the chart at the top of page 7 to determine what length end purlin will be used. Collect all pieces needed for each run.
  • Page 18: Installing Roof Sheet Metal

    Installing Roof Sheet Metal STEP 1: INSTALLING THE ROOF PANELS Flip the first panel over to the underside and make a mark at 3 7/16” from the end. This mark will line the panel up with the roof purlin run. Place the panel at the front end of the purlin run. Clamp the panel in place once it is in position. Attach the panel to the purlin runs with painted sheet metal screws (with rubber washers).
  • Page 19: Installing Trim

    Installing Gable Angle Trim STEP 3: INSTALLING RAKE/GABLE TRIM The 12' Residential Rake Trim will need to be angle cut on the end that will be at the peak. You can choose to not angle cut at all. Cut to fit if necessary. If multiple pieces are needed, start at the eave and work up to the peak. Place a screw on top at each roof purlin.
