TRENDnet TC-P08C5E Quick Installation Manual

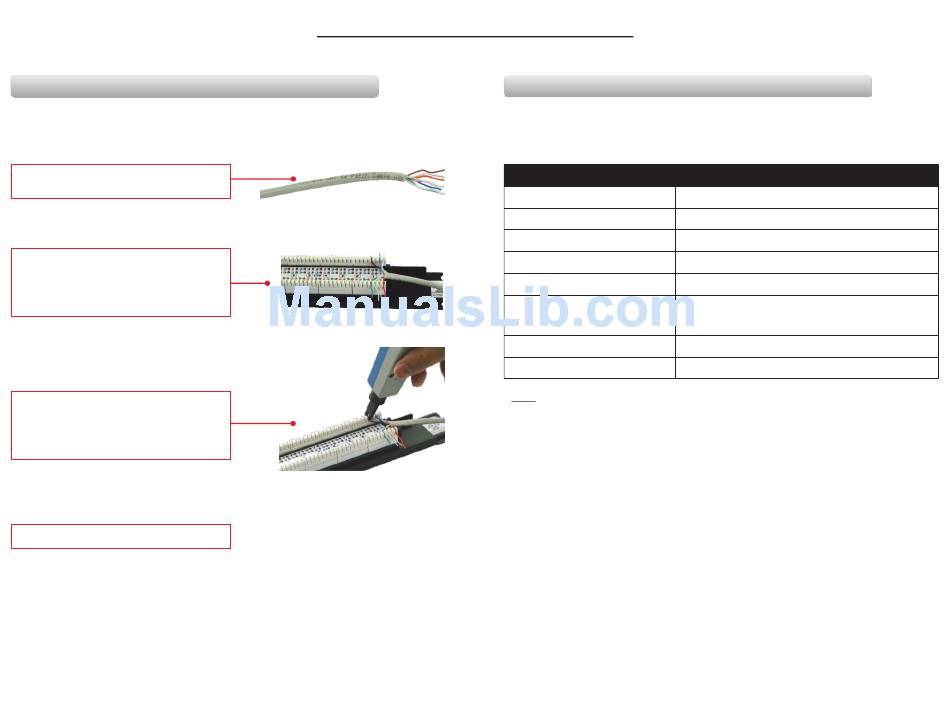

Instructions
1. Strip approximately 30mm from a patch cable and
separate the wires.
2. Layout the wires onto the patch panel based on the
IDC color code. The IDC color codes can be found
on the patch panel. (Reference the color codes
labeled A for T568A. Reference the color codes
labeled B for T568B.
Use a punchdown tool (e.g. TC-PDT) to
3.
terminate the wires. Make sure that the
cutting blade is positioned on the outside
of the patch panel.
4. Repeat steps 1-3 for each port.
Unshielded Patch Panel
Specifications
Hardware
Wiring Standards T568A & T568B
900gm
Insertion Force
7.7kg
Retention Strength
Cat.5e / Cat.6
Cabling
Dimension (L x W x H) 254 x 44 x 30mm (10 x 1.7 x 1.2in.)
Weight
TC-P08C5E / TC-P08C6: 205g (7.2 oz)
TC-P12C5E / TC-P12C6: 230g (8 oz)
-10° ~ 60°C (14°F ~ 140°F)
Temperature
Certifications CE, FCC
Note: The patch panels carry a 2-year warranty. Go to www.trendnet.com/support and click on the
Product Warranty Policy to view the TRENDnet warranty policy.
