Peavey XR-800 Operating Manual

STEREO PQWEREP MIXINS.CPNBQLE.
-CHAMNEL A-j |-CHANMLD-1
» •
•» •* —•
It
w
AS. At.

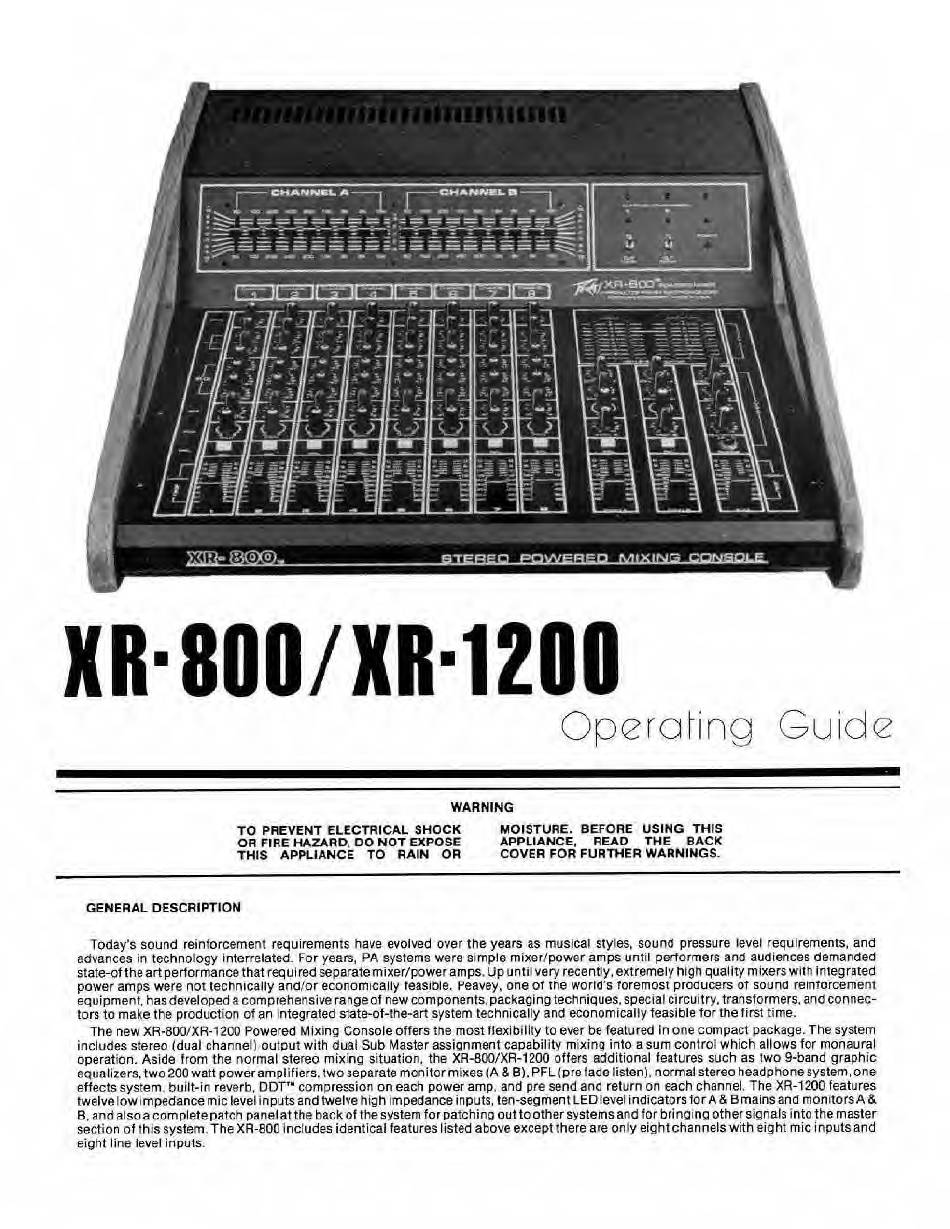

XR-800/XR-1200
OperaNng Guide
WARNING
TO PREVENT ELECTRICAL SHOCK MOISTURE. BEFORE USING THIS
OR FIRE HAZARD, DO NOT EXPOSE APPLIANCE. READ THE BACK
THIS APPLIANCE TO RAIN OR COVER FOR FURTHER WARNINGS.
GENERAL DESCRIPTION
Today's sound reinforcement requirements have evolved over the years as musical styles, sound pressure level requirements, and
advances in technology interrelated. For years, PA systems were simple mixer/powcr amps until performers and audiences demanded
state-of the art performance that requi red separate mixer/power amps. Up until very recently, extremely high quality mixers with integrated
power amps were not technically and/or economically feasible. Peavey. one of the world's foremost producers of sound reinforcement
equipment, has developed a comprehensive range of new components, packaging techniques, special circuitry, transformers, and connec¬
tors to make the production of an integrated state-of-the-art system technically and economically feasible for the first time.

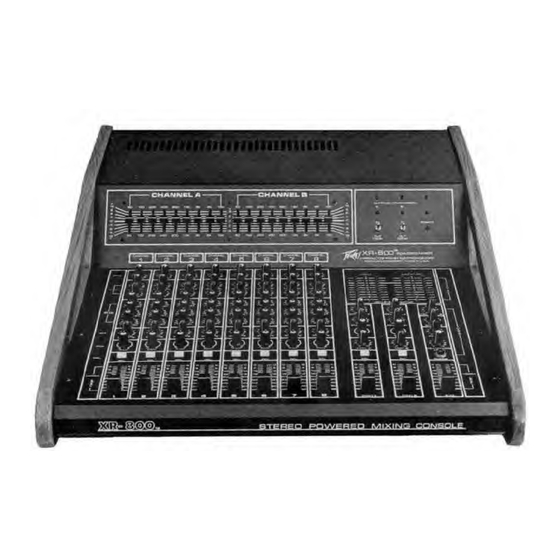

The new XR-800/XR-1200 Powered Mixing Console offers tne most flexibility to ever be featured in one compact package. The system
includes stereo (dual channel) output with dual Sub Master assignment capability mixing into a sum control which allows for monaural
operation. Aside from the normal stereo mixing situation, the XR-800/XR-1200 offers additional features such as two 9-band graphic
equalizers, two 200 watt power amplifiers, two separate monitor mixes (A & B). PFL (pro fade listen), normal stereo headphone system, one
effects system, built-in reverb, DDTT" compression on each power amp, and pre send and return on each channel. The XR-1200 features
twelve low impedance mic level inputs and twelve high impedance inputs, ten-segment LED fevei indicators tor A
&
B mains and monitors A &
B, and alsoa complete patch panel at The back of the system for patching out toother systems and for bringing other signals into the master
section of this system. The XR-800 includes identical features listed above except there are only eight channels with eight mic inputs and
eight line level inputs.
