Summary of Contents for UltraPower UP9

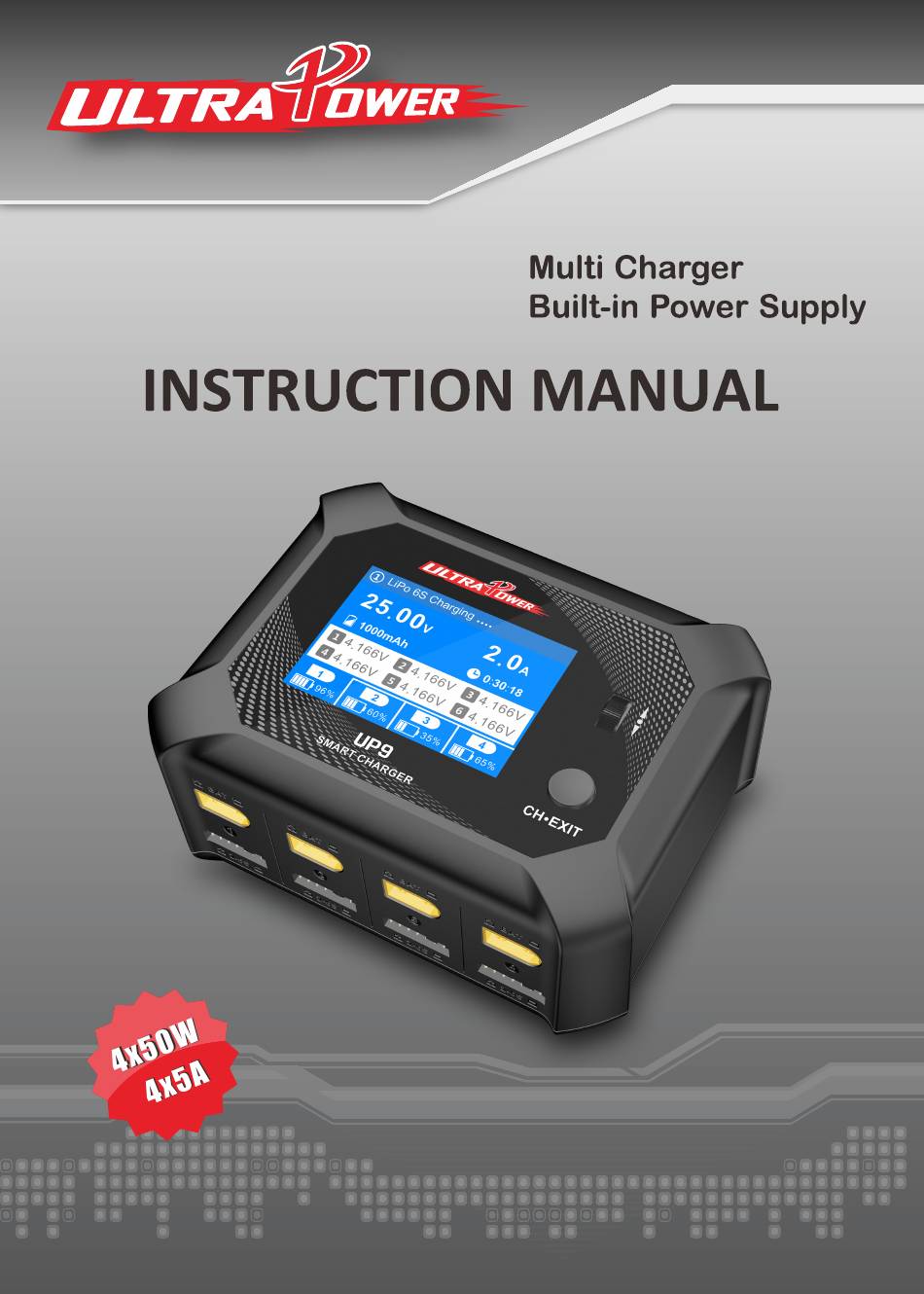

- Page 1 www.ultrapower.hk...
- Page 2 INTRODUCTION Thank you for your purchasing of Ultra Power’s UP9 Four Channel AC /DC Smart Balance Charger.This product is a rapid charger with a high performance microprocessor and specialized operating software. Please read this entire instruction manual completely and attentively before using this product, as it covers a wide range of information on operation and safety.
-
Page 3: Table Of Contents
CONTENTS Warnings and Safety Notes ------------------------------------ Product Parameters and Characteristics ----------------------- Standard Battery Parameters ---------------------------------- Confirming Charge Current ------------------------------------ Task Settings -------------------------------------------------- Working Parameters Display ----------------------------------- System Settings Menu ----------------------------------------- Conformity Declaration ----------------------------------------... -
Page 4: Warnings And Safety Notes
WARNINGS AND SAFETY NOTES PLEASE READ ALL INSTRUCTIONS CAREFULLY BEFORE USING THE PRODUCT! The following warnings and safety notes are for your protection, please refer to all aspects of this instruction manual to ensure proper operation. FAILURE TO FOLLOW THESE SAFETY PRECAUTIONS MAY CAUSE FIRE, PROPERTY DAMAGE AND/OR PERSONAL INJURY! WARNING... - Page 5 Avoid leaving your charger or battery in direct sunlight or exposing them to intense vibration or shock. ALWAYS make certain to observe proper input and output polarity. The UP9 operates safely with input voltage between AC 100-240V DC 11-18V. ALWAYS place the charger on a heat-resistant, non-flammable surface when in use.
-
Page 6: Product Parameters And Characteristics

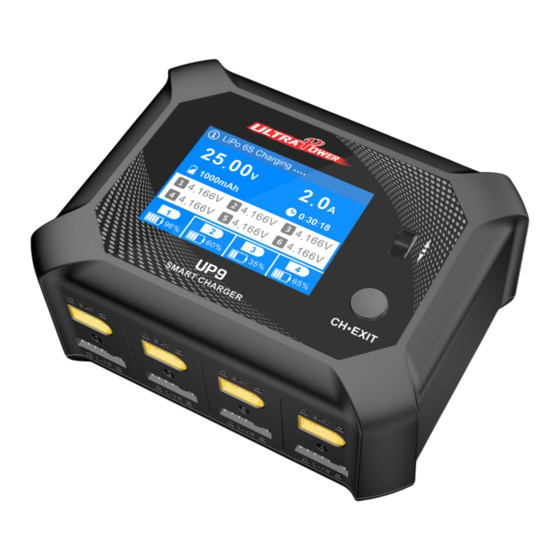

PRODUCT PARAMETERS AND CHARACTERISTICS Roller Wheel 2.4 inch IPS screen Button Balance Socket Battery Sockets AC Input 100-240V DC Input 11-18V Cooling fan PC Link Roller Wheel Short press: Enter task settings/confirm current settings Start charging/stop charging/ Clear warning messages Long press: Enter System setting/terminate current task Start charging/stop charging Scroll up and down: Select the corresponding menu Button... -
Page 7: Specification
PRODUCT PARAMETERS AND CHARACTERISTICS Specification： Input Voltage: AC 100-240V, DC 11.0-18.0V Output Voltage: 0.1-26.1V Charge Current: 0.1-5.0A x 4 Charge Power: DC Input: 4x50W AC Input: Max.100W (CH1+CH2+CH3+CH4=100W) Support power distribution(2x50W or 4x25W) Support Battery Types: LiPo/LiHV( Support 4.45V Battery) /LiFe/Lilon(1-6S) NiMH/NiCd(1-16S) Lead Acid 2V-24V(1-12S) Balance Current: Max.300mA/cell... -
Page 8: Standard Battery Parameters
STANDARD BATTERY PARAMETERS NiCd/NiMH LiFe LiIon LiPo LiHV Rated Voltage 1.20V 2.00V 3.20V 3.60V 3.70V 3.80V 1.40V 2.40V 3.60V 4.10V 4.20V 4.35V Full Charge Voltage Storage Voltage Not supported Not supported 3.30V 3.70V 3.80V 3.90V Pre-charge Voltage 2.00V 2.90V 3.10V 3.20V 3.20V Not supported... -
Page 9: Confirming Charge Current
CONFIRMING CHARGE CURRENT It is critically important to understand the maximum charging current for the battery pack to be charged. Excessive charge current can significantly reduce the life of a battery, or in severe cases a fire or explosion. The charge and discharge current of a lithium battery is determined by its “C”... -
Page 10: Task Settings
Otherwise, charging is abnormal The default mode of the UP9 is series charging, therefore you must connect the output wires to the battery pack that you wish to charge. - Page 11 Measuring Internal Resistance The UP9 features the ability to monitor the internal resistance of each cell in a lithium battery pack. This feature is only operational when in the balance charging mode. Internal resistance can be use ful to determine the overall “health”...
-
Page 12: Working Parameters Display
WORKING PARAMETERS DISPLAY Battery Cell Count Working Mode Battery Type LiPo 6S Charging Charge/Discharge 25.00 Battery Voltage Current Battery Capacity 0:30:18 1000mAh Charge/Discharge Time 4.166V 4.166V 4.166V Cell Voltage 4.166V 4.166V 4.166V Percentage of battery capacity Input voltage Temperature Charging Charging LiPo 6S LiPo 6S... - Page 13 WORKING PARAMETERS DISPLAY Four independent output channels, setting and work independently as follows: 1.2.3 Channel charging, aisle 4 is standby. Program Current 2.0A 4.20V Charge channel: Start Back 2.4'' IPS Display, clearly show two channels working status in real-time..ge ..Complete Char Charging...
-
Page 14: System Settings Menu
SYSTEM SETTINGS MENU Long press the roller wheel to activate the system setting menu. Language English, French, German, Japanese, Simplified Chinese, Traditional Chinese MIN Input Voltage Adjustable from 10V-12V Terminates charge process when reach this value Capacity Cut Maximum capacity can be adjusted by user Terminates charge process when exceeding time set by user Time Cut Backlight... -
Page 15: Conformity Declaration
CONFORMITY DECLARATION The UP9 satisfy all relevant and mandatory CE directives and FCC Part 15 Subpart B: 2017. For EC directive: The product has been tested to meet the following technical standards: Testing standards Result EN 60335-1:2012+A11:2014+A13:2017+A1:2019+A14:2019+A2:2019, EN60335-2-29: 2004+A2: 2010+A11:2018, EN 62233:2008 Information on the disposal for Waste Electrical &...
Need help?
Do you have a question about the UP9 and is the answer not in the manual?
Questions and answers

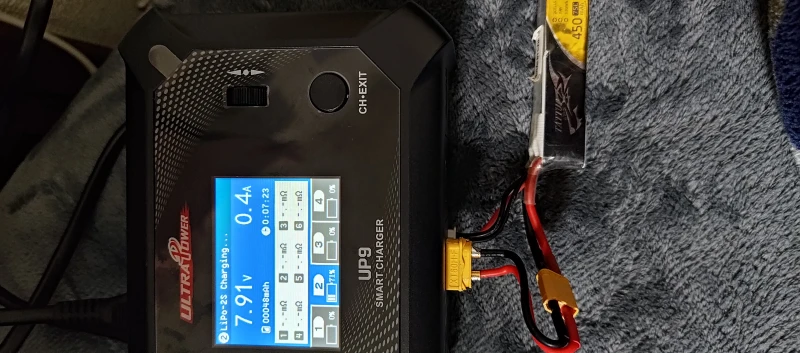

Hello. The internal resistance doesn't show on my charger. I charge 2s and 3s batteries and the internal resistance doesn't show for any of them.
The internal resistance measurement on the UltraPower UP9 charger may not show accurately for 2S and 3S batteries because the charging current affects the accuracy of the measurement. Large-capacity and low internal resistance batteries require a large charging current to measure internal resistance correctly. If the current is not sufficient, the measurement may not display properly.
