Summary of Contents for VES-Artex 117836

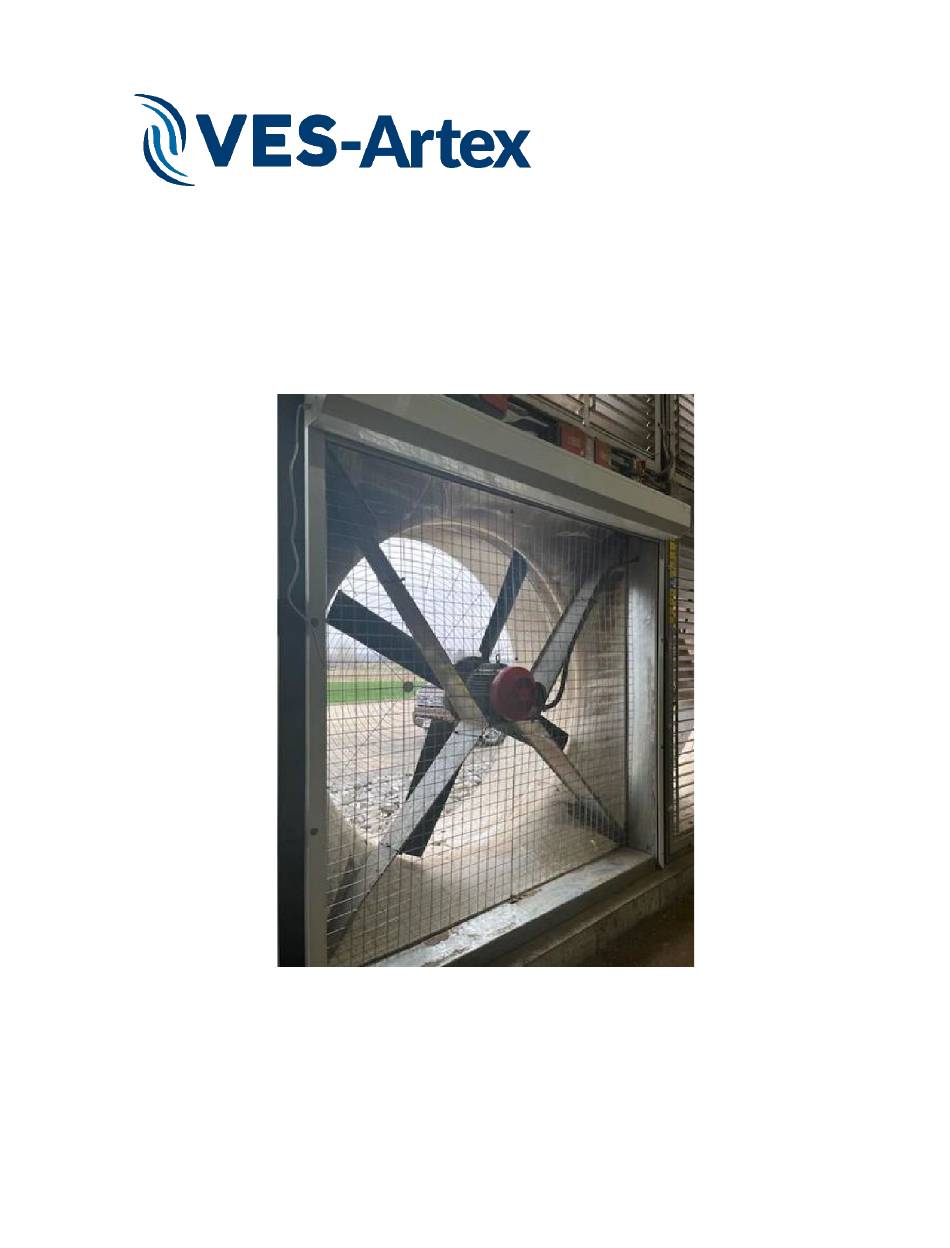

- Page 1 ROLLER SHUTTER MANUAL 117836 www.ves-artex.com | 1.888.622.2999 SAVE THIS MANUAL FOR FUTURE REFERENCE CONFIDENTIAL...
-
Page 2: Table Of Contents
Copyright © 2024 ves-artex.com| All Rights Reserved Table of Contents ROLLER SHUTTER HIGHLIGHTS Product Performance Attachments Guard TARGET AUDIENCE SAFETY PRECAUTIONS Safety Alert Key General Safety UNPACKING General HANDLING General MECHANICAL INSTALLATION ELECTRICAL INSTALLATION Motor Label Motor Wiring MAINTENANCE SCHEDULE... -
Page 3: Roller Shutter Highlights
• • Easily automated and rolls up when your fans are on and down when they’re off. • Opens and closes in 20 seconds. • Has a manual emergency opening. Copyright © 2024 ves-artex.com| All Rights Reserved | V2 CONFIDENTIAL... -
Page 4: Attachments
Target Audience This guide provides information for the following audiences: Information Target audience (see chapter) Shipping agent Installer Maintenance staff User Transport and storage Assembly and installation Commissioning Maintenance Troubleshooting Decommissioning Copyright © 2024 ves-artex.com| All Rights Reserved | V2 CONFIDENTIAL... -
Page 5: Safety Precautions
Read and understand this manual before installing or servicing your VES-Artex product. For the safe handling of VES-Artex products, you will find the following safety words: DANGER, WARNING, CAUTION, and NOTICE throughout this manual. These will identify safety levels as described below. Failure to obey the safety measures may result in death, serious injury, or damage to the product. -
Page 6: Unpacking
Lift or ladder if applicable Hoisting chain • • P3 drill bit Drill • Pen or marker • • Tape measurer Instructions Remove plastic and bubble wrap from the shutter before use. Copyright © 2024 ves-artex.com| All Rights Reserved | V2 CONFIDENTIAL... -
Page 7: Handling
Use 2x8s for the AFR fan. b. No additional framing is needed for the AFRV fan. 3. Utilize a tape measurer to find the middle point of the rough opening and the bottom door seal. Copyright © 2024 ves-artex.com| All Rights Reserved | V2 CONFIDENTIAL... - Page 8 5. Mark the frame 2” below the opening edge at the middle point. 6. Align the midpoint mark on the bottom door seal to the mark you created on the frame. 7. Ensure the door seal is level. Copyright © 2024 ves-artex.com| All Rights Reserved | V2 CONFIDENTIAL...
- Page 9 For a steel frame, please pre-drill the holes into the door seal. 9. Identify the right and left sided door tracks and position them on their specific side of the rough opening. Copyright © 2024 ves-artex.com| All Rights Reserved | V2 CONFIDENTIAL...
- Page 10 12. Utilize a power drill and the included hardware bolts (four bolts) to mount the side track to the frame. a. You will need to pre-drill the holes if mounting to a steel frame. Copyright © 2024 ves-artex.com| All Rights Reserved | V2 CONFIDENTIAL...
- Page 11 15. Remove the shipping plastic from the rollup shutter. 16. Push in the alignment pin into the shutter track on both ends of the rollup shutter. 17. Insert the alignment bars into both side tracks. Copyright © 2024 ves-artex.com| All Rights Reserved | V2 CONFIDENTIAL...
- Page 12 19. A certified electrician will now review Electrical Installation for information to connect power to the shutter’s wiring. 20. Connect the shutter to a control. Note: Refer to Troubleshooting for information on manual controlling. Copyright © 2024 ves-artex.com| All Rights Reserved | V2 CONFIDENTIAL...
- Page 13 ROLLER SHUTTER 117836 | Product Manual Installation of vertically stacked Roller Shutters Copyright © 2024 ves-artex.com| All Rights Reserved | V2 CONFIDENTIAL...
-
Page 14: Electrical Installation
36” (91cm) and is 14 gauge. DANGER Any work on the device must only be carried out in a de-energized state and by qualified and skilled personnel. Copyright © 2024 ves-artex.com| All Rights Reserved | V2 CONFIDENTIAL... -
Page 15: Maintenance Schedule
6 Months summer season. WARNING To avoid shock injury or catastrophic electrical damage to VES-Artex products, do not use high-pressurized water on motor or control. Introducing pressurized water will void the warranty. Inspect shutter and tracks for any irregularities or damage. Repair or replace as needed. -
Page 16: Maintenance Guidelines
Replace the product if a part defaults or breaks. Be sure to review the warranty information to determine warranty qualifications. Purchase new items from a VES-Artex supplier by reviewing our list of certified dealers. -
Page 17: Replacement Parts
Replace the product if a part defaults or breaks. Be sure to review the warranty information to determine warranty qualifications. Purchase new items from a VES-Artex supplier by reviewing our list of certified dealers. -
Page 18: Glossary
Suffix T Turbo Cone (72” ECVS and 72” ECVD series only) Suffix V Designates a fan model using the GenV housing shape (72” AFR Direct Drive and 36” fans only) Copyright © 2024 ves-artex.com| All Rights Reserved | V2 CONFIDENTIAL... -
Page 19: Warranty
BEYOND THE DESCRIPTION ON THE FACE HEREOF. See any updated warranty and policy information on the VES-Artex website: www.ves-artex.com/ves-artex-warranty/. Please note, labor for warranty repairs must be pre-approved by VES-Artex before labor begins. Copyright © 2024 ves-artex.com| All Rights Reserved | V2 CONFIDENTIAL...
