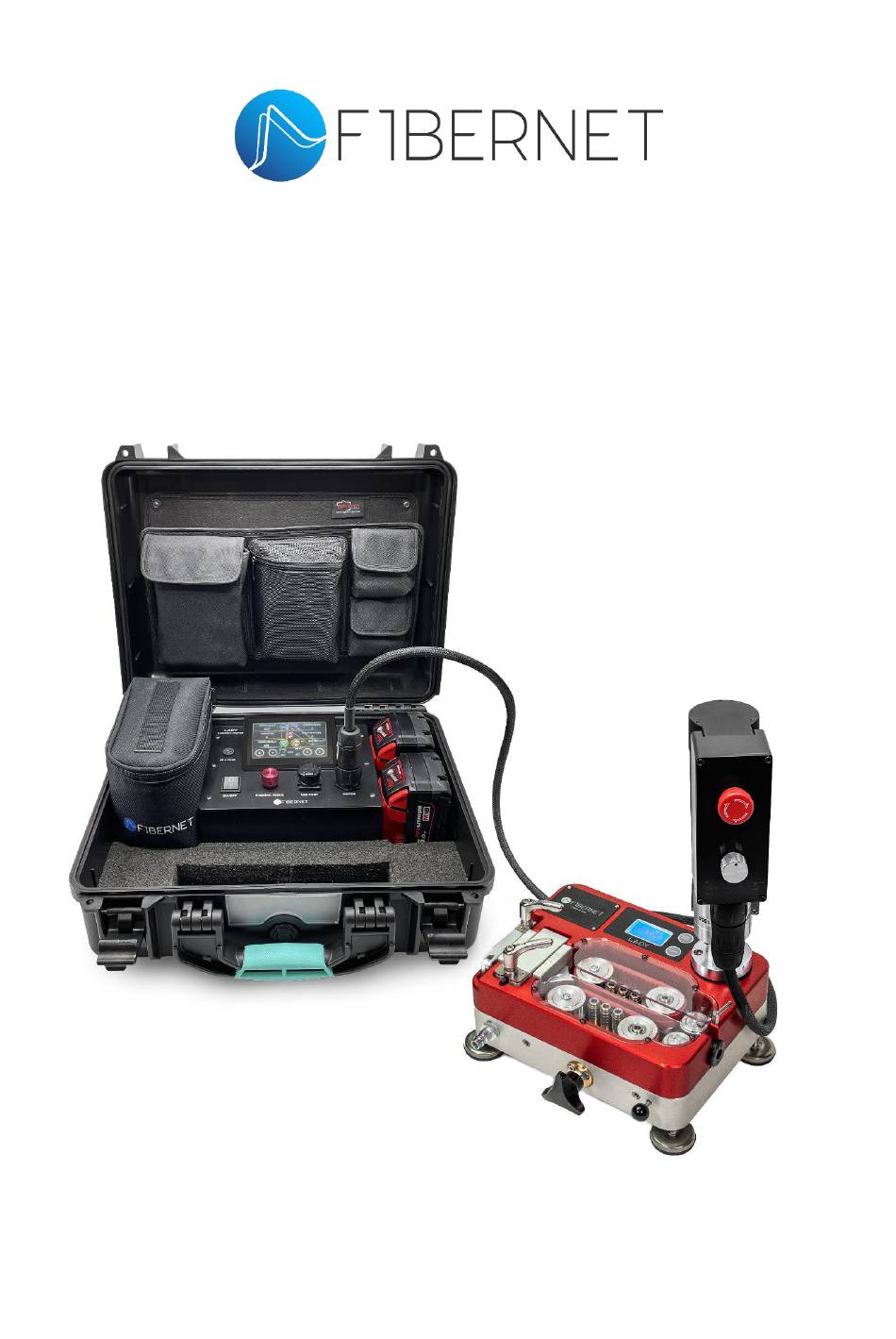

LADY ELECTRIC MOTOR
User & maintenance manual
Ver.2.0 – March 01, 2024
Fibernet srl
www.fibernet.it

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LADY ELECTRIC MOTOR and is the answer not in the manual?

Questions and answers

Summary of Contents for FIBERNET LADY ELECTRIC MOTOR

  • Page 1 LADY ELECTRIC MOTOR User & maintenance manual Ver.2.0 – March 01, 2024 Fibernet srl www.fibernet.it...
  • Page 2: Table Of Contents

    INDEX GENERAL ................................. 4 TECHNICAL CHARACTERISTICS ........................5 PRODUCT CONFIGURATION ........................6 2.1. 2.2. ACCESSORY KIT ............................7 OPERATING INSTRUCTIONS ......................... 8 3.1. PRELIMINARY OPERATIONS ........................8 LAYING PROCEDURE ..........................10 3.2. DISPLAY INFORMATION ..........................11 ALARM MANAGEMENT ..........................13 5.1. MAXIMUM THRUST REACHED – CODE 3010 ..................13 5.2.
  • Page 3: Safety Rules

    SAFETY RULES Before performing any type of alteration and/or maintenance, make sure to have previously switched off the machine, removed the batteries and the USB cable. Before operating, make sure to have set and fixed the device on a solid surface. Check that the blowing machine is correctly connected to the minitube and that the cable is properly positioned between the two drive belts.
  • Page 4: General

    This electric motor specifically designed to work in combination with the Lady cable jetting machine, is entirely developed and manufactured by Fibernet Srl. It is a compact, easy-to -use and technologically advanced power source for blowing cables inside mini ducts.
  • Page 5: Technical Characteristics

    2. TECHNICAL CHARACTERISTICS Here below a list of the main features: Weight: approximately 10.7 kg • Compact dimensions: 410 x 340 x 200 mm • Operating temperature -10 °C / +45 °C • 3,5’’ TFT Capacitive Touch Screen Display with operative information (Speed, Meter Counter, •...
  • Page 6: Product Configuration

    USER MANUAL LADY ELECTRIC MOTOR 2.1. PRODUCT CONFIGURATION Below listed the main electric motor constituent parts (Figure 2.) Figure 2: Components and description.
  • Page 7: Accessory Kit

    2.2. ACCESSORY KIT The device is provided with the following accessories*: Description Quantity Pictures USB cable (1.5 meter) Milwaukee Lithium Battery M18 5 Ah Milwaukee Battery Charger Battery Charger Bag Table 1: Accessory Kit. * On request, the motor can be also provided without the batteries and the charger.
  • Page 8: Operating Instructions

    USER MANUAL LADY ELECTRIC MOTOR 3. OPERATING INSTRUCTIONS Listed below the procedures to follow for a proper machine use devided in: Preliminary operations • Laying Procedure • 3.1. PRELIMINARY OPERATIONS BEFORE GETTING STARTED IT IS RECOMMENDED TO VERIFY THAT THE BATTERY CHARGE LEVEL IS SUFFICIENT.
  • Page 9 Turn on the Lady cable jetting machine using the ON/OFF button. e. Turn on the Lady Electric Motor using the ON/OFF Switch (7). THE FOLLOWING STEPS NEED TO BE DONE ONLY THE FIRST TIME YOU TURN ON THE DEVICE OR IF A DIFFERENT VERSION OF THE LADY CABLE JETTING MACHINE IS USED.
  • Page 10: Laying Procedure

    Verify that the Lady cable jetting machine is ready. c. Start laying the cable by rotating the Speed Knob (12) to the desired speed. Figure 6: Lady Electric Motor Display d. Check the major parameters on the display during the laying process.
  • Page 11: Display Information

    4. DISPLAY INFORMATION In Figure 7 the detailed information shown on display Figure 7: configuration of the Display Position Name Description Distance laid Shows the distance expressed in meters since last Lady’s reset Speed Shows blowing speed expressed in m/min Thrust Shows the actual pushing force applied to the cable Shows the maximum allowed pushing force applied to the cable,...
  • Page 12 USER MANUAL LADY ELECTRIC MOTOR GREEN LIGHT: THIS COLOR INDICATES THAT THE MOTOR IS PUSHING THE CABLE FORWARD. BLUE LIGHT: THIS COLOR INDICATES THAT THE ELECTRIC MOTOR IS SET TO PULL THE CABLE BACKWARDS. KEEP THE BOTTON PRESSED FOR 3 SECONDS TO CHANGE THE DIRECTION.
  • Page 13: Alarm Management

    5. ALARM MANAGEMENT During operations different types of alarm and pop-up might occur. According to the type of error, there are different solutions that can be adopted. 5.1. MAXIMUM THRUST REACHED – CODE 3010 If the maximum set thrust is reached during the laying process and the cable is blocked for more than 2 seconds, the Error Code 3010 will appear on the screen, as showed in figure 8.
  • Page 14: Stop Command Received - Code: 300

    USER MANUAL LADY ELECTRIC MOTOR 5.2. STOP COMMAND RECEIVED – CODE: 300 During the laying process if the “Stop” Button (7) on the motor display or the Emergency Stop in the App is pressed, the Error Code 300 occurs, as showed in figure 9.
  • Page 15: Max Slip Alarm - Code: 300

    5.3. MAX SLIP ALARM – CODE: 300 The electric motor allows the operator to understand if there is a difference between the speed of the cable blown (measured by the countermeter on the Lady machine) and the speed of the electric motor itself.
  • Page 16: Generic Error - Code: Xxxx

    Error Code XXXX appears, as showed in figure 11. Figure 11: Generic error. To try solving the problem, restart the device using the ON/OFF (7) switch. If the problem persists, please contact Fibernet Assistance (Ph.: +39 06 90405039) and communicate the error code displayed.
  • Page 17: Maintenance

    In case the display or other parts of the device need to be cleaned, use just a wet cloth and avoid aggressive cleaners or polishing solutions. FIBERNET SRL Headquarters: Via degli Olmetti,18 – 00060 Formello (RM) - Italy Share Capital € 100.000,00 - P.I. e C.F.: 06557181002 - Tel. +39 06 90405039 www.fibernet.it; E mail: info@fibernet.it...
  • Page 18 USER MANUAL LADY ELECTRIC MOTOR...
