C-LITE C-BD-A-BP Series Installation Manual

LED BOLLARD INSTALLATION GUIDE
RISK OF FIRE, ELECTRIC SHOCK, INJURY OR PROPERTY DAMAGE.
 Risk of electric shock--Disconnect power to equipment before installing or servicing.
This equipment must be installed according to all applicable codes & ordinances.
 Installation and service of this equipment must be performed by qualified service
personnel.
 Read theses instructions before installing, servicing or maintaining this equipment.
 Save these instructions for maintaining and servicing.
 The installer must ensure that the foundation is stable and can support the luminaire´s
weight.
 The Installer must use proper means to secure the luminaire to the ground.
 Edges may cut--wear gloves while handling or servicing this equipment.
 Inspect equipment for damage from shipping and handling.
 Recommended cleaning substances:
 Wipe off dust with a dry, soft cloth. Remove greasy spots etc. with a soft cloth
dampened in lukewarm water (<122° F/ 50° C) with a mild detergent.
 Never use detergents containing abrasives and solvents.
 Warning: Scouring powder and similar substances will scratch surfaces.
WARNING
CAUTION

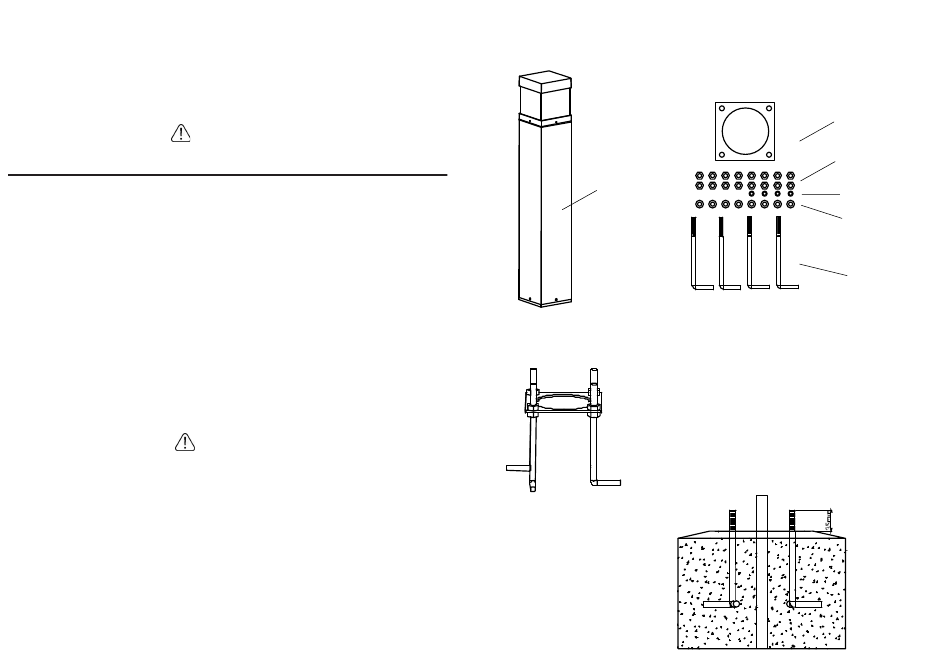

LUMINAIRE PREPARATION
Remove the luminaire (Fig 1) and accessories (Fig 2) from the carton and
inspect luminaire for damage. Do not install a damaged luminaire.
Bollard Fixture
Fig1
INSTALLING BOLLARD
 Prepare site. Get the anchor bolt carrier assembled as
Fig3 and use it to determine placement of anchor bolts
in concrete.
 Ensure that concrete base is suitable for the bollard load.
 Install four anchor bolts into concrete as per attached
drawing, having at least 1-1/2~2" protruding from concrete
with threads free and clear of debris and dirt.
Fig3
Anchor Bolt Carrier
Nut
Spring Washer
x3
Flat Washer
Anchor Bolt
Fig2
1-1/2~2"
Fig4
