Summary of Contents for SUESSCO SENSORS 3D-Sensor

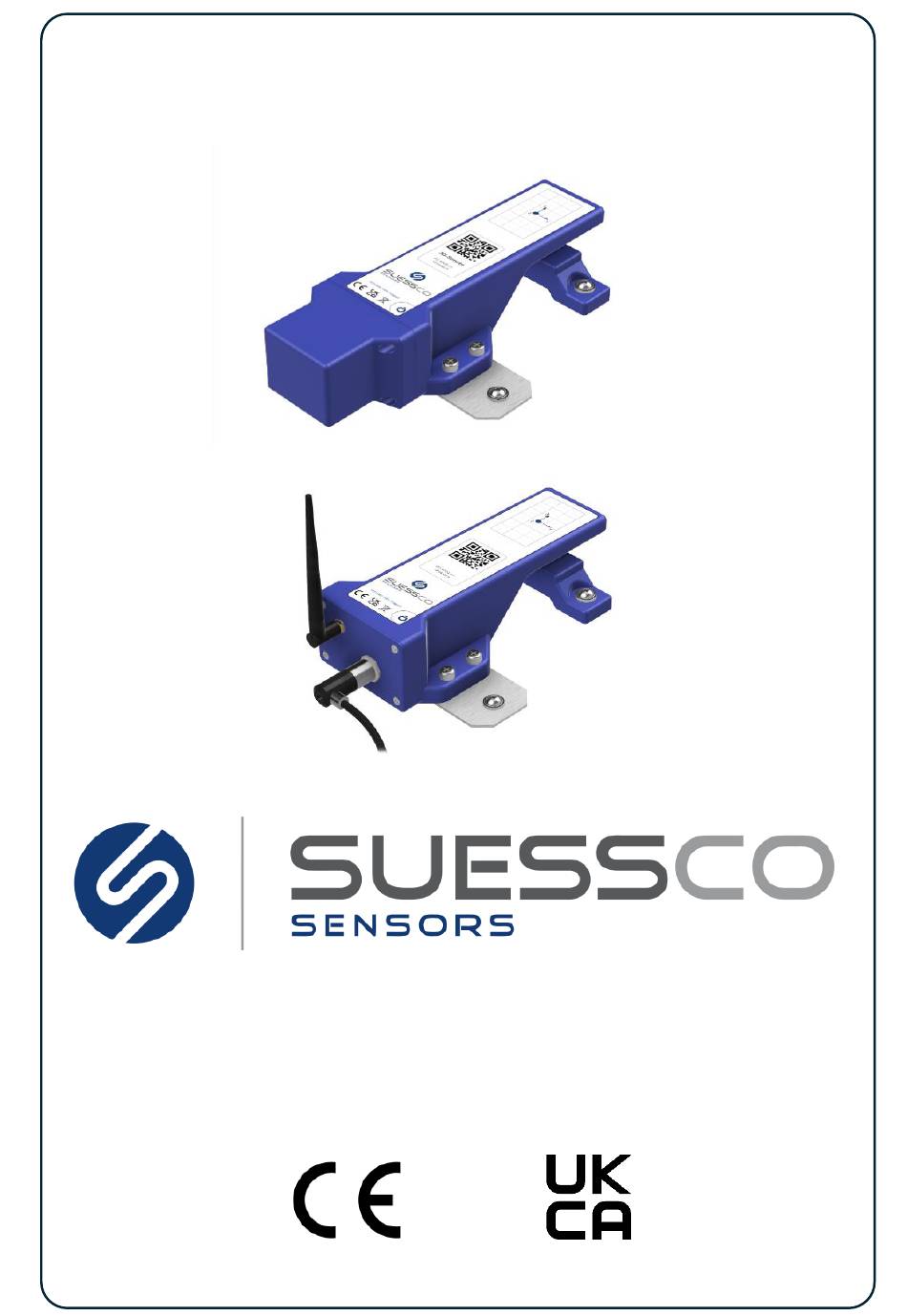

- Page 1 Operating Manual 3D- & 6D-Sensor...
-
Page 2: Table Of Contents
Dear customer! You have chosen a high-quality product with innovative and patented magnetic field technology from SuessCo Sensors. We strive for highest precision paired with efficient installation and carefree operation. We thank you for your trust and hope that the sensor meets your expectations. -
Page 3: Safety Instructions
1. Safety instructions DANGER Risk of injury from electrical components! Pay attention to electrical hazards in the area of electrical components. Only authorised and trained personnel are permitted to work on electrical components. DANGER Risk of injury on the battery box! Be aware of the dangers of incorrect handling or unauthorised access to the battery box. - Page 4 WARNING Risk of injury due to environmental influences! It is strictly forbidden to store the sensor outdoors. Always protect it from environmental influences. WARNING Fire hazard due to dirt deposits! Regularly remove dust and dirt deposits from all cable connections and cables. WARNING Risk of injury due to incorrect cleaning! Ensure that the sensor is always cleaned properly.
-
Page 5: General Provisions
2. General provisions In general, the following safety regulations and obligations apply when handling the sensor: • The sensor may only be operated if it is in perfect and clean condition. • It is prohibited to remove, modify, bypass or circumvent any protective, safety or monitoring device. -
Page 6: Scope Of Delivery
The following elements are included in the scope of delivery. Additional mounting material is required for installation. The 3D-Sensor has internal batteries and an integrated antenna. The 6D-Sensor has an external power supply, which can be obtained from your dealer. -
Page 7: Positioning The Sensor
4. Positioning the sensor The reference object b) should be positioned in the centre of the measuring range of the sensor a). Markings on the sensor tongue and the reference object indicate the centre point. 2 Example for drilling template Attention: Graphic is not true to scale. - Page 8 5. Preparation of 3D- and 6D-Sensor The sensor a) must be screwed to the mounting plate d) before installation. Use the supplied screws and washers e). 3 Installation of mounting plate 1. Ensure that the mounting plate is correctly aligned. The four bulges point in the direction of the sensor base.
-
Page 9: Installation 3D-Sensor
6. Installation 3D-Sensor 2.) Install sensor 4 1.) Install reference object Regard the measuring range The 3D-Sensor has internal batteries and an integrated antenna. The sensor can now be activated - see chapter "SuessCo Datahub" 9 / 12... -
Page 10: Installation 6D-Sensor
7. Installation 6D-Sensor 8 2.) Install 6D-Sensor 7 1.) Install reference object Regard the measuring range 10 / 12... -
Page 11: Activate 3D- And 6D-Sensor
7.1. Connections 6D-Sensor Antenna: Connect the antenna f) to the antenna connection. Power cable: Connect the sensor and the battery or power supply box using the cable provided. 10 Connectors of the 6D-Sensor 8. Activate 3D- and 6D-Sensor 11 Activation magnet on 3D- and 6D-Sensor 1. -
Page 12: Suessco Datahub
You will receive your personal access details from the dealer from whom you purchased the sensor. If you have not yet received your access details, please contact your dealer directly. For further information please visit our homepage www.suessco.com Imprint: SuessCo Sensors GmbH Wiener Strasse 6 3130 Herzogenburg Austria 12 / 12...
