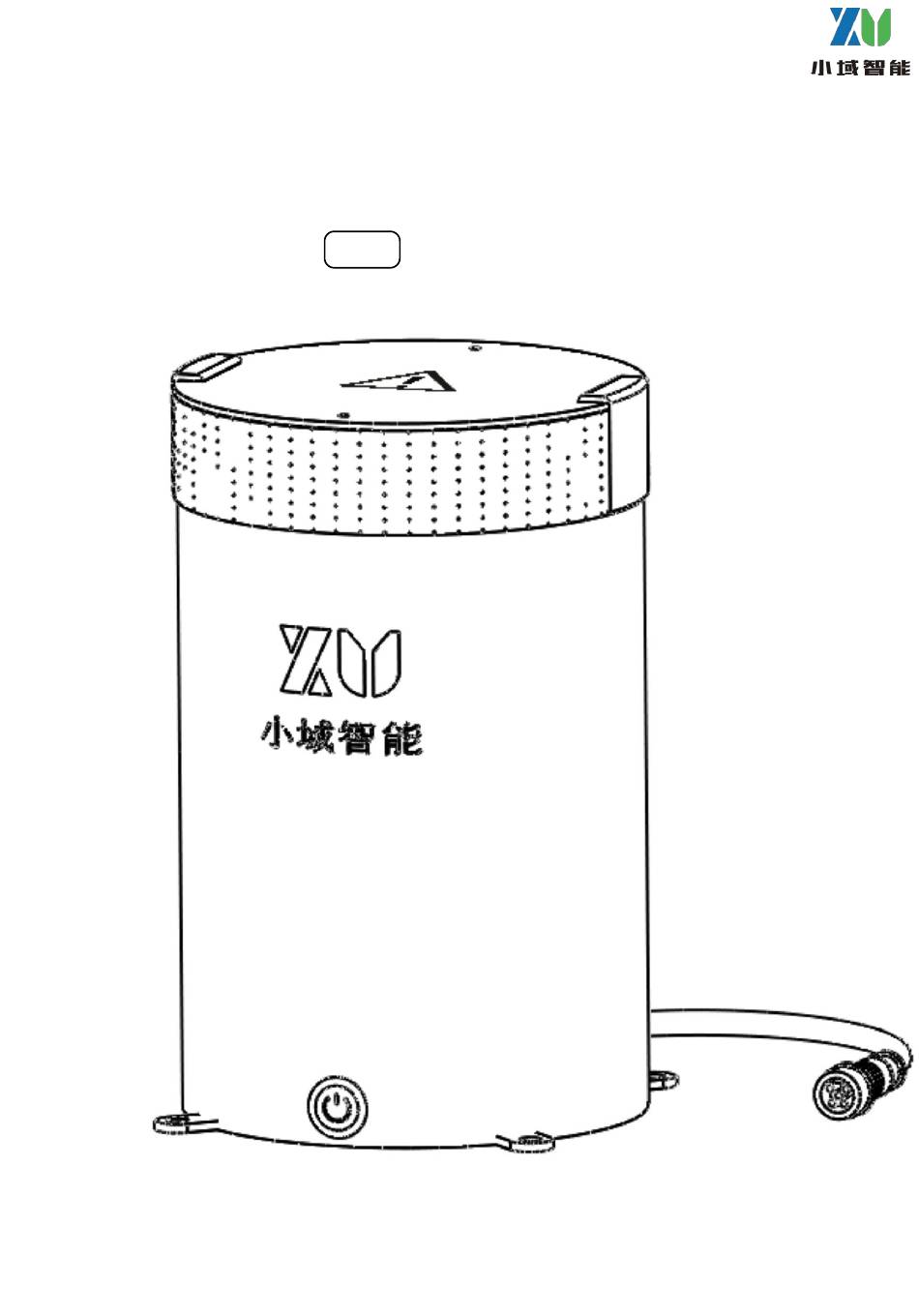

- Page 1 XYU DPS20 UAV INTELLIGENT EMERGENCY PARACHUTE LANDING SYSTEM THE USER MANUAL V1.3 2021.01.08 ©Changzhou XYU Intelligent Technology Co.
-
Page 2: How To Use
Disclaimer Thank you for purchasing XYU DPS series products. Please read this statement carefully before using it. Once used, this statement shall be deemed to be accepted and accepted in its entirety. Please follow this article to install and use the product. Changzhou XYU Intelligent Technology Co., Ltd. - Page 3 Bi-directional PWM pulse width 1000-2000us（50Hz，1750-2000us Trigger open） Power off Power on and self-working Ejection way PT20 propellant Weight 550g Parachute shield folding frequency 6 months / 3 months in humid environment（regional environment） Working Temperature -10—45℃ ©Changzhou XYU Intelligent Technology Co.
- Page 4 4 groups Screw YELLOW Spanner GREEN Propellant WeChat scan follow XYU Product technical support and customized mailbox ：support@xyuzn.con WeChat You can go to the XYU Intelligent official website query download www.xyuzn.com the latest version: ©Changzhou XYU Intelligent Technology Co.
- Page 5 Attachment I XYU Intelligent XYU-3 communications protocol Communication Formats： 19200 baud rate，8,N,1 Data frames return in real time Stored data format Byte Byte Fix 0x00 Boot times Trigger state Trigger state Working state Working state Battery voltage，0.02V Battery voltage，0.02V Power on more than 8...
- Page 6 Step 4：Fold the parachute Step 3: Arrange the parachute to horizontally back according one side and then compress it. to "Z". ©Changzhou XYU Intelligent Technology Co.
- Page 7 Heat insulation film Step 7: Fold the parachute Step 8: Place the cord on the into cuboids and arrange the heat insulation film, then parachute rope according to place the folded parachute on the cord. "Z". ©Changzhou XYU Intelligent Technology Co.
- Page 8 Arm and mounting point Fixed rope The rope is fixed and then pulled up in The knot way for the fixed rope with a "pyramid" shape fixed points on the aircraft. ©Changzhou XYU Intelligent Technology Co.
