Summary of Contents for aotedor T550

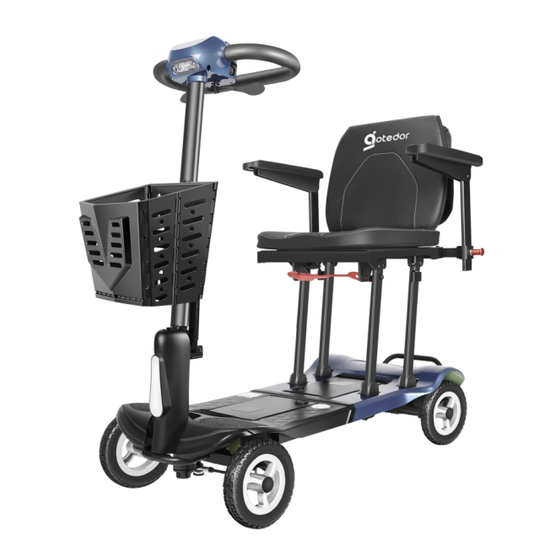

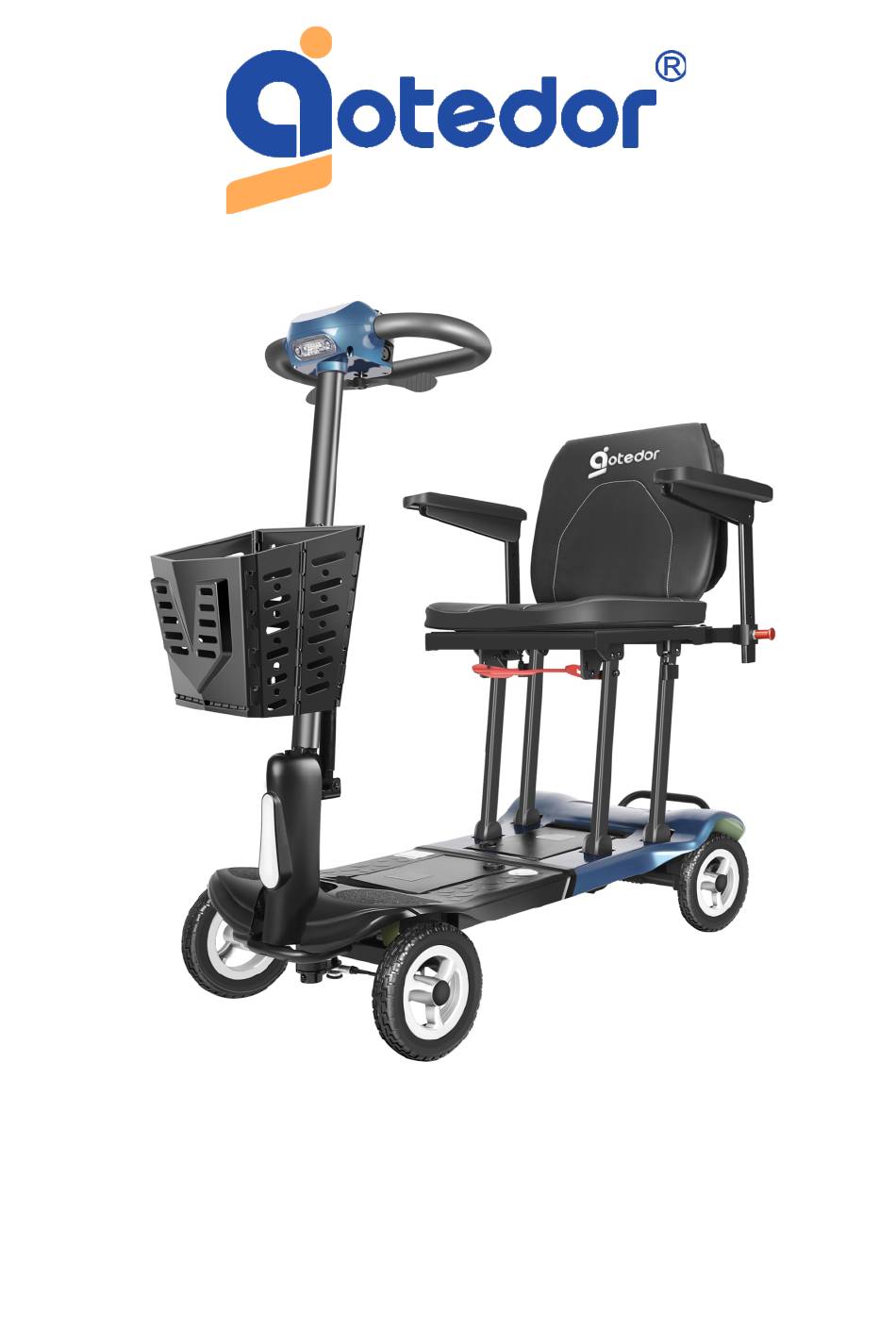

- Page 1 Model: T550 Please Read This User Manual Carefully And Save It For Future Reference.
- Page 2 Failure to pay attention to the instructions in this manual may causedamage to the scooter. We believe that T550 electric mobility scooter will not only bringcomfort and convenience to your daily activities,but also let youfeel the joy of life.
-
Page 3: Customer Service
Refer to the Help Guide Customer Service Mobile Phone: (+1) 888-817-9815 Website: aotedor.com official email address: info@aotedor.com... -
Page 4: Table Of Contents
Contents What’s in the Box? Framework Overview and Specification Operating Instructions Dashboard Fold and Unfold Mobility Scooter Adjustable Armrest Width and Height Basic Trouble Shooting Scooter Precautions and Warranty Informations... -
Page 5: What's In The Box
√ Mobility Scooters User Manual 【This Sheet】 √ Powered Mobility Scooters 【1】 √ Armrest 【2】 √ Battery Charger【1】 √ 10ah battery 【2】 √ Basket 【1】 T550 Scooter Charger Armrests Basket Lithium Battery Unpacking and Remove the Mobility Scooter 1. Cut the packing tape on only one end of the shipping box. -
Page 6: Brief Introduction
Brief Introduction Thanks for choosing our latest Powered Mobility Scooters. This model is equipped with state-of-the-art function and technology, and designed with unique features to meet your needs for the most comfortable and safe ride. Proper operating should be on the basis of thoroughly comprehending the instructions. - Page 7 Specification Model name T550 Unfolded (L x W x H)(in) 40.15 × 17.71 × 38.58 Inch Folded (L x W x H)(in) 40.15 × 17.71 × 15.74 Inch Product Weight 37.58 Lbs Weight Capacity 275 Lbs Speed 3.72 mph Battery...
-
Page 8: Operating Instructions
Operating Instructions Brake handle is on the left rear of the scooter.When the brakehandle is in the lower gear,the scooter is in a no-brake state at this time,and the scooter cannot be started,but it can be implementedmanually.It is necessary to push the brake handle upward to put it in the upper gear,at this time the scooter is in the normal state,and the scooter can be used normally. - Page 9 Remove & Install Battery Only back battery is needed for working,The front one is backup. Front and rear PU solid tires. PU 7"Solid Front Tire PU 7"Solid Rear Tire...
-
Page 10: Dashboard
Dashboard Battery indicator Speed knob Key hole LED Light button Horn button LED front light Forward Backward Charging port on scooter... -
Page 11: Fold And Unfold Mobility Scooter
Fold & Unfold Mobility Scooter Unfolding Status Folding Status Scooters may have the risks of fallingdown when standing up.Use carefully. - Page 12 Folding the Scooter 1. Turn the seat limit wrench upward and pull the seat frame forward by hand to fold the seat. Seat limit Wrench 2. Folding the backrest.The seat can be folded by pressing it down to parallel with the base of the scooter.
- Page 13 3. Press the adjusting handle nut to release the handle.Then fold the handle down into the backrest buckle. Adjusting handle nut Please note that if you push the scooter too fast while the wheels are moving freely,the scooter will slow...
-
Page 14: Adjustable Armrest Width And Height
Widen Armrest... - Page 15 Raise/Lower Armrest...
- Page 16 Fixed Armrest Tighten the screw in this position ,the armrest will be fixed at this level. Two ways of battery charging: Way 1: Plug the charger cable into the controller port to charge it directly. Way 2: Take out the lithium battery out and insert the charger cable into the battery interface.
- Page 17 Speical Note: 1. When the charger is directly charging the battery: Red light on the charger means it's charging.Green light means the battery is fully charged. 2. When charging through the dashboard: You can only charge the battery in the rear slot.Make sure there's a battery in the rear slot.
-
Page 18: Basic Trouble Shooting
Basic Trouble Shooting The Battery needs to be charged or there is a bad connection. Check the battery connections,if the battery connections are Beep good,charge the battery. There is a bad connection to the motor.Check all connection Beep between the motor and the controller. The motor has a short circuit of a battery connection. -
Page 19: Scooter Precautions And Warranty Informations
Scooter Precautions and Warranty Informations A. Scooter and battery maintenance 1. When the battery is not used,the scooter and its battery should be placed in a dryand suitable temperature environment,be sure to keep the battery dry,in harsh environmental conditions will damage the battery. 2. -
Page 20: Warranty
Warranty Order information on Amazon is the warranty credential. Please carefully keep your Amazon order number. Please keep the outer box in case of a return. Note: the following cases are not covered by our warranty. ① Fault damage caused by unauthorized disassembly,repair, modification,or abuse. - Page 21 Mobility Scooters User Manual Warranty Period: One Year Mobile Phone: (+1)888-817-9815 Email:info@aotedor.com Website:aotedor.com...
Need help?
Do you have a question about the T550 and is the answer not in the manual?
Questions and answers
My scooter turns on but won't move Brand new out of the box. Battery partially charged.
The Aotedor T550 scooter won't move if it is in a no-brake state. In this state, the scooter cannot be started even if it turns on and the battery is partially charged. To enable normal operation, the brake handle must be pushed upward into the upper gear, which puts the scooter into the normal driving condition.
This answer is automatically generated
My model t550 does not drive forward what can I do to repair it
