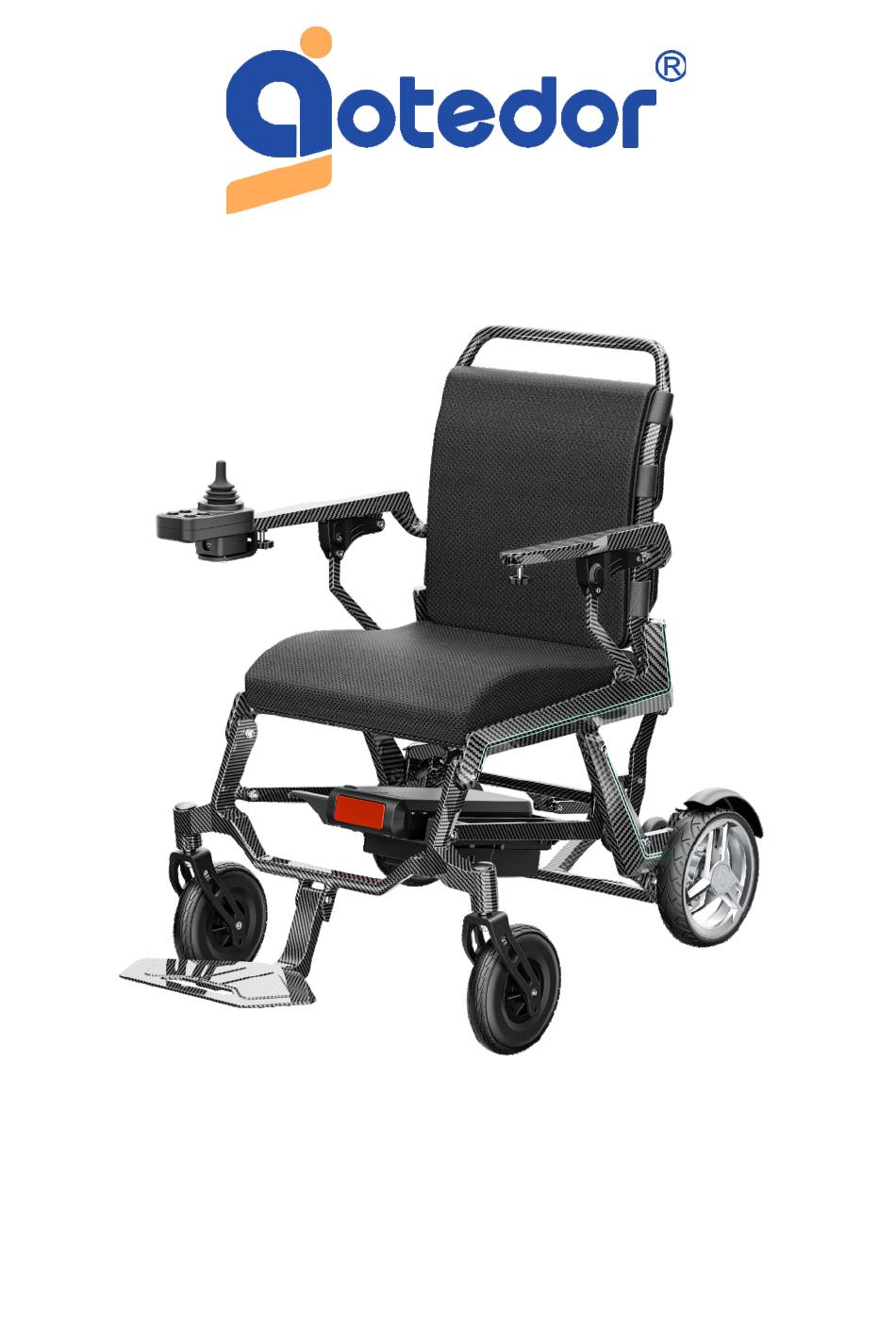

- Page 1 Model: K01 Please Read This User Manual Carefully And Save It For Future Reference.
-
Page 2: Customer Service
Refer to the Help Guide This is the Aotedor Electric Wheelchair electronic instructions and operating videos.You can use Google Drive to Scan the QR code below to access essential operating instructions on your mobile device. Customer Service If you require further information, assistance with operational issues or solutions, or if you need support, please don't hesitate to contact us via the methods below. -
Page 3: Table Of Contents
Contents Brief Introduction Specifications What's in the Box? Operation instruction Important Notifications Self-help Guidance Battery use Controller status indication Maintenance & Warranty... -
Page 4: Brief Introduction
Brief Introduction Thanks for choosing our lastest electric wheelchair. This model has been designed with your practical needs in mind, equipped with modern high-tech electronics and special features for the most comfortable ride. This manual contains important information regarding the safe use of the power wheelchair. -
Page 5: Specifications
Specification Model name Unfolded size 43.7 × 24.4 × 34.25 Inch Folded size 24.4 × 12.59 × 28.74 Inch Net weight (Not included battery) 30 Lbs Front wheel 7 Inch Rear wheel 8 Inch Weight capacity 264 Lbs Forward speed 0-6 km/h(adjustable) Range per charge 25 Miles... -
Page 6: What's In The Box
Let's Try Out Your New Electric Wheelchair What's in the Box? √ Electric Wheelchair User Manual This Booklet √ Electric Wheelchair*1 √ Batteries*2 Battery User Manual √ Controller*1 √ Battery Charger*1 √ Bluetooth remote control*1 Controller Unpacking and Setting up the Wheelchair 1. - Page 7 Unfold The Wheelchair 1. Hold the handlebar with one hand and the seat cushion frame with the other. Use both hands to force the wheelchair down until it is completely unfolded. 2. After unfolding the wheelchair, pay attention to the buckles on the left and right sides.
- Page 8 Install Controller Joystick 1. Insert the front controller to the appropriate length on the right or left armrest according to your preference,then tighten the plum nut. 2. Connect the controller's cable to the power cable.
- Page 9 Install and Remove The Battery Press the button under the battery box with your hand to separate the battery box from the frame, and pull the battery box out. Note: The wheelchair can be operated only if the button “ o” on the battery is as shown in the picture, otherwise the battery is turned off and there is no way to operate it.
- Page 10 Manual/Electric Switch It is crucial to switch the wheelchair from manual to electric mode (locked) while utilizing the electric function and while charging via the controller. Failure to do so may result in persistent alerts throughout the entire process.For detailed instructions on how to switch modes,please refer to below images.
- Page 11 Lift The Armrests Press the button on the underside of the armrests to loosen them for easy in and out from sideways. Remove the seat Cushion Velcro design is easy to remove and replace the seat cushion and backrest.
-
Page 12: Folding Your Wheelchair
Folding your wheelchair Step 1: Press this button to make the wheelchair unlocked. Step 2: Hold the handlebar with one hand and the seat cushion frame with the other. Use both hands to force the wheelchair down until it is completely folded.Up the footrest to the folded position. - Page 13 Two ways of battery charging: Way 1: Plug the charger cable into the controller port to charge it directly. Way 2: Take out the lithium battery out and insert the charger cable into the battery interface.
-
Page 14: Power Display
2 ways to control the wheelchair Way 1: Control button Joystick ON/OFF Button Horn Acceleration Deceleration Joystick: Push the rocker to control the direction and speed of the wheelchair; ON/OFF Button: power on/off when pressed; Acceleration: Increase the speed when pressed; Deceleration: Decrease the speed when pressed;... - Page 15 Way 2: Bluetooth remote control Connect Joystick Deceleration Acceleration Horn ON/OFF Button 1.Turn on the power of the electric wheelchair. Press and hold the power button on the Bluetooth remote control until the wheelchair automatically pairs. The blue light will flash during pairing and stay on when the pairing is successful.
-
Page 16: Important Notifications
Important Notifications: 1. Users and purchasers of electric wheelchairs must operate these devices within electromagnetic environments. Failing to do so may result in mal- functionality of the electric wheelchair. 2. Please be aware that the use of portable and mobile radio frequency communication equipment may interfere with the normal operation of electric wheelchairs. - Page 17 Notice Do not carry passengers. Do not drive across a slope. Do not drive under the influence of alcohol. Do not tailgate another vehicle. Do not operate hand-held communication devices such as radios or mobile phones. Do not exceed the safe climbing maximum angle. Do not use the joystick in an erratic manner when going up or downhill.
- Page 18 Reminder! When using an electric wheelchair, the driver must follow all the rules and regulations of the road.
- Page 19 Precautions when driving on slopes: Driving on a slope is much more dangerous than driving on a flat surface. Please note the following as falling or losing control will result in serious harm to users and others.
-
Page 20: Self-Help Guidance
Self-help Guidance Operations of the controller ①.Do not shake the controller forcefully, especially the joystick. ②.Do not break the controller and the joystick while driving. ③.Do not damage the controller. ④.Make sure the control system is safe and reliable when operating the wheelchair ⑤.When parking on a slope, please keep the engine running to prevent the car from rolling away. - Page 21 Speed display (S1-S5) This display indicates the wheelchair setting. With a total of five settings, S1 is the lowest speed, and S5 is the highest. Horn Press the horn to sound an alert. Deceleration button This button reduces the speed setting gear and turns the corresponding speed indicator lights off.
- Page 22 1: Stable Power Display When the power display remains stable, it signifies that the system is operating correctly. 2: Sequential Flashing of V1 - V5 This indicates that the wheelchair is currently in the charging process. To operate the wheelchair, it's essential to unplug the charger first.
-
Page 23: Battery Use
Battery use The electric wheelchair uses a 24 voltage battery. It is a good idea to carry a replacement 24V12AH battery, in case you need to charge the one in use. This is a maintenance-free sealed lithium battery. The batteries are designed to handle deep discharges. Although they are similar in performance to car batteries, they cannot be replaced. -
Page 24: Controller Status Indication
Controller status indication Error indication Malfunction Solution All LED lights are off, Either the power is off or Check if the power plug is with no sound in standby, or the power disconnected. cord is in disconnected. All LED lights are on The power supply is The fewer lights on, the turned on and the power... -
Page 25: Maintenance &Warranty
Maintenance &Warranty Your electric wheelchair is designed to be maintenance free. However, we recommend the following checks be completed on a regular basis. Charger: The charger,a very important part of your wheelchair,provides energy to your wheelchair quickly and safely. Joystick/Controller: Ensure that the controller is kept away from the damp air as this may cause easily damage and warranty void. - Page 26 Electric Wheelchair User Manual Warranty Period: One Year Mobile Phone: (+1) 888-817-9815 Email:info@aotedor.com Website:aotedor.com...
