Summary of Contents for Antylia Scientific Cole-Parmer VP-200 Series
- Page 1 VP-200 SERIES VACUUM/PRESSURE PUMP INSTRUCTION MANUAL...
- Page 2 SAVE THESE INSTRUCTIONS To reduce the risks of fire or explosion, electrical shock, and the injury to persons, read and understand all instructions included in this manual.

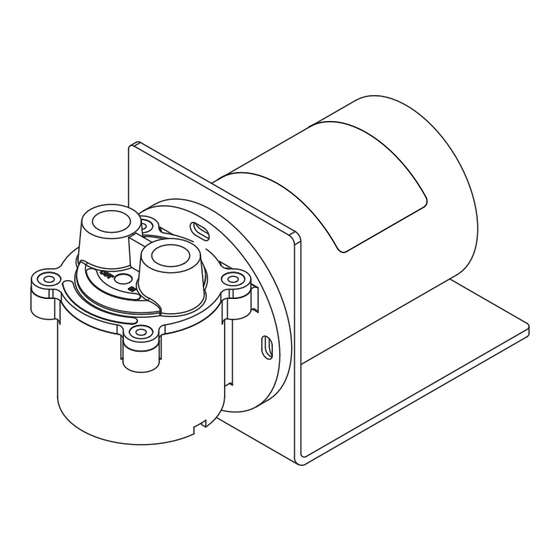

- Page 3 PRESSURE (OUTLET) MOTOR VACUUM (INLET) VP-200 Series Vacuum/Pressure Pump (07532-25)
-
Page 4: Table Of Contents
Contents SAFETY PRECAUTIONS DESCRIPTION STORAGE SPECIFICATIONS MAINTENANCE PUMP HEAD REPLACEMENT PARTS LIST SPECIAL APPLICATIONS WARRANTY VALOX is a Registered Trademark of the General Electric Company Trademarks bearing the ® symbol in this publication are registered in the US and in other countries. -
Page 5: Safety Precautions
SAFETY PRECAUTIONS DANGER: UNPLUG THE POWER CORD BEFORE ANY CLEANING OPERATION IS STARTED. CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK - USE INDOORS ONLY. WARNING: PRESSURIZED GAS SHOULD NOT BE USED FOR THE SUPPLY AS A HAZARDOUS BURSTING CONDITION COULD DEVELOP IN THE PUMP HEAD. -
Page 6: Description
DESCRIPTION The diaphragm-operated Vacuum/Pressure Pump is designed for pressure, suction and gas circulating applications. The convoluted diaphragm and the unique pump cavity are designed to provide pressure and vacuum characteristics. The media being pumped will come in contact with VALOX ®... - Page 7 OPERATING INSTRUCTIONS Model 07532-25 is supplied with two leads that are eight inches in length and stripped 1/2” at the ends. Please note: This motor, when operated as outlined in this manual, will have hot surfaces. This condition is normal. CAUTION: HOT SURFACE.
-
Page 8: Storage
STORAGE When the pump is not in use, store it in a clean, dry area. If ports on the pump are open, cover them to keep dust and dirt from entering. Wipe the power cord down with a dry towel and inspect for cracks in the insulation after each use. -
Page 9: Maintenance
PUMP HEAD MOTOR DIAPHRAGM PUMP HOUSING ECCENTRIC ASSEMBLY COVER BOTTOM Figure 1 - Pump Main Components Diagram MAINTENANCE DANGER: UNPLUG POWER CORD BEFORE ANY CLEANING OPERATION IS STARTED. For diaphragm replacement: diaphragm is replaced. This ensures new, clean valves and Proper assembly (factory-adjusted) is critical for proper pump performance. -
Page 10: Pump Head Replacement Parts List
PUMP HEAD REPLACEMENT PARTS LIST Item Part No. Service Kit 07531-99 (FKM diaphragm, two retainers, two valves and plastic head) Service Kit replacement 07531-98 (FKM diaphragm) Service Kit Eccentric Assembly 07530-75 (Eccentric and bearing) Service Kit Housing 07530-78 Service Kit Diaphragm Shaft 07530-79 Service Kit Cover Bottom 07530-83... -
Page 11: Warranty
WARRANTY This product is warranted against defects in material or workmanship, and at the option of the manufacturer or distributor, any defective product will be repaired or replaced at no charge, or the purchase price will be refunded to the purchaser, provided that: (a) the warranty claim is made in writing within the period of time or receipted invoice is submitted concurrently with the claim and shows that the product is within the applicable warranty period, and... -
Page 12: Product Return
PRODUCT RETURN To limit charges and delays, contact the seller or Manufacturer product, either within or outside of the warranty period. When returning the product, please state the reason for the return. For your protection, pack the product carefully and insure it against possible damage or loss.
