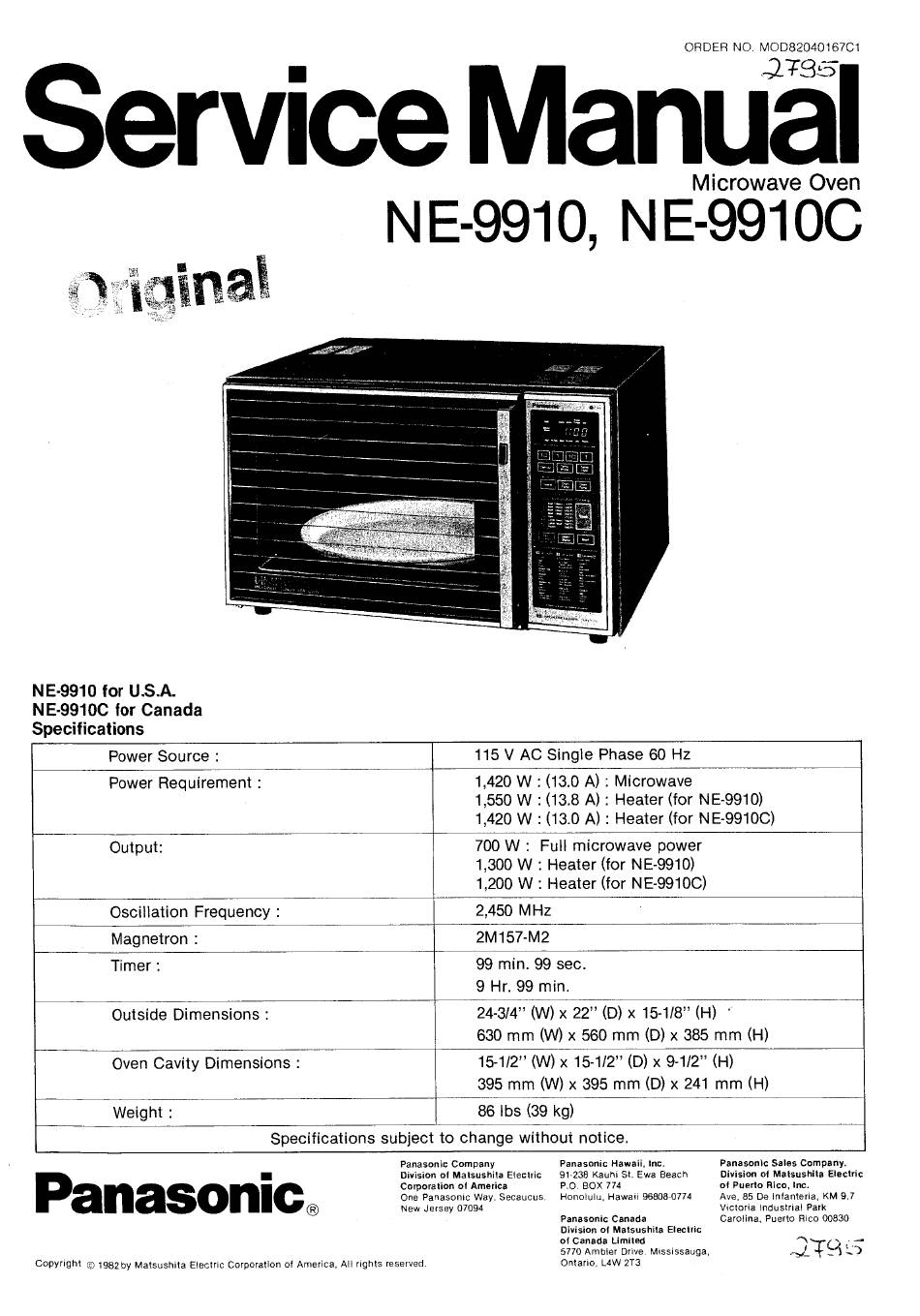

Panasonic NE-9910 Service Manual

ORDER NO. MOD82040167C1

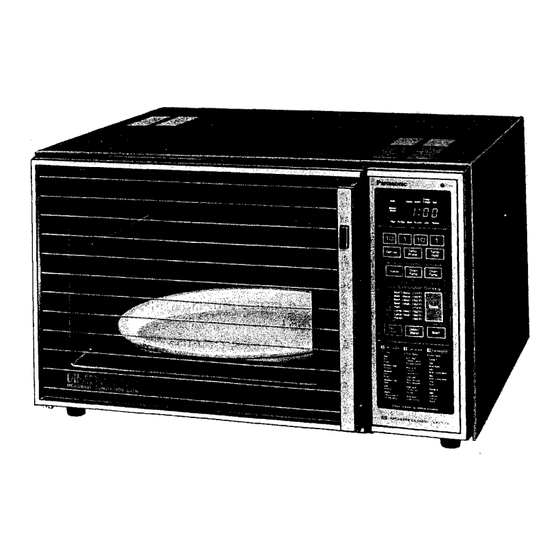

Microwave Oven
NE-9910, NE-9910C
NE-9910 for U.S.A.
NE-9910C for Canada
Specifications
Power Source : 115 V AC Single Phase 60 Hz
Power Requirement : 1,420 W : (13.0 A) : Microwave
1,550 W : (13.8 A) : Heater (for NE-9910)
1,420 W : (13.0 A) : Heater (for NE-9910C)
Output: . 700 W: Full microwave power
1,300 W : Heater (for NE-9910)
1,200 W : Heater (for NE-9910C)
Oscillation Frequency : 2,450 MHz
Magnetron : 2M157-M2
Timer : 99 min. 99 sec.
9 Hr. 99 min.
Outside Dimensions : 24-3/4" (W) x 22" (D) x 15-1/8" (H) *
630 mm (W) x 560 mm (D) x 385 mm (H)
Oven Cavity Dimensions : 15-1/2" (W) x 15-1/2" (D) x 9-1/2" (H)
395 mm (W) x 395 mm (D) x 241 mm (H)
Weight : 86 Ibs (39 kg)
Specifications subject to change without notice.
Panasonic Company Panasonic Hawaii, tnc. Panasonic Sales Company.
i | Division of Matsushita Electric 91-238 Kauhi St. Ewa Beach Division of Matsushita Electric
Corporation of America P.O. BOX 774 of Puerto Rico, Inc.
anasonic One Panasonic Way. Secaucus. Honolulu, Hawaii 96808-0774 Ave, 85 De Infanteria, KM 9.7
® New Jersey 07094 Victoria Industrial Park
Panasonic Canada Carolina, Puerto Rico 00830
Division of Matsushita Electric
of Canada Limited VIO =
5770 Ambler Drive. Mississauga, eed EONRD
Copyright © 1982 by Matsushita Electric Corporation of America, All rights reserved. Ontario, L4W 2T3
