Members Mark C08PC1
Owner's Manual
Shop genuine replacement parts for Members Mark
C08PC1
Find Your Members Mark Grill Parts - Select From 133 Models
-------- Manual continues below --------
Advertisement
Summary of Contents for Members Mark C08PC1

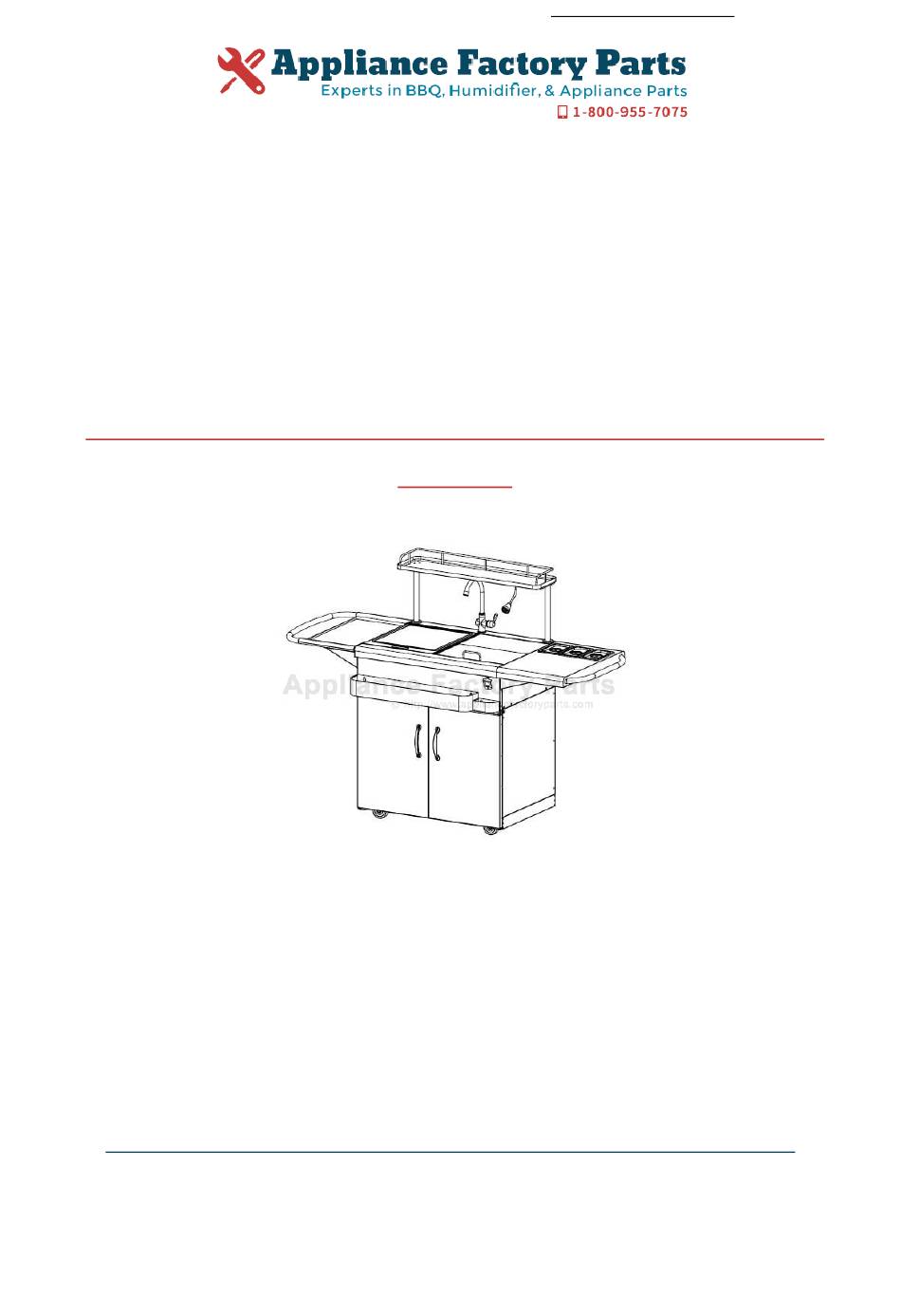

- Page 1 This Owner's Manual is provided and hosted by Appliance Factory Parts. Members Mark C08PC1 Owner's Manual Shop genuine replacement parts for Members Mark C08PC1 Find Your Members Mark Grill Parts - Select From 133 Models -------- Manual continues below --------...
- Page 2 Party Cart Guide For Model C08PC1 Stop! Missing a part? No need to go back to SAM'S CLUB! SAM'S CLUB does not stock parts for this item at the Club, but our team is here to help you. If you need parts, whether they are missing or damaged, 1-800-933-0527.
-
Page 3: Limited Warranty
TO THE INSTALLER OR PERSON ASSEMBLYING THIS CART: Leave this Guide with the consumer. TO THE CONSUMER: Retain this Guide for future reference. Limited Warranty The manufacturer warrants to the original maintenance, discoloration, scratches, rust, consumer-purchaser that this product shall be accident, damage arising out of transportation of free from defects in workmanship and materials the product, or normal wear and tear. - Page 5 WARNING Always wear protective gloves when assembling your cart.
- Page 6 STEP 1 Place the Cabinet Bottom Panel (12) upside down and use 16pcs M6*16 (A) bolts to attach two Locking Swivel Casters (16) and two Swivel Casters (17) to the cabinet bottom panel as shown. Note that the Locking Casters go on the back of the panel. STEP 2 Turn the Cabinet Bottom Panel over and use 3pcs M4*10 (B) bolts to attach Cabinet Left Side Panel (9) to the Cabinet Bottom Panel.
- Page 7 STEP 3 Attach Cabinet Back Panel (8) and Cabinet Left Side Panel using 3pcs M4*10 (B) bolts as shown. STEP 4 Attach Cabinet Back Panel and Cabinet Right Side Panel (10) using 3pcs M4*10 (B) bolts as shown.
- Page 8 STEP 5 Attach Cabinet Back Panel and Cabinet Right Side Panel to the Cabinet Bottom Panel from inside of the cabinet using 6pcs M4*10 (B) bolts as shown. STEP 6 Attach Crossbar (11) to the lower holes of Cabinet Left Side Panel and Cabinet Right Side Panel using 2pcs M4*10 (B) bolts as shown.
- Page 9 STEP 7 Attach Cabinet Door Right and Left Supports (D) to the Cabinet Left Side Panel and Cabinet Right Side Panel using 4pcs M4*10 (B) bolts as shown. STEP 8 Remove sinks from the Sink Frame Assembly (1).
- Page 10 STEP 9 Place Sink Frame Assembly onto the cabinet and use 9pcs M4*10 (B) bolts to attach Sink Frame Assembly to the cabinet. Note: Do not tighten all the bolts until you line up the holes of the Sink Frame with the holes of the Cabinet.
- Page 11 STEP 11 Attach the Faucet Hose (13) to the bottom of the Faucet Assembly and to the end of the Brass Male Fitting as shown. STEP 12 Unscrew the tops from the bottoms of the two Drain Hose Connecters (32). Attach the connectors to the sink as shown.
- Page 12 STEP 13 Connect an end of each hose to the drain of each sink. Then hang the lower portion of the Drain Hose (7) through the hose guide on the back panel of the cabinet as shown. Run the drain hose out of the cabinet through the lower hole in the back of the cabinet.
- Page 13 STEP 15 Slide the two Organizer Baskets (15) into the Organizer Basket Support as shown. STEP 16 Attach Top Shelf Supports(R/L) (21) to the sink rear-top panel using 6pcs M4*10 (B) bolts as shown.
- Page 14 STEP 17 Attach Top Shelf (23) to the Top Shelf Supports using 6pcs M4*10 bolts (B). Place the Top Shelf Railing (22) on the Top Self ensuring its ends go into the appropriate holes in the Top Shelf. STEP 18 Place Cutting Board (3) and Sink Cover Assembly (2) onto each sink as shown.
- Page 15 STEP 19 Screw Door Handles (18) to the Right and Left Doors (19 & 20) using 4pcs M4*6 (C) bolts as shown. STEP 20 Place the bottom door pins into the door bottom supports on the Cabinet Bottom Panel and push down on top pins to insert the doors into the cabinet as shown.
- Page 16 STEP 21 Place the three Batteries (F) into the battery box. Ensure all of them face the correct direction. Then place the LED Spotlight (24) onto the bottom of the Top Shelf. You can move it to your preferred position. STEP 22 Hang the Bottle Rack (5) and Bottle Cap Catcher (6) on the four bolts screwed into the sink front panel.
- Page 17 STEP 23 Attach the Side Shelf Handle (26) to the Side Shelf (27) using 2pcs M6*16 (A) bolts. STEP 24 Attach Side Shelf Front and Back Supports (25) to the Side Shelf using 4pcs M4*10 (B) bolts.
- Page 18 STEP 25 Loosen the two bolts shown on the right side of the Sink Frame Assembly leaving 1/4” extending out to hang the Side Shelf Front and Back Supports over. Use 6pcs M6*16 (A) bolts to attach it to the sink right side panel and tighten the original two top bolts. STEP 26 Insert the 3 Condiment Pans (28) into the Side Shelf.
- Page 19 STEP 27 Attach Towel Bar Handle (30) to its Front and Back Supports (29) using 2 M4*10 (B) bolts. STEP 28 Loosen the two bolts shown on the left side of the Sink Frame Assembly leaving 1/4” extending out to hang the Towel Bar Handle Front and Back Supports over. Use 6pcs M6*16 (A) bolts to attach it to the sink left side panel and tighten the original two top bolts.
- Page 20 STEP 29 Place the Serving Tray (31) onto the Towel Bar Handle as shown. STEP 30 Remove any additional labels or packing material from the Party Cart. Congratulations! Your Party Cart is now assembled and ready for use...
- Page 21 Party Cart Use and Care Information Feature Information • Dual Sinks – may be used as traditional sinks or can be filled with ice to keep beverages or foods chilled • PVC Cutting Board – allows for food preparation without worry of scratching the cart surface. Doubles as a cover for one sink to provide additional countertop space.
